Summary of Contents for Breezesta PT-0600

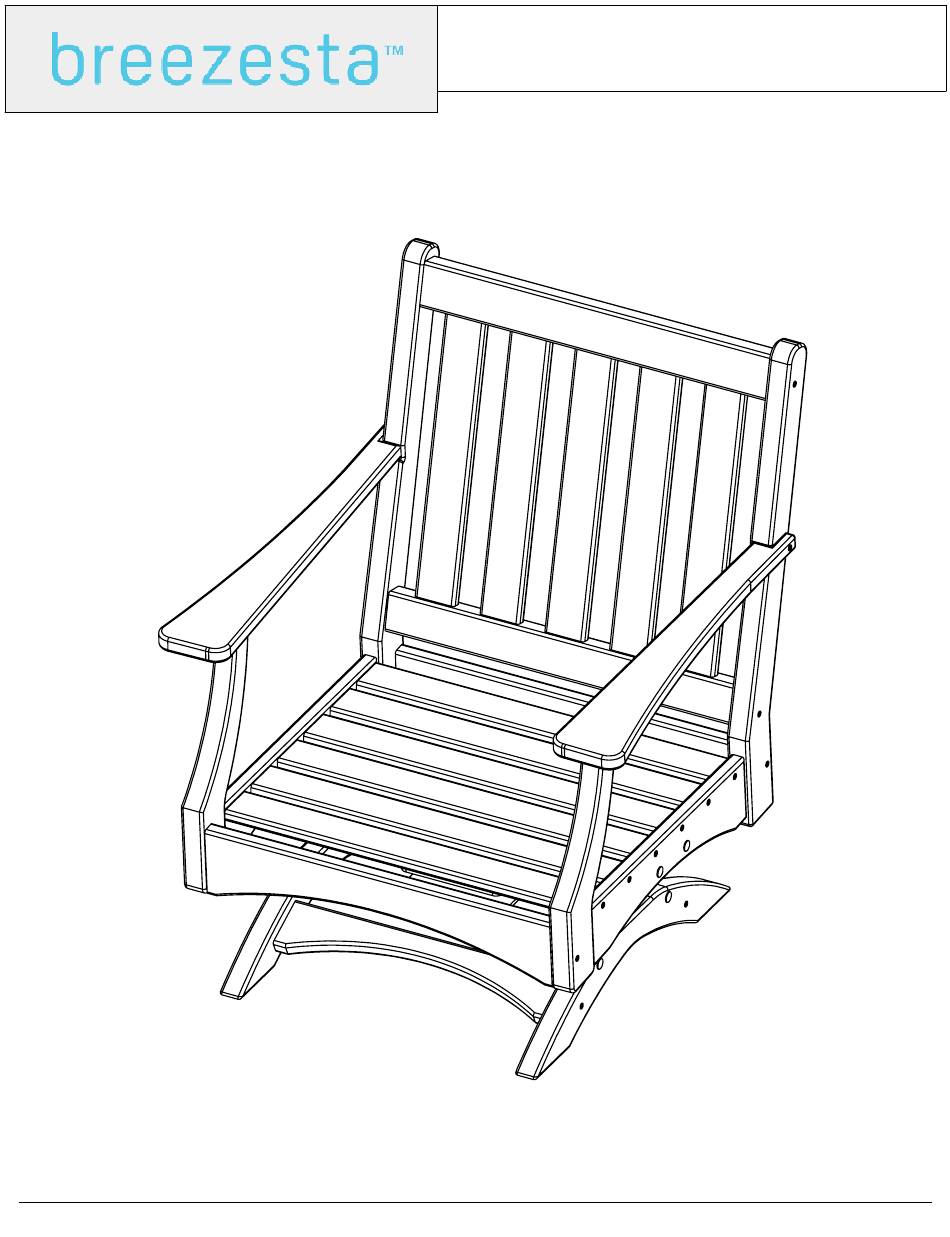

- Page 1 PIEDMONT CLUB SWIVEL ROCKER PT-0600 REV06 - 02/2020 PT-0600 Assembly...
- Page 2 H-0000-S815 #8 X 2-1/2" TORX SCREW H-0000-S825 1" HEX BOLT 5/16" DIA H-0000-HB1 1-1/2" HEX BOLT 5/16" DIA H-0000-HB15 T20 & T25 TORX BIT H-0000-CTD H-0000-SRA3C SWIVEL ROCKER CLUB ASSEMBLY-GEN3 Suggested Tools: Drill, Plastic Mallet, 1/2" Socket Wrench PT-0600 Assembly...
- Page 3 Starting closest to the back, place Parts F into the mortises of Parts A & B, finishing with Part H. Attach part F with hardware a, attach Part H with hardware b. Attach Parts D to Parts C using Hardware b PT-0600 Assembly...
- Page 4 If the chair feels like it leans too far back, you can loosen the four bolts and slide it to a comfortable position. Attach the base assembly from Step 3 to the swivel brackets using Hardware d. PT-0600 Assembly...
