Summary of Contents for Breezesta PB-1607

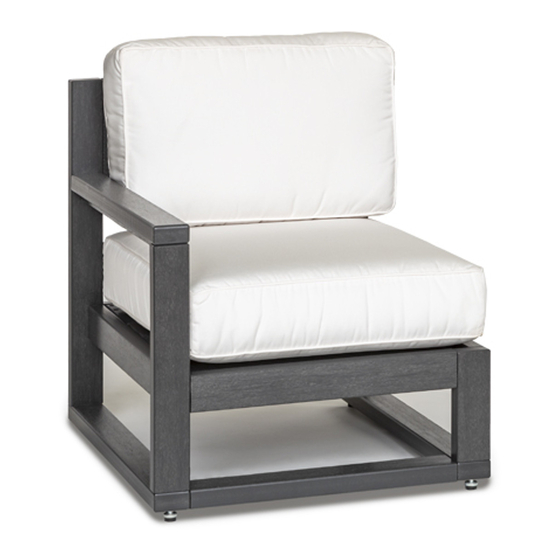

- Page 1 PALM BEACH LEFTHAND ARM LOUNGE CHAIR PB-1607 PB-1607 Assembly...
- Page 2 #8 x 2-1/2" Torx Screw H-0000-S825 1/4"-10 X 3" LAG SCREW H-0000-S103 T20 & T25 TORX BIT H-0000-CTD LEVELLING MOUNT H-0000-LM 6-INCH T20 TORX BIT H-0000-T20X6 CONNECTOR PLATE H-0000-CP #8 X 1-1/4" TORX SCREW-UNPAINTED H-0000-S8125 Suggested Tools: Drill, Plastic Mallet PB-1607 Assembly...
- Page 3 For E & F, the small board faces the inside of the seat with its overhanging end toward the armless side of the chair. PB-1607 Assembly...
- Page 4 1-1/2" of the plate to protrude from the side of the chair. Then move the next furniture piece into place and fasten the plates to it. PB-1607 Assembly...
