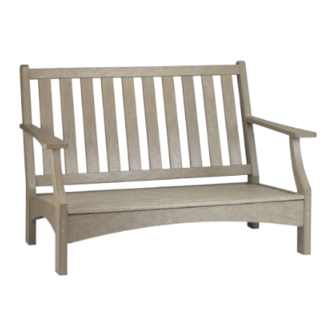

- Page 1 PIEDMONT LOVE SEAT PT-0501 REV03-11/20 PT-0501 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. LEFT ARM PRT-00454 RIGHT ARM PRT-00455 LEFT FRONT LEG PRT-00452 RIGHT FRONT LEG PRT-00453 SEAT SUPPORT PRT-00457 LEFT SIDE ASSEMBLY SA-00236 RIGHT SIDE ASSEMBLY SA-00237 BACK ASSEMBLY SA-00240 LOVE SEAT SLAT SS-48.5 LOVE SEAT FRONT SLAT SS-48 FRONT/BACK SPREADER PRT-00459...
- Page 3 Please read entire instructions before beginning Attach Part A to Part C with Hardware e by rotating Part A clockwise, stopping when the assembly is tight Repeat Step 1 with Parts B & D Connect Part F to the assembly of A & C using the hardware shown Repeat Step 3 with Part G &...
- Page 4 Connect the side assemblies, Part H, & the previous assembly using Hardware b Mortise Starting in the back, slide Parts I into the mortise & flex them to fit into the opposite mortise Repeat Step 7 with Part J Attach the other side assembly using the hardware shown PT-0501 Assembly...
