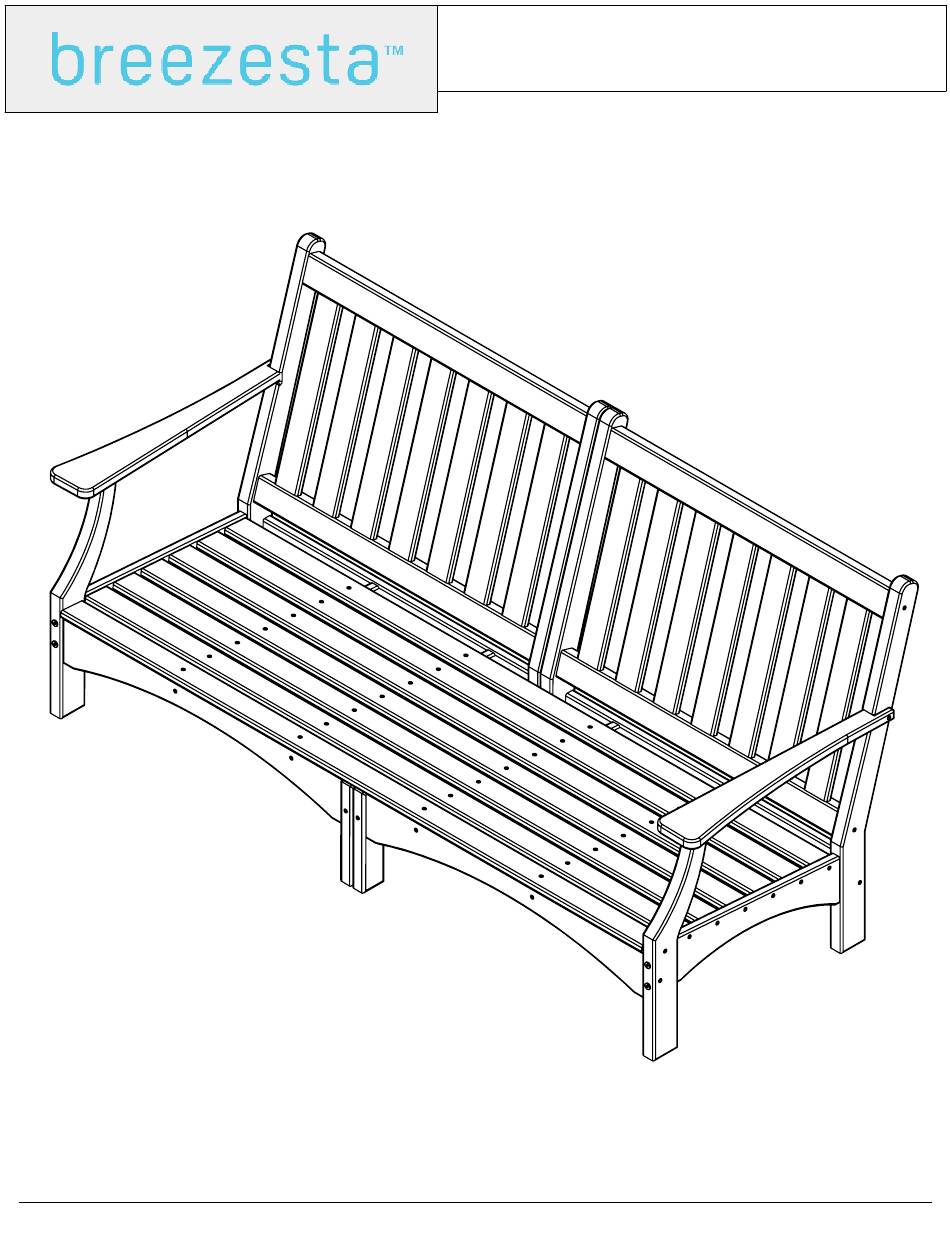

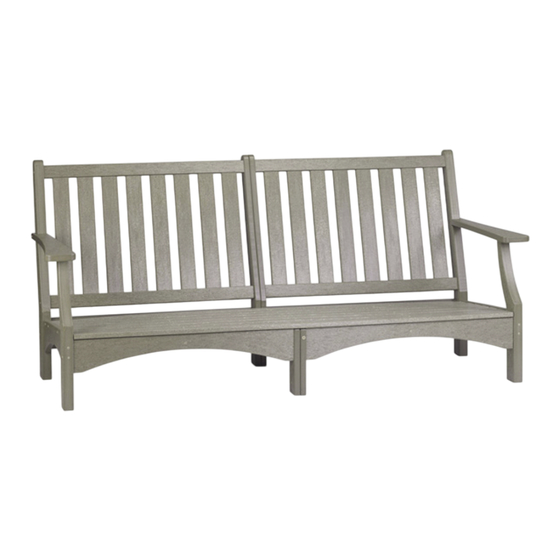

- Page 1 PIEDMONT SOFA PT-0502 REV05-10/20 PT-0502 Assembly...
-
Page 2: Right Side Assembly
PRT-00914 BACK ASSEMBLY SA-00421 SOFA FRONT SLAT SS-72 SOFA SEAT SLAT SS-72.5 FRONT/BACK SPREADER A PRT-00915 FRONT/BACK SPREADER B PRT-00916 BACK LEFT CENTER LEG PRT-00917 BACB RIGHT CENTER LEG PRT-00918 MIDDLE SPREADER PRT-00921 Suggested Tools: Drill, Plastic Mallet PT-0502 Assembly... - Page 3 Repeat Step 1 with Parts F & D Connect Part A to the assembly of E & C using the hardware shown Repeat Step 3 with Part B & the assembly of F & D PT-0502 Assembly...
- Page 4 The ends marked "C" should be away from the arm ends of the sofa Connect Parts O, Q & H using hardware c. Connect this assembly to J and the other 2 previous from Steps 3 & 5 using Hardware b. PT-0502 Assembly...
- Page 5 2 previous assemblies from Steps 4 & 6 using Hardware b. SOME ITEMS REMOVED FOR BETTER VIEW Attach the left and right halves of the sofa using Hardware b as shown in front leg in back leg SOME ITEMS REMOVED FOR BETTER VIEW PT-0502 Assembly...
- Page 6 Part K (the shorter seat slat) on the front of the assembly. Frame Color (6/Side) Slat Color Using Hardware a and b, attach parts L and K to the assembly as shown. If the sofa is two-color, use the colors specified. PT-0502 Assembly...
- Page 7 The assembly is now complete PT-0502 Assembly...
