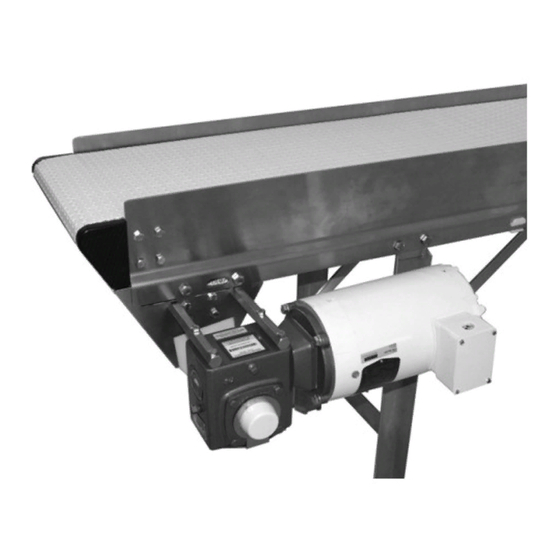

7350 Series Side Mount
Nose Bar Drive Packages
Installation, Maintenance and Parts Manual
DORNER MFG. CORP.
P.O. Box 20 • 975 Cottonwood Ave.
Hartland, WI 53029-0020 USA
851-680 Rev. A
For other service manuals visit our website at:
www.dorner.com/service_manuals.asp
INSIDE THE USA
TEL: 1-800-397-8664
FAX: 1-800-369-2440
OUTSIDE THE USA
TEL: 262-367-7600
FAX: 262-367-5827

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquaguard 7350 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dorner Aquaguard 7350 Series

Summary of Contents for Dorner Aquaguard 7350 Series

  • Page 1 7350 Series Side Mount Nose Bar Drive Packages Installation, Maintenance and Parts Manual DORNER MFG. CORP. INSIDE THE USA OUTSIDE THE USA P.O. Box 20 • 975 Cottonwood Ave. TEL: 1-800-397-8664 TEL: 262-367-7600 Hartland, WI 53029-0020 USA FAX: 1-800-369-2440 FAX: 262-367-5827 For other service manuals visit our website at: www.dorner.com/service_manuals.asp...

  • Page 2: Table Of Contents

    Installation ................7 Introduction The Dorner Limited Warranty applies. CAUTION Dorner reserves the right to make changes at any time without notice or obligation. Some illustrations may show guards removed. DO NOT operate equipment without Dorner has convenient, pre-configured kits of Key Service guards.

  • Page 3: Warnings - General Safety

    Loose garments can become caught up in the conveyor. • Failure to comply could result in serious injury. SEVERE HAZARD! • Dorner cannot control the physical WARNING installation and application of conveyors. Taking protective measures is the responsibility of the user.

  • Page 4: Product Description

    Gearmotor Mounting Package Models Conveyor Sprocket Gearmotor Sprocket Drive Position Gearmotor Size Gearmotor Type Drive Type Language * Refer to “Ordering and Specifications” Catalog for details. 7350 Series Side Mount Nose Bar Drive Packages Dorner Mfg. Corp. 851-680 Rev. A...
  • Page 5 0.74 208-230/460 3.5-3.2/1.6 53.1 74M010HS423EN 18 to 175 5.3 to 53.3 1.11 208-230/460 4.6-4.2/2.1 49.9 74M007HS423EN 23 to 233 7.1 to 71.0 1.11 208-230/460 4.6-4.2/2.1 40.7 7350 Series Side Mount Nose Bar Drive Packages 851-680 Rev. A Dorner Mfg. Corp.
  • Page 6 208-230/460 5.3-5.4/2.7 49.9 74M007HZS423EN 23 to 233 7.1 to 71.0 1.11 208-230/460 5.3-5.4/2.7 40.7 NOTE For belt speed other than those listed, contact factory for details. 7350 Series Side Mount Nose Bar Drive Packages Dorner Mfg. Corp. 851-680 Rev. A...

  • Page 7: Installation

    (Figure 4, item 1) to the nose bar side plate causing serious injury. (Figure 4, item 2). Nose Bar Drive Mounting Positions TOP VIEW Figure 2 Figure 4 7350 Series Side Mount Nose Bar Drive Packages 851-680 Rev. A Dorner Mfg. Corp.
  • Page 8 (Figure 7, item 3). Remove the drainage plugs (Figure 10, item 1) on the bottom side of the motor. Figure 7 Figure 10 7350 Series Side Mount Nose Bar Drive Packages Dorner Mfg. Corp. 851-680 Rev. A...

  • Page 9: Preventive Maintenance And Adjustment

    Motors may be HOT and can cause serious burn injuries. Figure 12 NOTE Be sure to retain the motor output shaft key. 7350 Series Side Mount Nose Bar Drive Packages 851-680 Rev. A Dorner Mfg. Corp.
  • Page 10 (Figure 17, item 2). (Figure 15, item 1) from the gear reducer (Figure 15, item 2). Figure 17 Figure 15 Connect the new gear reducer to the motor. 7350 Series Side Mount Nose Bar Drive Packages Dorner Mfg. Corp. 851-680 Rev. A...

  • Page 11: Motor Replacement

    DO NOT TOUCH the motor while operating, or Loosen the cord grip and remove the cord. shortly after being turned off. Motors may be HOT and can cause serious burn injuries. 7350 Series Side Mount Nose Bar Drive Packages 851-680 Rev. A Dorner Mfg. Corp.
  • Page 12 Detach the motor (Figure 22, item 1) from the gear reducer (Figure 22, item 2). Figure 24 Rewire the motor and attach the junction box cover. Figure 22 7350 Series Side Mount Nose Bar Drive Packages Dorner Mfg. Corp. 851-680 Rev. A...

  • Page 13: Service Parts

    Service Parts Horizontal Nose Bar Drive NOTE For replacement parts other than those shown in this section, contact an authorized Dorner Service Center or the factory. Key Service Parts and Kits are identified by the Performance Parts Kits logo . Dorner recommends keeping these parts on hand.

  • Page 14: Gearmotor Assembly

    Stainless Steel Socket Head Cap Screw 10-32 x .25 for Painted Gearmotor 916-126 Stainless Steel Button Head Cap Screw 1/4-20 x .31 for Stainless Steel Gearmotor 7350 Series Side Mount Nose Bar Drive Packages Dorner Mfg. Corp. 851-680 Rev. A...

  • Page 15: Notes

    Notes 7350 Series Side Mount Nose Bar Drive Packages 851-680 Rev. A Dorner Mfg. Corp.

  • Page 16: Return Policy

    RMA will automatically close 30 days after being issued. To get credit, items must be new and undamaged. There will be a return charge on all items returned for credit, where Dorner was not at fault. It is the customer’s responsibility to prevent damage during return shipping.
