Camera Window Replacement
A. Disconnect the Power
B. Remove the Camera Assembly

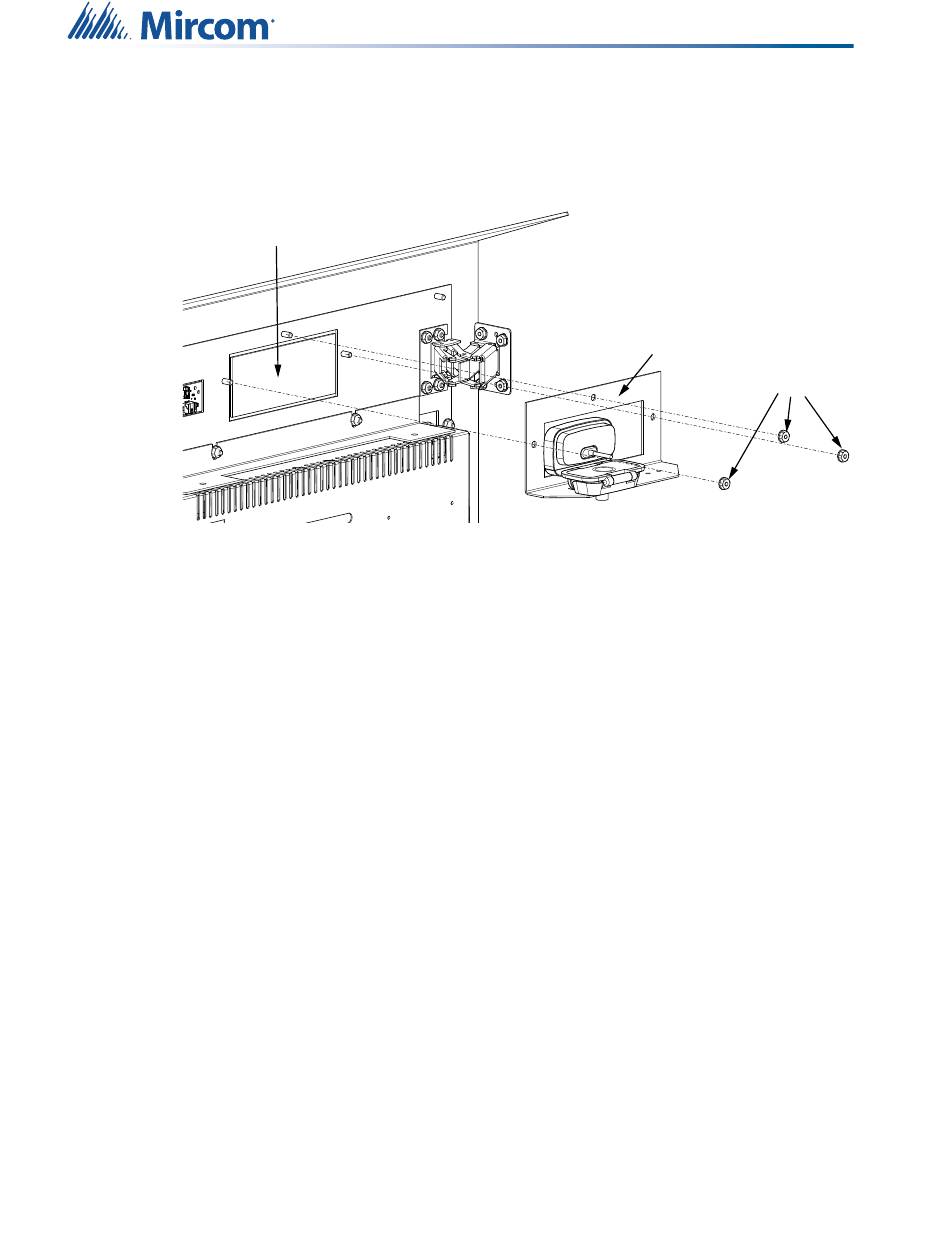

Remove the 3 nuts and the camera assembly.
Camera window
Camera assembly
3 x nuts
Figure 3
Parts of the card reader assembly
C. Replace the Camera Window
D. Replace the Camera Assembly
Replace the camera assembly as shown in Figure 3.
You are done! If you need more help, call us at 1-888-660-4655.
LT-6659 Rev 0
Page 2 of 2
