Replacement Display for TX3-TOUCH-S15B-WR
and TX3-TOUCH-S15S-WR
A. Shut down the Touch Screen
1. At the Touch Screen terminal, enter 9999.
2. Enter your administrator password, and then press OK.
3. Select File > Shut down > Shut down.
4. After the TX3 Configurator and Windows have shut down, disconnect power from the
Touch Screen.
5. Turn off the lobby controller board.
B. Remove the old display
1. Disconnect the MD-990 power supply.
2. Disconnect the cables from the current display.
3. Unscrew the 4 nuts that hold the display assembly to the door. See Figure 2.
4. Unscrew the 4 screws that hold the brackets to the display. See Figure 1.
C. Attach the new display
1. Secure the new display to the brackets with the four screws you removed in step B. See
Figure 1.

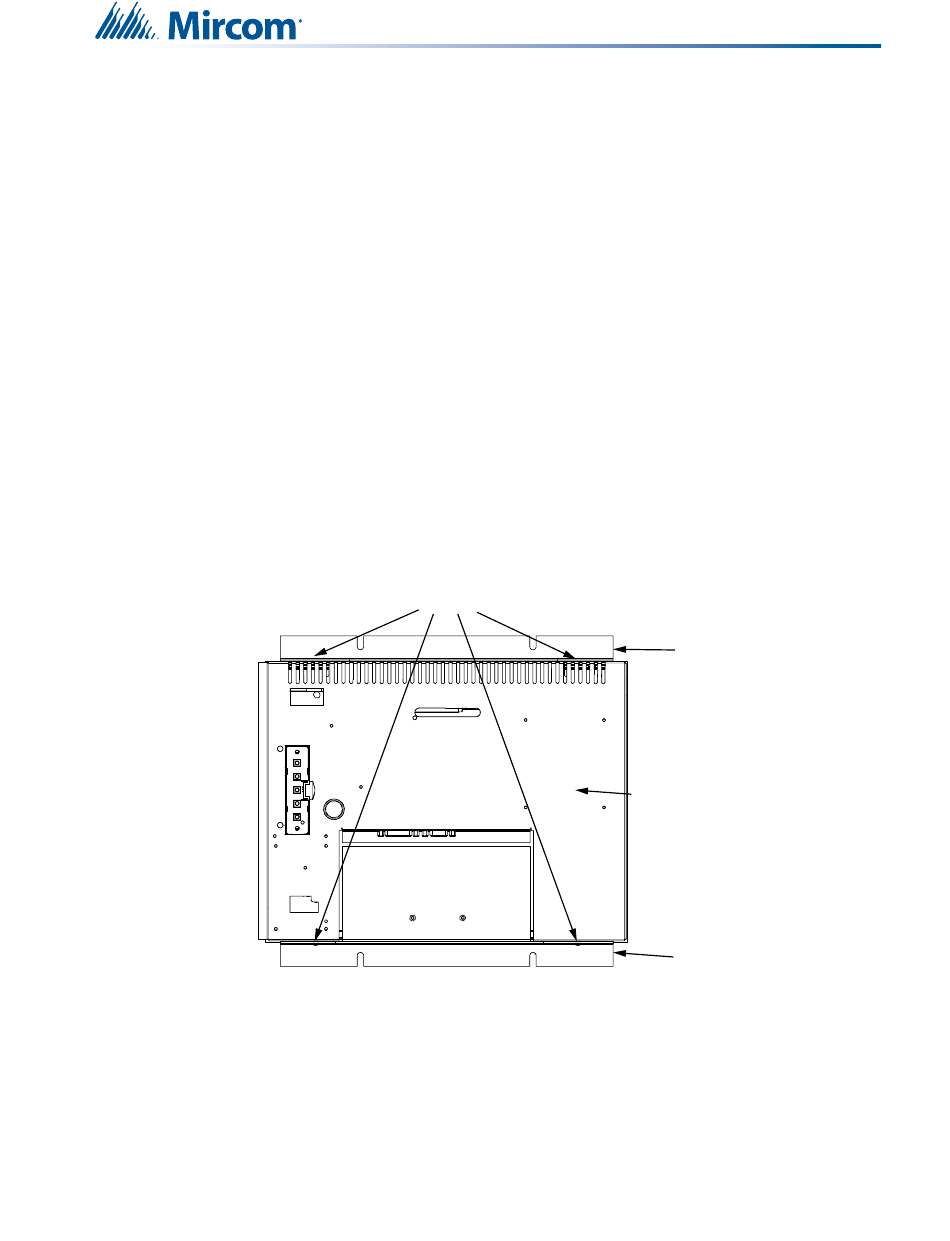

Figure 1
LT-6656 Rev 0
4 screws
Display assembly
bracket
display
bracket
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX3-TOUCH-S15B-WR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mircom TX3-TOUCH-S15B-WR

  • Page 1 Replacement Display for TX3-TOUCH-S15B-WR and TX3-TOUCH-S15S-WR A. Shut down the Touch Screen 1. At the Touch Screen terminal, enter 9999. 2. Enter your administrator password, and then press OK. 3. Select File > Shut down > Shut down. 4. After the TX3 Configurator and Windows have shut down, disconnect power from the Touch Screen.
  • Page 2 2. Attach the new display to the door with the 4 nuts you removed in step B. See Figure 2. 4 nuts Display Door assembly 4 nuts Figure 2 Display on door 3. Connect all the cables to the new display. 4.
