TX3-CX-1NP Installation
These instructions explain how to install the TX3-CX-1NP and the TX3-P300-HA card reader
in the following TX3 units:
TX3-TOUCH-F15-B/C
TX3-TOUCH-S15-B/C
TX3-TOUCH-F22(-C)
These units include 2 #6-32 x 1/2" screws for attaching the TX3-P300-HA card reader to the
inside of the door.
A.
Contents of Kit
Qty 1... TX3-CX-1NP
Qty 2... Nuts for attaching TX3-CX-1NP to the TX3 unit
Qty 1... USB cable for programming TX3-CX-1NP
Qty 1... USB flash containing TX3 software and manuals
B.
Mount TX3-CX-1NP

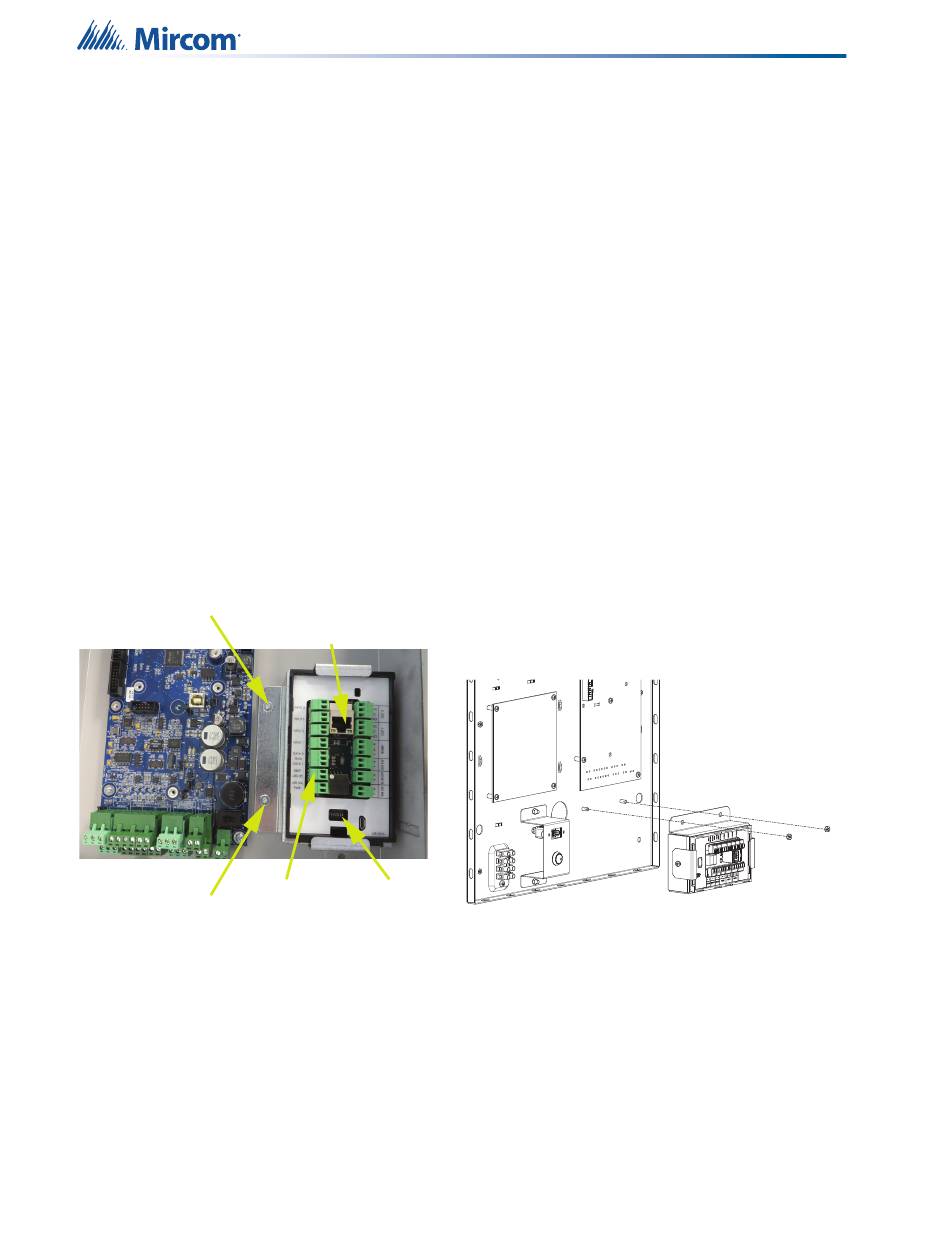

1. Mount TX3-CX-1NP on the two posts as shown in Figure 1.
2. Secure it with the provided nuts.
Nut
Nut
Installing on a telephone entry unit
Figure 1
C.
Mount the TX3-P300-HA Card Reader
•
Secure the card reader to the plastic bracket on the inside of the door with the 2 #6-32 x 1/2"
screws that are included with the TX3 unit.
Note:
Note:
1
TX3-200-8U-B/C
TX3-200-8C-B/C
TX3-TOUCH-S22(-C)
RJ45 connector for
Internet communication
and Power over Ethernet
Card reader
DIP switches
connections
Mount TX3-CX-1NP
Do not use the cover that is included with the reader.
Install the reader with the LED facing out.
Subject to change without notice. See http://www.mircom.com for the latest information
TX3-1000-8U-B/C
TX3-1000-8C-B/C
Installing on a Touch Screen
LT-5997 Rev 3 January 2018
TX3-CX-1NP Installation
TX3-2000-8U-B/C
TX3-2000-8C-B/C
Advertisement
Related Manuals for Mircom TX3-CX-1NP
Summary of Contents for Mircom TX3-CX-1NP
- Page 1 TX3-CX-1NP Installation TX3-CX-1NP Installation These instructions explain how to install the TX3-CX-1NP and the TX3-P300-HA card reader in the following TX3 units: TX3-TOUCH-F15-B/C TX3-200-8U-B/C TX3-1000-8U-B/C TX3-2000-8U-B/C TX3-TOUCH-S15-B/C TX3-200-8C-B/C TX3-1000-8C-B/C TX3-2000-8C-B/C TX3-TOUCH-F22(-C) TX3-TOUCH-S22(-C) These units include 2 #6-32 x 1/2" screws for attaching the TX3-P300-HA card reader to the inside of the door.
- Page 2 Set DIP switch 8 on to set a fixed IP address using the TX3 Configurator software. For more information and the complete list of RS-485 addresses, see LT-980, the TX3 Card Access System Manual, on the Mircom website (www.mircom.com) or the USB flash. Connect the Card Reader...
- Page 3 Set the 120Ω switch ON if unit is used as first or last controller on RS-485 network, and an external resistor is not used. Otherwise set OFF. • Shielded or unshielded Cat 5 cable LT-5997 Rev 3 January 2018 Subject to change without notice. See http://www.mircom.com for the latest information...
- Page 4 • Alarm. Continuous short beeps. Update Firmware Refer to LT-995 on the Mircom website (www.mircom.com) or the USB flash for instructions on how to upgrade the firmware. LT-5997 Rev 3 January 2018 Subject to change without notice. See http://www.mircom.com for the latest information...
