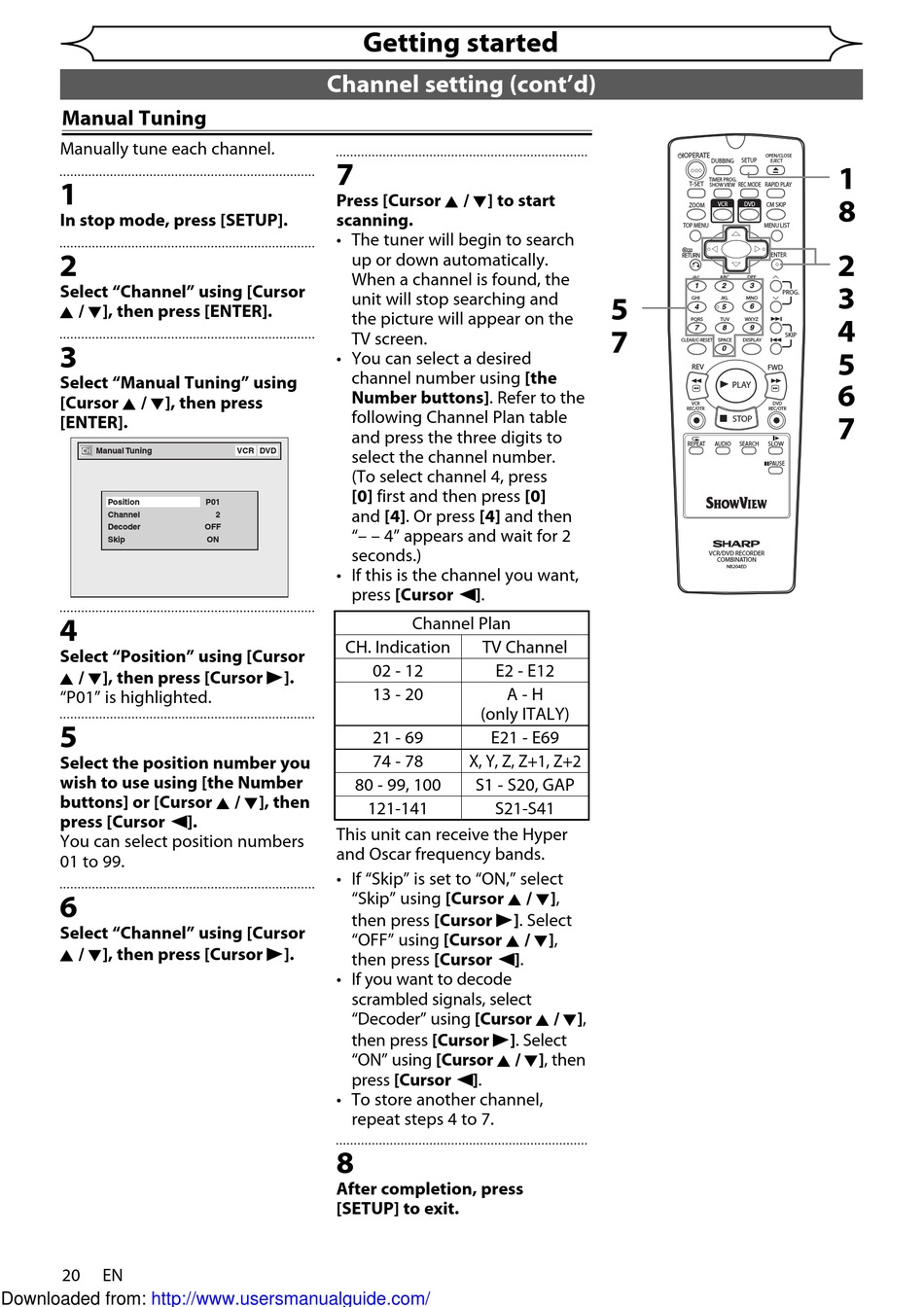

Manual Tuning - Sharp DV-RW370S Operation Manual

Manual Tuning

Manually tune each channel.
1
In stop mode, press [SETUP].
2
Select "Channel" using [Cursor
K / L], then press [ENTER].
3
Select "Manual Tuning" using
[Cursor K / L], then press
[ENTER].
Manual Tuning
Position
Channel
Decoder
Skip
4
Select "Position" using [Cursor
K / L], then press [Cursor B].
"P01" is highlighted.
5
Select the position number you
wish to use using [the Number
buttons] or [Cursor K / L], then
press [Cursor {].
You can select position numbers
01 to 99.
6
Select "Channel" using [Cursor
K / L], then press [Cursor B].
20 EN
Downloaded from: http://www.usersmanualguide.com/
Getting started
Channel setting (cont'd)
7
Press [Cursor K / L] to start
scanning.
• The tuner will begin to search
up or down automatically.
When a channel is found, the
unit will stop searching and
the picture will appear on the
TV screen.
• You can select a desired
channel number using [the
Number buttons]. Refer to the
following Channel Plan table
and press the three digits to
VCR DVD
select the channel number.
(To select channel 4, press
[0] first and then press [0]
P01
and [4]. Or press [4] and then
2
OFF
"– – 4" appears and wait for 2
ON
seconds.)
• If this is the channel you want,
press [Cursor {].
CH. Indication
02 - 12
13 - 20
21 - 69
74 - 78
80 - 99, 100
121-141
This unit can receive the Hyper
and Oscar frequency bands.
• If "Skip" is set to "ON," select
"Skip" using [Cursor K / L],
then press [Cursor B]. Select
"OFF" using [Cursor K / L],
then press [Cursor {].
• If you want to decode
scrambled signals, select
"Decoder" using [Cursor K / L],
then press [Cursor B]. Select
"ON" using [Cursor K / L], then
press [Cursor {].
• To store another channel,
repeat steps 4 to 7.
8
After completion, press
[SETUP] to exit.
Channel Plan
TV Channel
E2 - E12
A - H
(only ITALY)
E21 - E69
X, Y, Z, Z+1, Z+2
S1 - S20, GAP
S21-S41
OPERATE
OPEN/CLOSE
SETUP
DUBBING EJECT
TIMER PROG.
T-SET
SHOW VIEW REC MODE RAPID PLAY
VCR
DVD CM SKIP
ZOOM
TOP MENU MENU LIST
ENTER
RETURN
.@/: ABC DEF
1 2 3
PROG.
GHI JKL MNO
5
6
4 5
PQRS TUV WXYZ
7 8 9
7
SKIP
CLEAR/C-RESET SPACE DISPLAY
0
REV
FWD
PLAY
VCR DVD
REC/OTR REC/OTR
STOP
REPEAT AUDIO SEARCH SLOW
PAUSE
VCR/DVD RECORDER
COMBINATION
NB204ED
1
8
2
3
4
5
6
7
