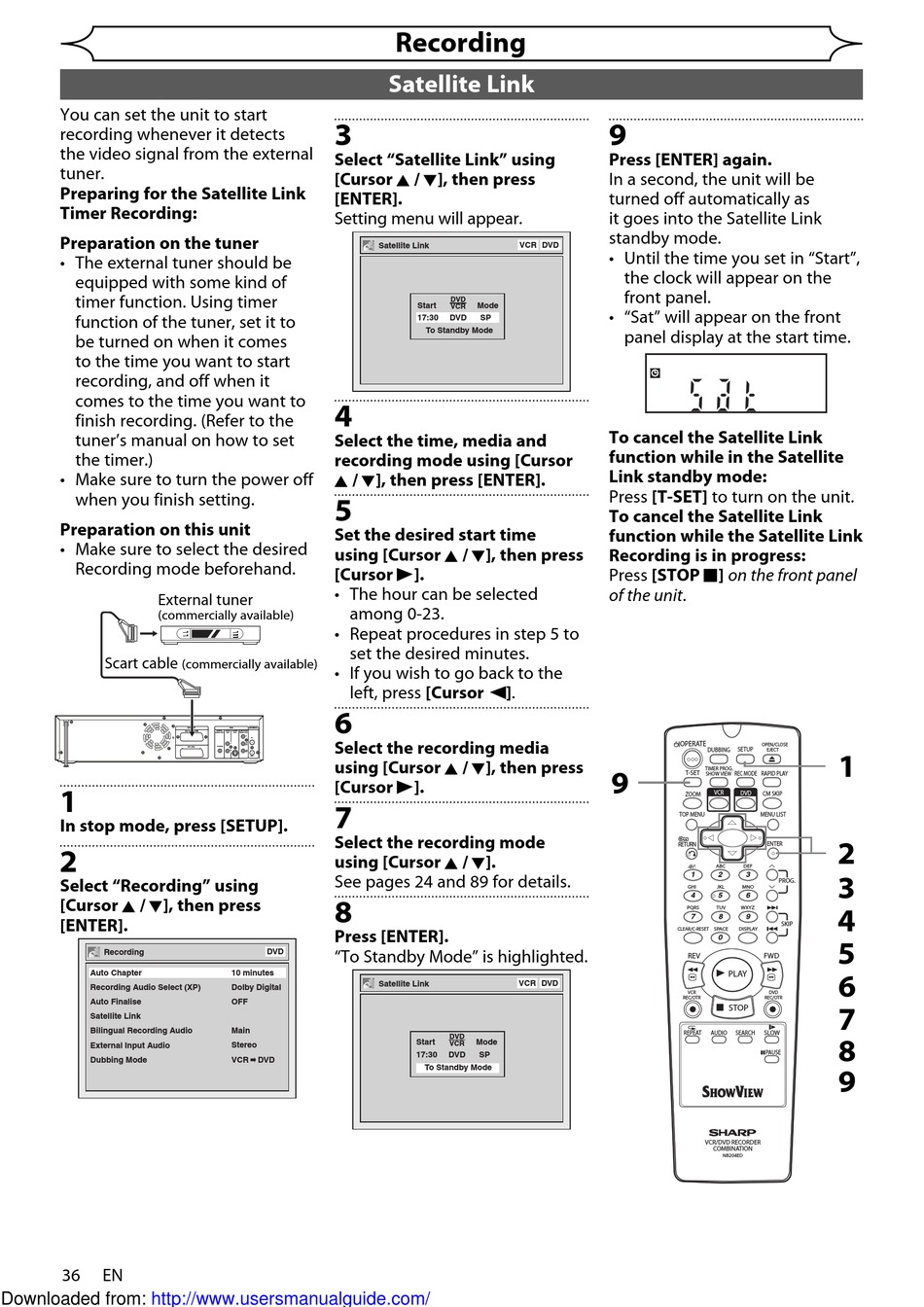

You can set the unit to start
recording whenever it detects
the video signal from the external
tuner.
Preparing for the Satellite Link
Timer Recording:
Preparation on the tuner
• The external tuner should be
equipped with some kind of
timer function. Using timer
function of the tuner, set it to
be turned on when it comes
to the time you want to start
recording, and off when it
comes to the time you want to
finish recording. (Refer to the
tuner's manual on how to set
the timer.)
• Make sure to turn the power off
when you finish setting.
Preparation on this unit
• Make sure to select the desired
Recording mode beforehand.
External tuner
(commercially available)
Scart cable
1
In stop mode, press [SETUP].
2
Select "Recording" using
[Cursor K / L], then press
[ENTER].
Recording
Auto Chapter
Recording Audio Select (XP)
Auto Finalise
Satellite Link
Bilingual Recording Audio
External Input Audio
Dubbing Mode
36
EN
Downloaded from:
http://www.usersmanualguide.com/
3
Select "Satellite Link" using
[Cursor K / L], then press
[ENTER].
Setting menu will appear.
4
Select the time, media and
recording mode using [Cursor
K / L], then press [ENTER].
5
Set the desired start time
using [Cursor K / L], then press
[Cursor B].
• The hour can be selected
among 0-23.
• Repeat procedures in step 5 to
set the desired minutes.
(commercially available)
• If you wish to go back to the
left, press [Cursor {].
6
DVD/VCR
DVD
ANTENNA
AV2 (DECODER)
DIGITAL
AUDIO
S-VIDEO
COMPONENT
AUDIO OUT
OUT
OUT
VIDEO OUT
Y
IN
Select the recording media
P
L
B
/C
B
AV1 (TV)
COAXIAL
P
R
R
/C
R
OUT
using [Cursor K / L], then press
[Cursor B].
7
Select the recording mode
using [Cursor K / L].
See pages 24 and 89 for details.
8
Press [ENTER].
DVD
"To Standby Mode" is highlighted.
10 minutes
Dolby Digital
OFF
Main
Stereo
VCR
DVD
Recording
Satellite Link
VCR
DVD
Satellite Link
DVD
Start
Mode
VCR
17:30
DVD
SP
To Standby Mode
Satellite Link
VCR
DVD
DVD
Start
Mode
VCR
17:30
DVD
SP
To Standby Mode
9
Press [ENTER] again.
In a second, the unit will be
turned off automatically as
it goes into the Satellite Link
standby mode.
• Until the time you set in "Start",
the clock will appear on the
front panel.
• "Sat" will appear on the front
panel display at the start time.
To cancel the Satellite Link
function while in the Satellite
Link standby mode:
Press [T-SET] to turn on the unit.
To cancel the Satellite Link
function while the Satellite Link
Recording is in progress:
Press [STOP C] on the front panel
of the unit.
OPERATE
OPEN/CLOSE
DUBBING
SETUP
EJECT
TIMER PROG.
9
T-SET
REC MODE
RAPID PLAY
SHOW VIEW
VCR
DVD
CM SKIP
ZOOM
TOP MENU
MENU LIST
ENTER
RETURN
.@/:
ABC
DEF
1
2
3
PROG.
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
SKIP
CLEAR/C-RESET
SPACE
DISPLAY
0
REV
FWD
PLAY
VCR
DVD
REC/OTR
REC/OTR
STOP
REPEAT
AUDIO
SEARCH
SLOW
PAUSE
VCR/DVD RECORDER
COMBINATION
NB204ED
1
2
3
4
5
6
7
8
9
