Summary of Contents for Schmidt SS 20.600

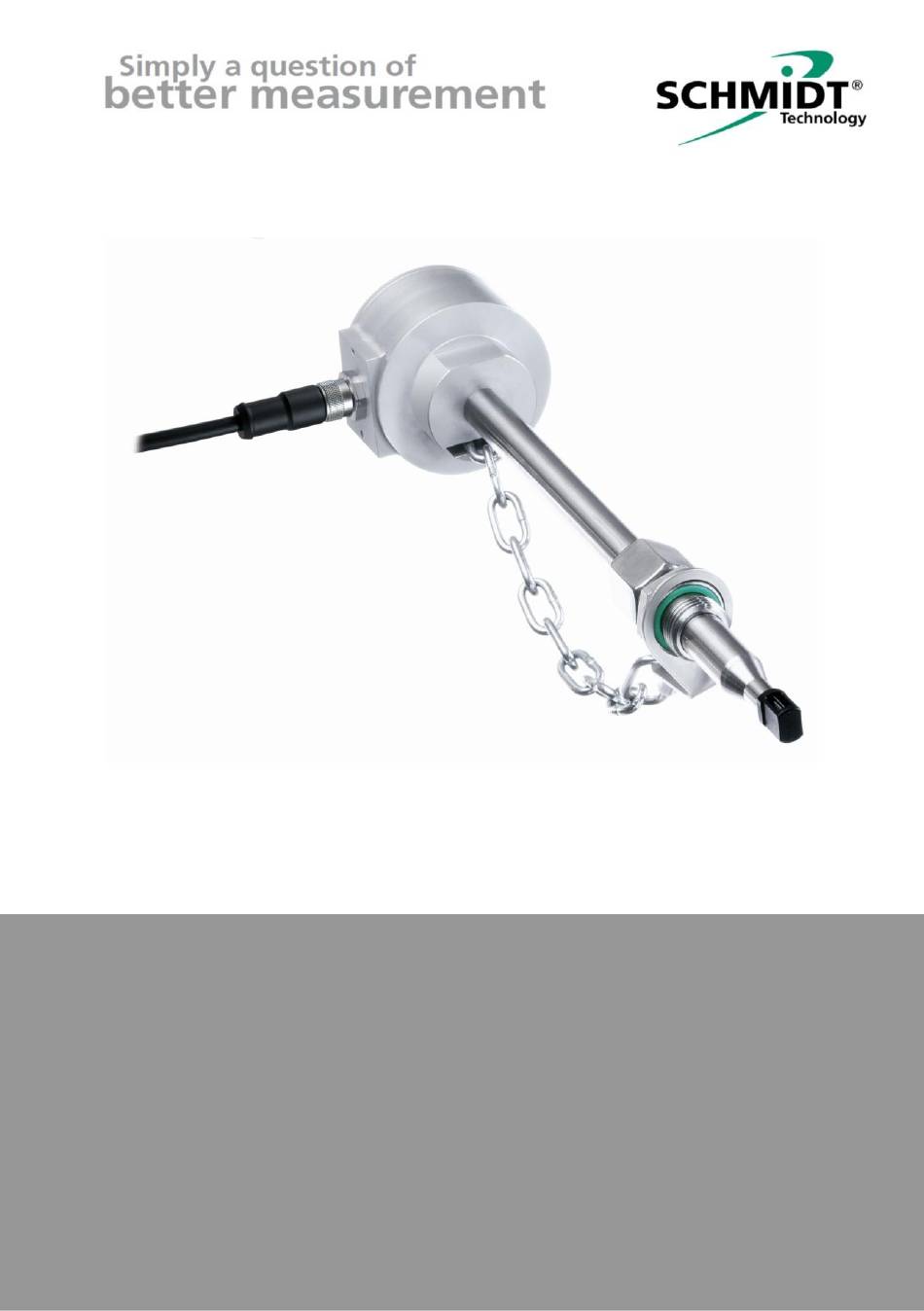

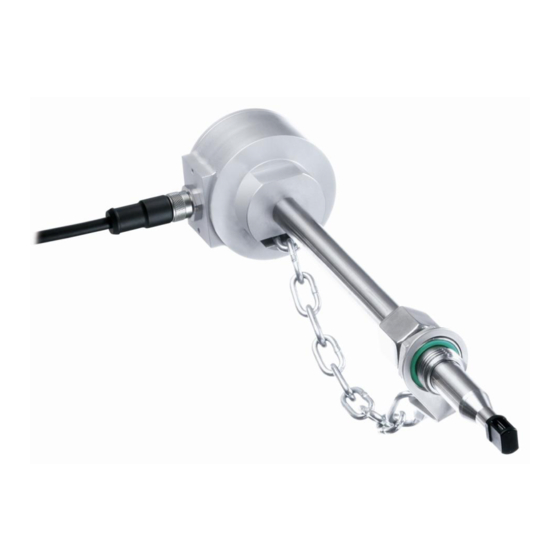

- Page 1 ® SCHMIDT Flow Sensor SS 20.600 Quick Guide...
- Page 2 ® SCHMIDT Flow Sensor SS 20.600 Table of Contents Important information............... 3 Application range ................3 Assembly ..................4 Electrical connection................ 6 Commissioning ................7 Calculation of volume flow ............... 7 Imprint: Copyright 2021 SCHMIDT Technology GmbH All rights reserved Version: 536020.02C...
- Page 3 2). In particular, it is not designed for direct or indirect protec- tion of personal or machinery. SCHMIDT Technology cannot give any warranty as to its suitability for a certain purpose and cannot be held liable for accidental or sequential damage in connection with the delivery, performance or use of this unit.
- Page 4 5 x D Two 90° bends in one plane (2-dimensional) 35 x D 5 x D Two 90° bends (3-dimensional change in direction) Shut-off valve 45 x D 5 x D Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 4...
- Page 5 Installation The sensor may only be mounted and dismounted when no pres- sure is applied. Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 5...
- Page 6 A supply voltage of 24 V ± 20 % is required to operate the sensor. For more information, please refer to the general Instructions for Use (535084.02, page 21 et. seq.). Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 6...
- Page 7 Blue Pulse 2 Signal Flow / volume (relais) Table 1 ® The specified wire colors are valid when one of the SCHMIDT connecting cables is used. Depending on the value of the connected load resistance R , the analog output switches between the operation as voltage interface (0 … 10 V) and current interface (4 …...
- Page 8 SCHMIDT Technology GmbH Feldbergstrasse 1 78112 St. Georgen Germany Phone +49 (0)7724 / 899-0 +49 (0)7724 / 899-101 Email sensors@schmidttechnology.de www.schmidt-sensors.com Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 8...
