Summary of Contents for Schmidt SS 20.600

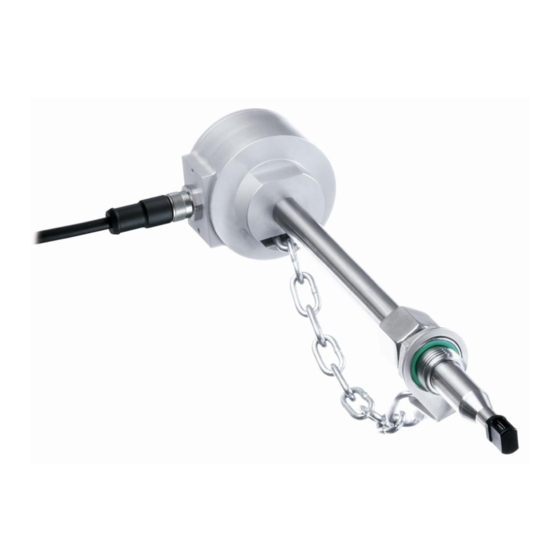

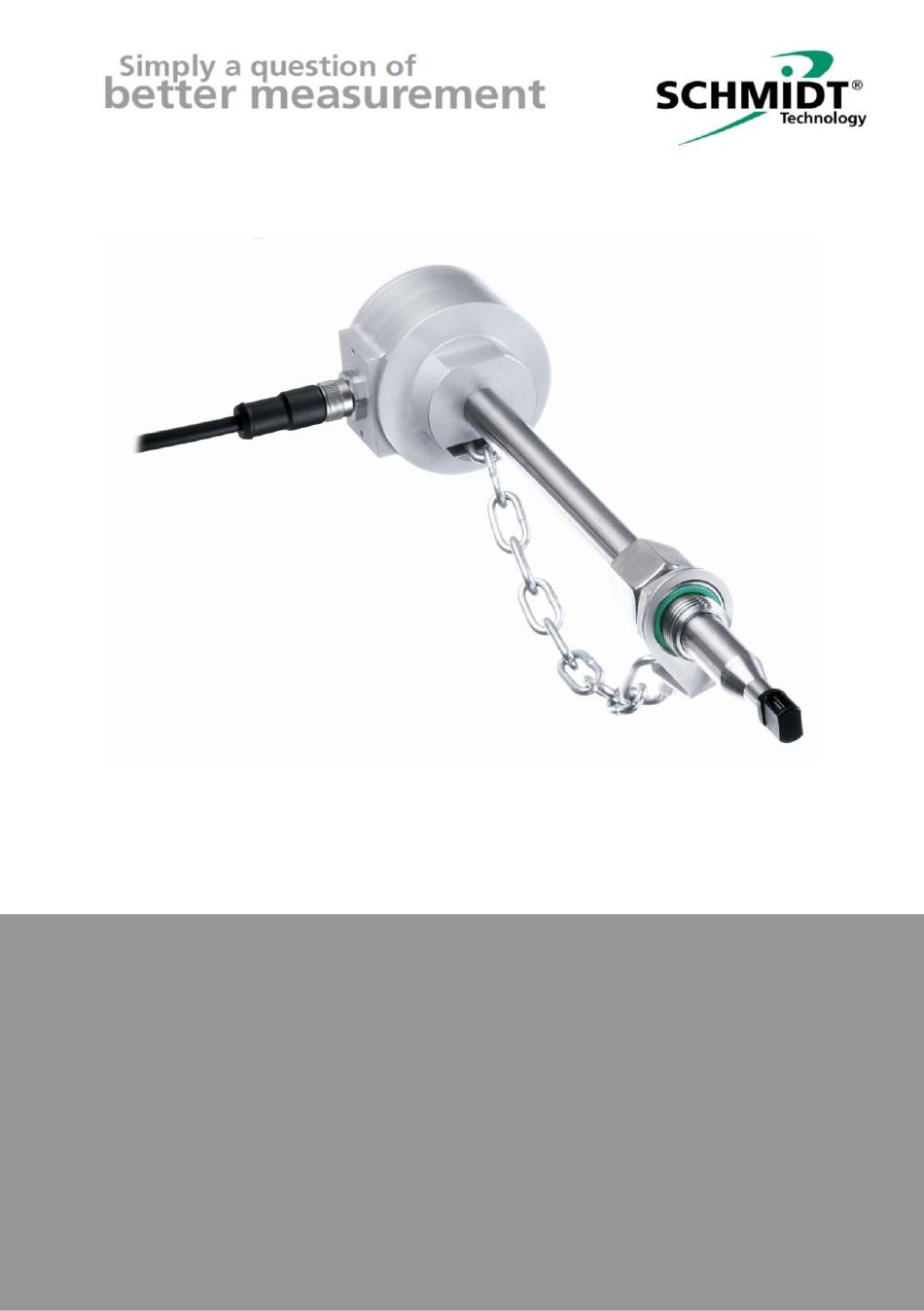

- Page 1 ® SCHMIDT Flow Sensor SS 20.600 Quick Guide...
- Page 2 ® SCHMIDT Flow Sensor SS 20.600 Table of Contents Important information............... 2 Application range ................2 Assembly ..................2 Electrical connection................ 2 Commissioning ................2 Calculation of volume flow ............... 2 Imprint: Copyright 2022 SCHMIDT Technology GmbH All rights reserved Version: 536020.02D...
- Page 3 2). In particular, it is not designed for direct or indirect protection of personal or machinery. SCHMIDT Technology cannot give any warranty as to its suitability for a certain purpose and cannot be held liable for accidental or sequential damage in connection with the delivery, performance or use of this unit.
- Page 4 Two 90° bends in one plane (2-dimensional) 20 x D 5 x D Two 90° bends (3-dimensional change in direction) 35 x D 5 x D 45 x D 5 x D Shut-off valve Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 4...
- Page 5 Installation The sensor may only be mounted and dismounted when no pres- sure is applied. Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 5...
- Page 6 The appropriate protection class III (SELV) respective PELV (ac- cording EN 50178) has to be considered. ® The specified wire colors are valid when one of the SCHMIDT connect- ing cables is used. Without signal current of pulse output 2 (relay).
- Page 7 Instructions for Use (535084.02, page 25). 6 Calculation of volume flow SCHMIDT Technology provides a "flow calculator" on its homepage for the calculation of flow velocity or volume flow in (circular) pipes or (rectan- gular) shafts for the different sensor types: www.schmidt-sensors.com...
- Page 8 SCHMIDT Technology GmbH Feldbergstrasse 1 78112 St. Georgen Germany Phone +49 (0)7724 / 899-0 +49 (0)7724 / 899-101 Email sensors@schmidttechnology.de www.schmidt-sensors.com www.schmidttechnology.de Quick Guide – SCHMIDT ® Flow Sensor SS 20.600 Page 8...
