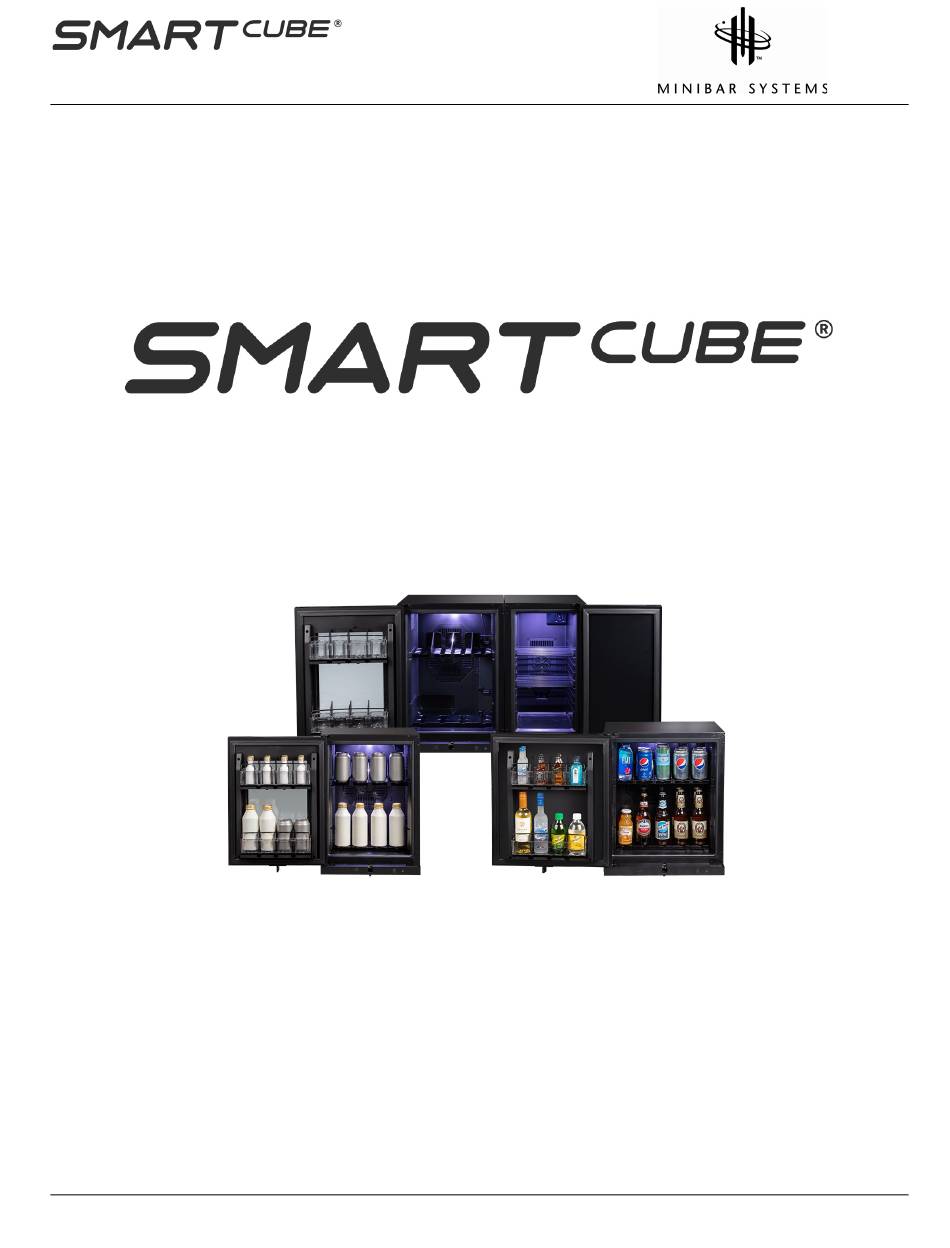

User Manual
MINIBAR SYSTEMS
USER MANUAL
Installation Instructions,
Operating Instructions and
Case Good Specifications
Models: SC-40T and DualBar
Revised on 05/09/2022
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTCUBE SC-40T and is the answer not in the manual?

Questions and answers

Summary of Contents for Minibar Systems SMARTCUBE SC-40T

  • Page 1 User Manual MINIBAR SYSTEMS USER MANUAL Installation Instructions, Operating Instructions and Case Good Specifications Models: SC-40T and DualBar Revised on 05/09/2022 Page 1...
  • Page 2: Table Of Contents

    10.6 Console Box Installation 10.7 Lock Override Enabled (when electronics malfunctions) 10.8 Lock Override Disabled (when electronics functions) 10.9 DualBar Installation 10.10 SmartCube Installation 11. Use, Safety, Recycling and Disposal 12. Minibar Systems Global Offices Revised on 05/09/2022 Page 2...
  • Page 3 If the mains power cord is damaged, at any time, it must be replaced by • Minibar Systems, its service agent or similarly qualified person in order to avoid a hazard. SmartCube is not intended for use by persons (including children) with •...
  • Page 4 Make sure the mains power cord or any other cables are not trapped under the unit. • If the mains power cord is damaged, at any time, it must be replaced by Minibar Systems, its service agent or similarly qualified person in order to avoid a hazard.
  • Page 5: Ventilation-Basic Principles And The Smartcube Environment

    SmartCube. Minibar Systems would like to stress that proper ventilation for the SmartCube is imperative to ensure maximum efficient operation of the cooling unit.
  • Page 6: Shelf Cutout

    Ventilation grills or slots must not be covered. For more information, refer to the SmartCube Case Good Specifications manual available from your Minibar representative or from the Minibar Systems website. Visit https://smartcube.minibarsystems.com/downloads/ for most up to date ventilation specification...
  • Page 7: Cavity Opening For Smartcube Models

    8” (203.2 mm) with a divider wall 9.8” (248.92 mm) from the inside face of case good door (see Diagrams A and B for cavity requirements). The internal color of this area must be matt black or dark. If any variations are to be considered, please consult Minibar Systems for further assistance.
  • Page 8 If the hotel is using multiple SmartTrays or ambient snack trays, please consult Minibar Systems for further assistance since hole requirements will vary. If a SmartTray is used in a pull out shelf application, a separate rack is required to support products.
  • Page 9 User Manual 3.125” 8 sensor 14.8” 8.0625” 79.38 mm Leatherette 375.92 mm 204.787 mm 10 sensor 3.125” 18.385” 8.0625” Leatherette 79.38 mm 467 mm 204.787 mm (Wi-Fi) configurations: SmartTrays come in the following leatherette SmartTray Height Width Depth 4 sensor 3.125”...
  • Page 10 User Manual SmartTrays comes in the following black wood configurations: SmartTray Height Width Depth 2.5” 4.5” 4.5” Single sensor 63.5 mm 114.3 mm 114.3 mm 2.5” 9” 4.5” Two single sensors 63.5 mm 228.6 mm 114.3 mm 4 sensor 2.5” 16.125”...
  • Page 11: Door Options

    If the ambient snack tray is to be positioned on top of the case good surface or in a stationary/pullout drawer, consult Minibar Systems for guidance and data cable routing. Provisions must be made for the cable that runs from the SmartCube to the ambient snack tray.
  • Page 12: Diagram A - Cavity Opening

    • 8” (203.2 mm) recommended for height of ambient housing section for snacks • Please consult Minibar Systems if hotel is using 2 or more SmartTrays • The material covering the top of the Ambient Cavity should be matt black •...
  • Page 13: Level And Install

    Ensure the mains power cord and any other cables are not trapped under the unit. • For more information, refer to the SmartCube Case Good Specifications manual available from your Minibar representative or from the Minibar Systems website. Level Diagram FRONT Typical level checks in both planes for optimum performance of the SmartCube.
  • Page 14: Diagram B - Cable Hole Placement For A Single Tray And Optional Electronic Lock

    0.4” (10 mm) Notes • Dimensions are in inches and millimeters • *Depends on tray placement in cavity. Contact Minibar Systems for assistance. • See Section 3.3 if using multiple trays, hole placement may vary • All dimensions are internal •...
  • Page 15: Temperature Regulation

    User Manual Temperature Regulation: • The operating temperature of the SmartCube is subject to many factors: the correct and level installation, proper ventilation, the internal product load, etc. • The temperature control box is factory set for optimum performance for the SmartCube. •...
  • Page 16: Communications

    This will also be automatically communicated to the server. • The communications within the hotel will be set up by the Minibar Systems installation team in coordination with the hotel and their network management team. The appropriate training will be provided to the hotel personnel.
  • Page 17: Installation Instructions

    User Manual Installation Instructions These Installation Instructions are for guidance for all SmartCube models SC-40T units available. Door Shelf Replacement To remove the door-mounted shelf you will need to first remove the rubber plug on the left side of the door shelf column that is protecting the un-used backplane connector.
  • Page 18 User Manual The door rack will now be loose and able to slide out the upper and lower door rack kit. Un-screw the right side door shelf column using a Philips head screw driver and remove the shelf column. 2021 Page 18...
  • Page 19 User Manual Disconnect door sensor shelf from the backplane board and the release engagement feature by sliding door sensor shelf to the right. Remove the sensor shelves for replacement. 2021 Page 19...
  • Page 20: Door Shelf Installation

    User Manual Door Shelf Installation Slide the door sensor shelf (MB-MA-0035) into the bottom support and connect it to the backpane Screw the right side door shelf column using a Philips head screw driver to secure the sensor shelves. Slide the rack kit between the two door shelf columns and engage into the side wall locking tabs.
  • Page 21 User Manual Install the rubber plug back to cover the un-used backplane connector. 2021 Page 21...
  • Page 22: Smartcube Shelf Replacement

    User Manual SmartCube Shelf Replacement Locate the lock bar that is located on the right side inner wall of the SmartCube minibar. To unlock the sensor shelves from the backplane frame lift up on the locking bar. Slide out the sensor shelves carefully and disconnect from the backplane connectors to replace.
  • Page 23: Cube Shelf Installation

    User Manual Cube Shelf Installation Connect dividers (MB-PP-0005 and PULF0015) to the sensor shelves. Once assembled onto sensor shelf (MB-MA-0034) slide the sensor shelves in the slots of the cube to connect onto the backplane connectors. Push down on the lock bar to secure shelves onto the backplane frame.
  • Page 24: Console Box Replacement

    User Manual Console Box Replacement Switch off the Console Box power supply unit and then disconnect all cables from it. Un-Screw the Console Box from the back of the SmartCube by removing three Philips head machine screws. 2021 Page 24...
  • Page 25: Console Box Installation

    User Manual Console Box Installation Mount the Console Box to the SmartCube back using 2 Round Philips Head screws (MB-NP-0027) and 1 Flat Philips Head screw(MB-NP-0029). Connect all cables back according to the wiring diagram and then swith on the power supply unit. 2021 Page 25...
  • Page 26: Lock Override Enabled (When Electronics Malfunctions)

    User Manual Lock Override Enabled (when electronics malfunctions) Open the lock cover by removing the Philips Head screw using a screw driver. Press the override pusher head down and rotate by 90 degrees in a clockwise direction to release the E- lock function.
  • Page 27: Lock Override Disabled (When Electronics Functions)

    User Manual Lock Override Disabled (when electronics functions) Press the override head down and rotate it by 90 derees in the counter clockwise direction to release the locking bar to resume E-lock function. Screw the anti-tamper cover back ono the SmartCubes lock override to prevent unauthorized access.
  • Page 28: Dualbar Installation

    User Manual DualBar Installation Make a case good per the specified dimensional drawing for proper ventilation. (Reference to the dimensional drawings). Fix the rear anchor bracket onto the case good using the gauge template or refer to the dimensional drawing for mounting locations.
  • Page 29 User Manual Make sure the IEC power cord is connected to the SmartCube and then push the SmartCube SC-40T into the cabinet against the rear anchor bracket. Connect the other end of the IEC power cord (MB-CA- 0016) to the SmartCube GuestFridge 27L.
  • Page 30 User Manual Adjust both the SmartCube and the GuestFridge unit’s locations to align with the center of the case good and then fix the units onto the casegood using two screws. To mount the units to case good, open doors and the bracket is located on the bottom lip of the cold cube.
  • Page 31: Smartcube Installation

    User Manual SmartCube Installation Make a case good per the specified dimensional drawing for proper ventilation. (Reference to the dimensional drawings). Fix the rear anchor bracket onto the case good using the gauge template or refer to the dimensional drawing for mounting locations. Screws(MB-NP-0023) packed in accessory back along with the bracket(MB-MP-0023).
  • Page 32 User Manual Insert the SmartCube SC-40T into the cabinet ensuring that it is pressed correctly into the rear anchor bracket. Adjust the SmartCube to align with the center of the case good. Open the door to screw the bottom of the SmartCube to the case good.
  • Page 33: Use, Safety, Recycling And Disposal

    At the end its normal lifetime, the WEEE symbol means that the product must be handled pursuant to the latest European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, contact your Minibar Systems representative. •...
  • Page 34: Minibar Systems Global Offices

    User Manual Minibar Systems Global Offices Switzerland Asia Austria Canada Minibar Enterprises AG Minibar Systems Asia Pte Ltd Minibar Enterprises AG Minibar Systems Canada Blegistrasse 9 31 Kaki Bukit Road 3, #03-01C Blegistrasse 9 21 Queen Street East CH-6340 Baar...
