Related Manuals for Minibar Systems GuestFridge Slim
Summary of Contents for Minibar Systems GuestFridge Slim

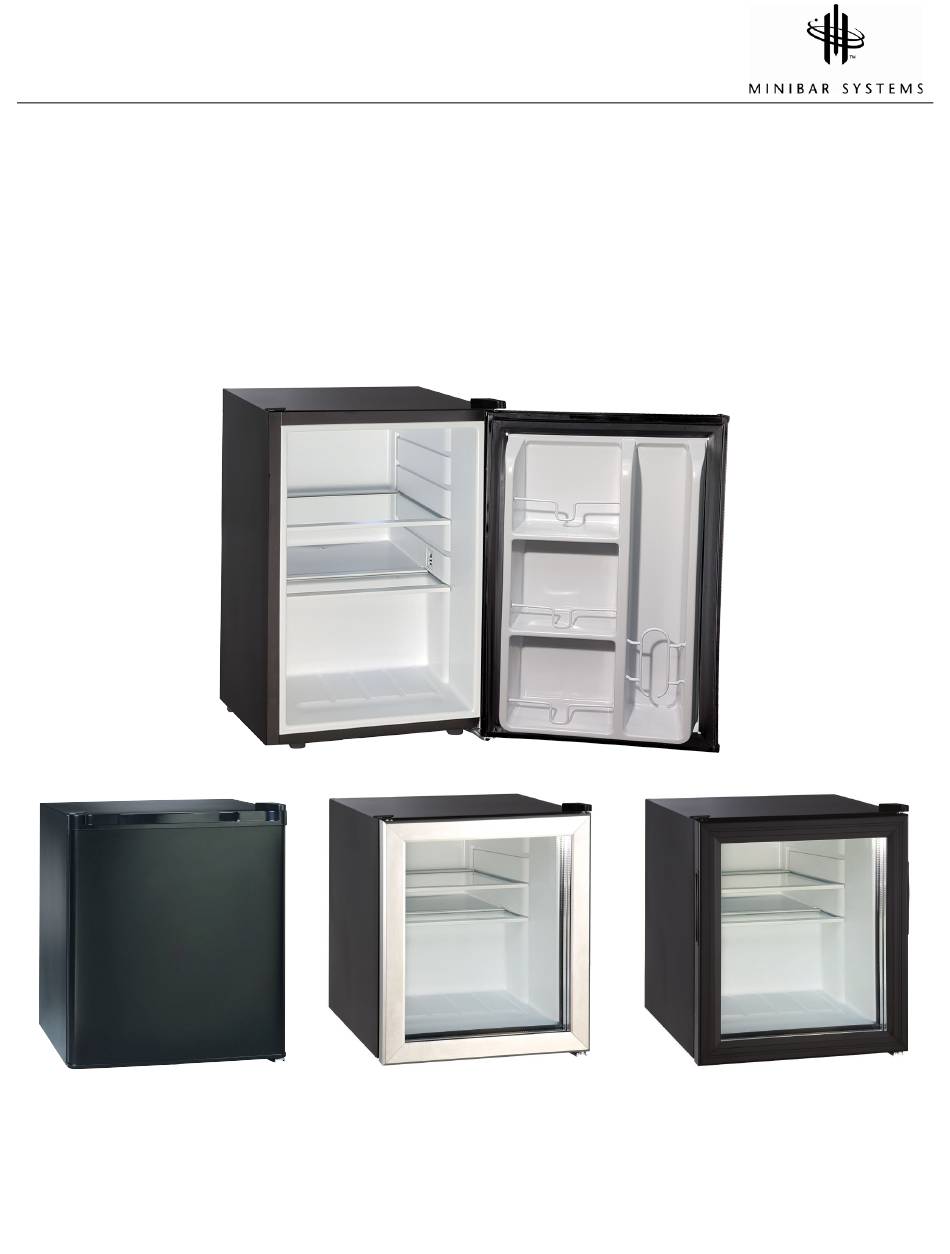

- Page 1 Minibar Systems GuestFridge Slim User’s Guide GuestFridge Slim User’s Guide Solid Black Door Stainless Steel Glass Door Black Frame Glass Door DOC0205_GuestFridge_Slim_User's_Guide Page 1...
-
Page 2: Table Of Contents
Disposal of Fridge ..............................15 10. Troubleshooting Guide ..............................16 11. Wiring Diagram ................................18 12. Minibar Systems Contact Information .......................... 19 13. Proof of Purchase ................................20 Check to be sure that all of the following parts were included in the original packaging:... -
Page 3: Fridge Safety
Minibar Systems GuestFridge Slim User’s Guide 1. Fridge Safety We have provided many important safety messages in this manual for your Fridge. Always read and obey all safety messages. Your safety and the safety of others is very important. 1.1 Safety Messages This is the Safety Alert Symbol. -
Page 4: Important Safety Instructions
Minibar Systems GuestFridge Slim User’s Guide • Do not attempt to repair or replace any part of your Fridge unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. • Use two or more people to move and install Fridge. Failure to do so can result in back or other injury. -
Page 5: Adjustable Shelves
Minibar Systems GuestFridge Slim User’s Guide 2.1 Adjustable Shelves Shelves can be placed on the guides inside the Fridge as required. Perishable foods should be stored towards the back/rear of the shelves as this is the coldest location in the Fridge. -
Page 6: Interior Light
Minibar Systems GuestFridge Slim User’s Guide 2.5 Interior Light The GuestFridge glass door models is provided with an automatic LED light that can be turned ON/OFF when the door is opened. 2.6 Dimensions Model Height Width Depth 20.5” 17” 16.14”... -
Page 7: Location And Ventilation Requirements
Ventilation grills or slots must not be covered. Please contact Minibar Systems for review of your case good drawings to ensure your design meets the criteria outlined in the Minibar Case Good Specifications Manual. If these ventilation requirements are not met, the warranty is void. -
Page 8: Installation
Minibar Systems GuestFridge Slim User’s Guide 6. Installation 6.1 Before Putting in Use Before connecting the Fridge remove all exterior and interior packing. Check to be sure you have all of the following parts: Water Drip Tray, 2 Shelves, Instruction Manual Before connecting the Fridge to the power source, let it stand upright for approximately 2 hours. -
Page 9: Maintenance And Cleaning
Minibar Systems GuestFridge Slim User’s Guide 7. Maintenance and Cleaning Disconnect the Fridge from the power supply before cleaning or attempting repairs. CAUTION Failure to unplug the Fridge could result in electrical shock or personal injury. 7.1 Cleaning the Fridge Disconnect the power plug from outlet before cleaning the Fridge. - Page 10 Minibar Systems GuestFridge Slim User’s Guide 1. Remove the plastic cover by inserting a flat screwdriver under the plastic cover and pry upward until it is removed. If the cover broken replace by a new one. 2. Remove the flat plastic cover that covers the holes of the opposite upper hinge 3.
- Page 11 Minibar Systems GuestFridge Slim User’s Guide 5. Remove and place the metal PIN on the opposite bottom hinge (left) Move the PIN from right to left 6. Replace the door by inserting it into the bottom PIN 7. Replace the upper hinge on left side...
- Page 12 Minibar Systems GuestFridge Slim User’s Guide 8. Place the 4 screws in the upper hinge and tighten enough / 2 screws for foamed door 9. Place the plastic cover of the upper hinge 10. place the flat plastic cover to cover the upper hinge holes that will not be used 11.
-
Page 13: Defrosting Of The Fridge
Minibar Systems GuestFridge Slim User’s Guide 7.4 Defrosting of the Fridge Defrost the Fridge when the frost accumulated on the chiller plate is about 5mm (1/5 inch) thick. Set the thermostat dial to “0” position. Remove frozen or perishable foods. Defrost usually takes a couple of hours. After defrosting, return the thermostat dial to the desired position. -
Page 14: Electrical Connection
Minibar Systems GuestFridge Slim User’s Guide 8. Electrical Connection Warning Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized products service center. -
Page 15: Miscellaneous Information
Minibar Systems GuestFridge Slim User’s Guide 9. Miscellaneous Information 9.1 Instructions for Use These instructions are intended for the user. They describe the Fridge and correct operating procedures for safe use. PLEASE SAVE THESE INSTRUCTIONS. 9.2 We Care for the Environment Our products use environmentally friendly packaging. -
Page 16: Troubleshooting Guide
You can solve many common Fridge problems easily. Please refer to this troubleshooting guide for the possible cause and solution to your problem outlined below. If you cannot resolve on your own, see “Minibar Systems Contact Information” at the end of this manual. - Page 17 Check to see if food items are not allowing the door to close properly. Failure of electronic components: Should there be a failure of the electronics components within the Fridge contact Minibar Systems. See “Minibar Systems Contact Information” at the end of this manual. DOC0205_GuestFridge_Slim_User's_Guide...
-
Page 18: Wiring Diagram
Minibar Systems GuestFridge Slim User’s Guide 11. Wiring Diagram DOC0205_GuestFridge_Slim_User's_Guide Page 18... -
Page 19: Minibar Systems Contact Information
Minibar Systems GuestFridge Slim User’s Guide 12. Minibar Systems Contact Information Contact Customer Support if you would like: to return items for repair/replacement, general information, pricing, spare parts, order status or items that are under warranty. We are proud of our customer service organization and the network of professional service technicians that provide service on your Minibar, Fridges, and Safes. -
Page 20: Proof Of Purchase
Minibar Systems GuestFridge Slim User’s Guide 13. Proof of Purchase HELP US HELP YOU... Read this guide carefully. It is intended to help you operate and maintain your new Fridge properly. Keep it handy to answer your questions. If you...
