User Manual

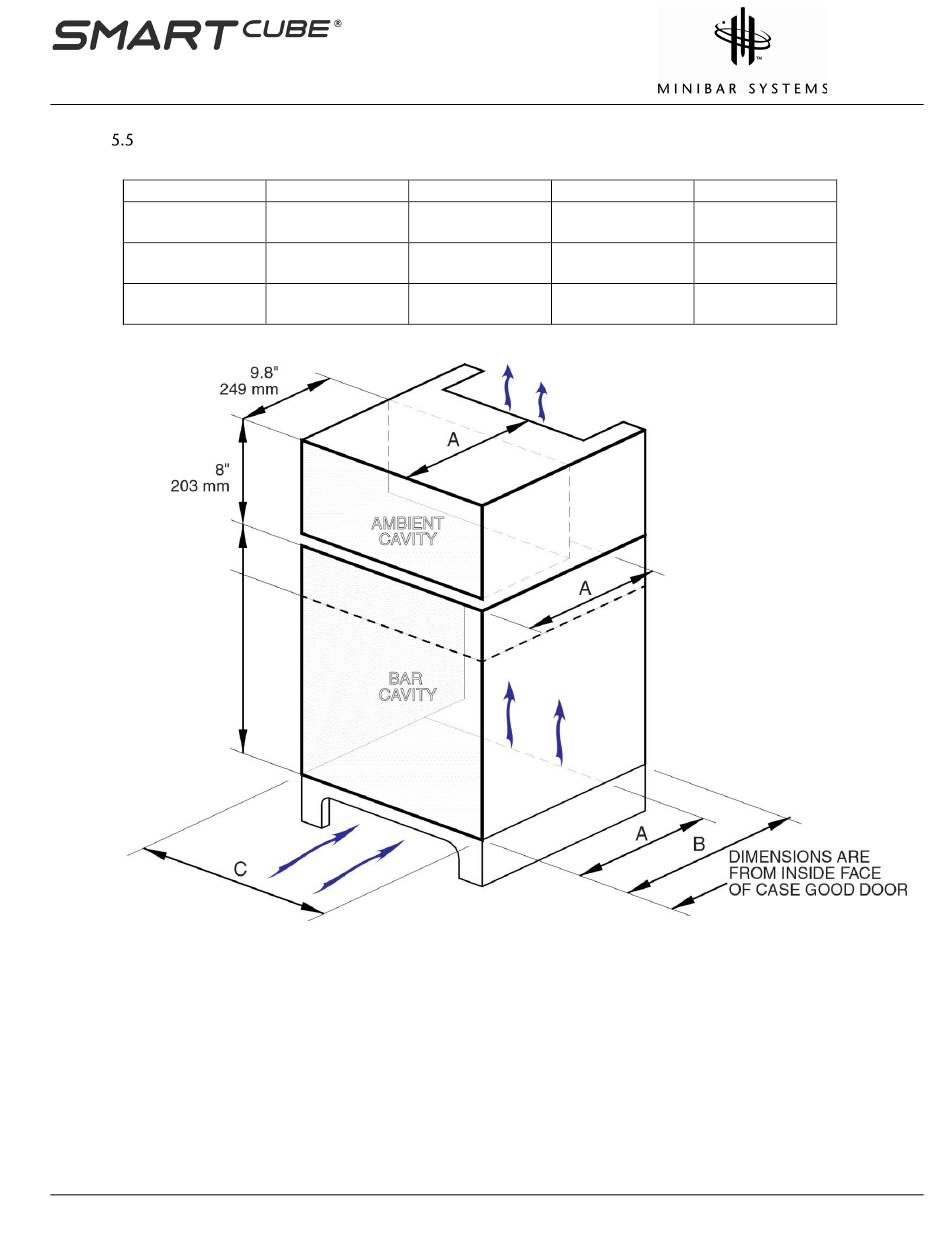

Diagram A – Cavity Opening
Minibar
SC-40i
GF-27i
DualBar
D
Notes
•
All dimensions are internal
•
Placement of bar begins 0.5" (13 mm) inside the case good door
•
All tolerances 0.12" (3 mm)
•
*If the key is stored in the minibar lock, allow an additional 1.2" (30 mm)
•
8" (203.2 mm) recommended for height of ambient housing section for snacks
•
Please consult Minibar Systems if hotel is using 2 or more SmartTrays
•
The material covering the top of the Ambient Cavity should be matt black
•
The height of the Drawer bar cavity is 19" or 483 mm
•
Not to scale
Revised on 05/09/2022
‡
‡
A
*
B
*
17.91"
22.64"
455 mm
575 mm
17.91"
22.64"
455 mm
575 mm
17.91"
22.64"
455 mm
575 mm
C
D
20.47"
26.66"
520 mm
677 mm
16.53"
26.66"
420 mm
677 mm
36.22"
26.66"
920 mm
677 mm
Page 12
