Acme Furniture 62203 Assembly Instructions

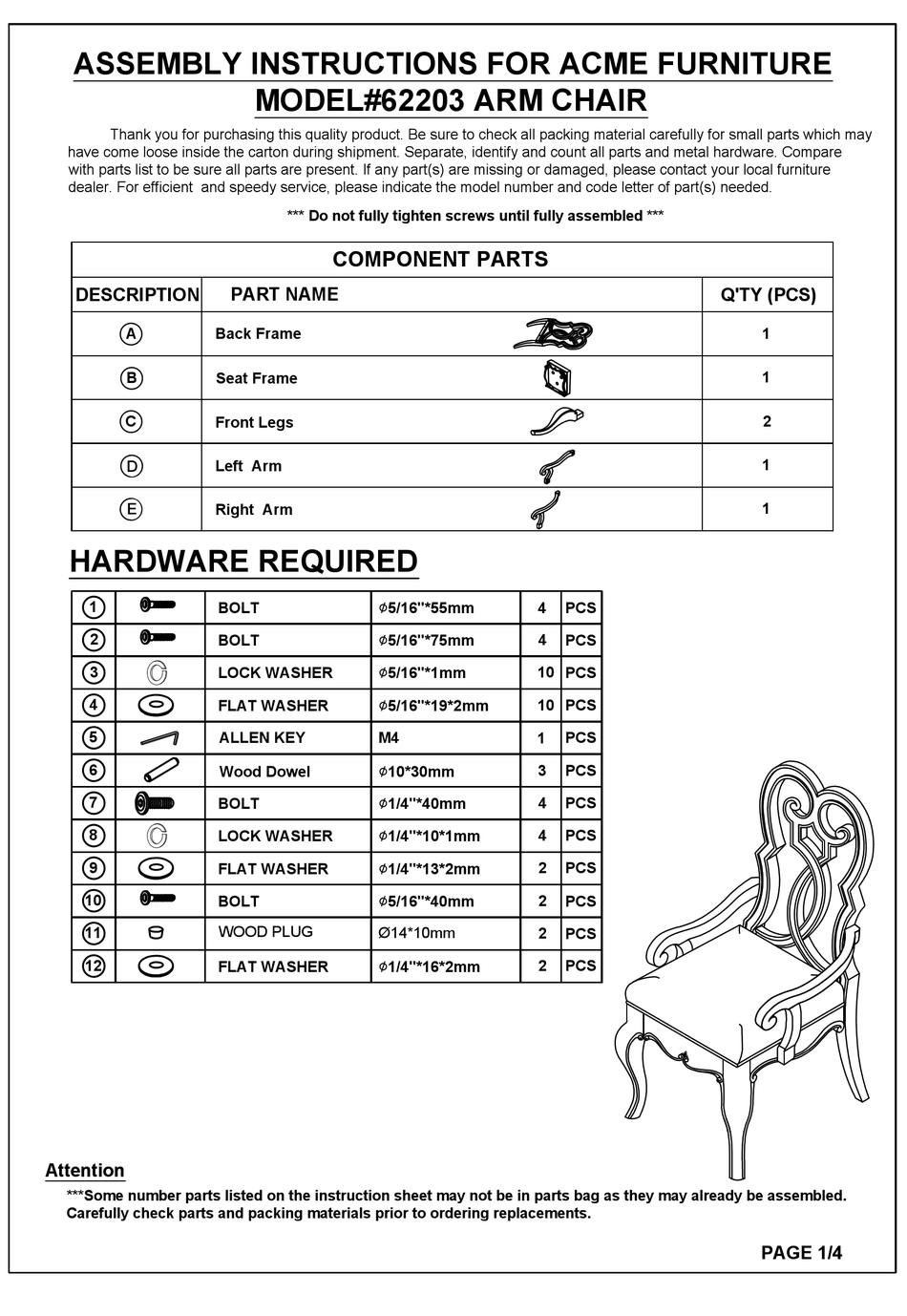

ASSEMBLY INSTRUCTIONS FOR ACME FURNITURE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare
with parts list to be sure all parts are present. If any part(s) are missing or damaged, please contact your local furniture
dealer. For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
DESCRIPTION
A Back Frame
B Seat Frame
C
Front Legs
Ｄ
B Left Arm
Ｅ
C Right Arm
HARDWARE REQUIRED
1
2
3
4
5
6
7
8
9
10
11
12
Attention
***Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.

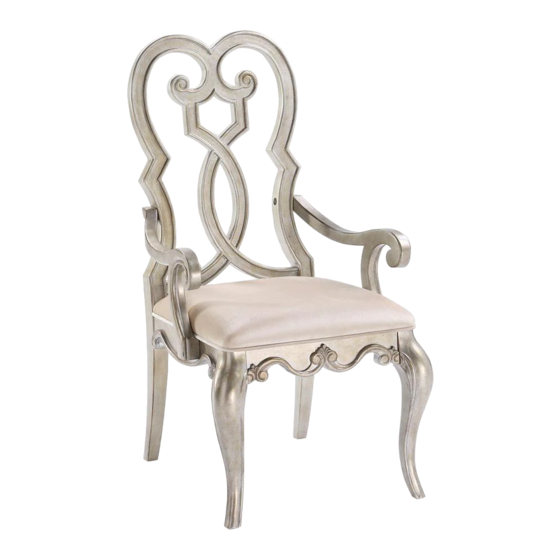

MODEL#62203 ARM CHAIR
*** Do not fully tighten screws until fully assembled ***
COMPONENT PARTS
PART NAME
BOLT 5/16"*55mm
∅
BOLT 5/16"*75mm
∅
LOCK WASHER 5/16"*1mm
∅
FLAT WASHER 5/16"*19*2mm
∅
ALLEN KEY
M4
Wood Dowel 10*30mm
∅
BOLT 1/4"*40mm
∅
LOCK WASHER 1/4"*10*1mm
∅
FLAT WASHER 1/4"*13*2mm
∅
BOLT 5/16"*40mm
∅
WOOD PLUG
Ø14*10mm
FLAT WASHER 1/4"*16*2mm
∅
4 PCS
4
PCS
10 PCS
10 PCS
1 PCS
3 PCS
4 PCS
4 PCS
2 PCS
2 PCS
2 PCS
2 PCS
Q'TY (PCS)
1
1
2
1
1
PAGE 1/4
