Acme Furniture Maurice 62473 Assembly Instruction

Arm chair

ASSEMBLY INSTRUCTION FOR ACME FURNITURE

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may

have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare

with parts list to be sure all parts are present. If any part(s) are missing or damaged, please contact you local furniture

dealer. For efficient and speedy service, please indicate the model number and code letter of part(s) needed.

*** Do not fully tighten screws until assemble ***

DECERPTION

HARDWARE REQIRED:

Attention:

***Mattreses not induded.

***Some number parts instead on instruction sheet may not be in parts bag as they may already be assembled.

Carefully check parts and packing materials prior to ordering replacements.

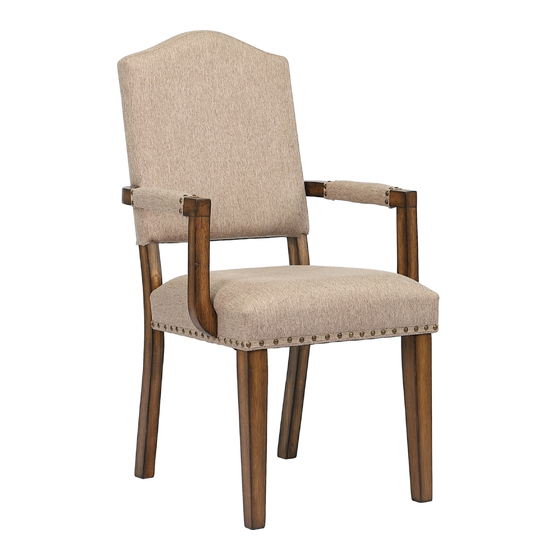

MODEL# 62473 ARM CHAIR

COMPONENT PARTS

BACK FRAME

CUSHION SEAT

WITH FRAME

FRONT LEG

ARM

(LEFT & RIGHT)

ALLEN BOLT M6 x 90mm - 4PCS

ALLEN BOLT M6 x 70mm - 4PCS

ALLEN BOLT M6 x 40mm - 5PCS

ALLEN BOLT M6 x 50mm - 2PCS

(WITH SMALL WASHER)

ALLEN KEY 4MM - 1PC

PART NAME

QTY(PCS)

PAGE 1/2
