Fix the inner duct to inner duct connection plate with 2 screws.

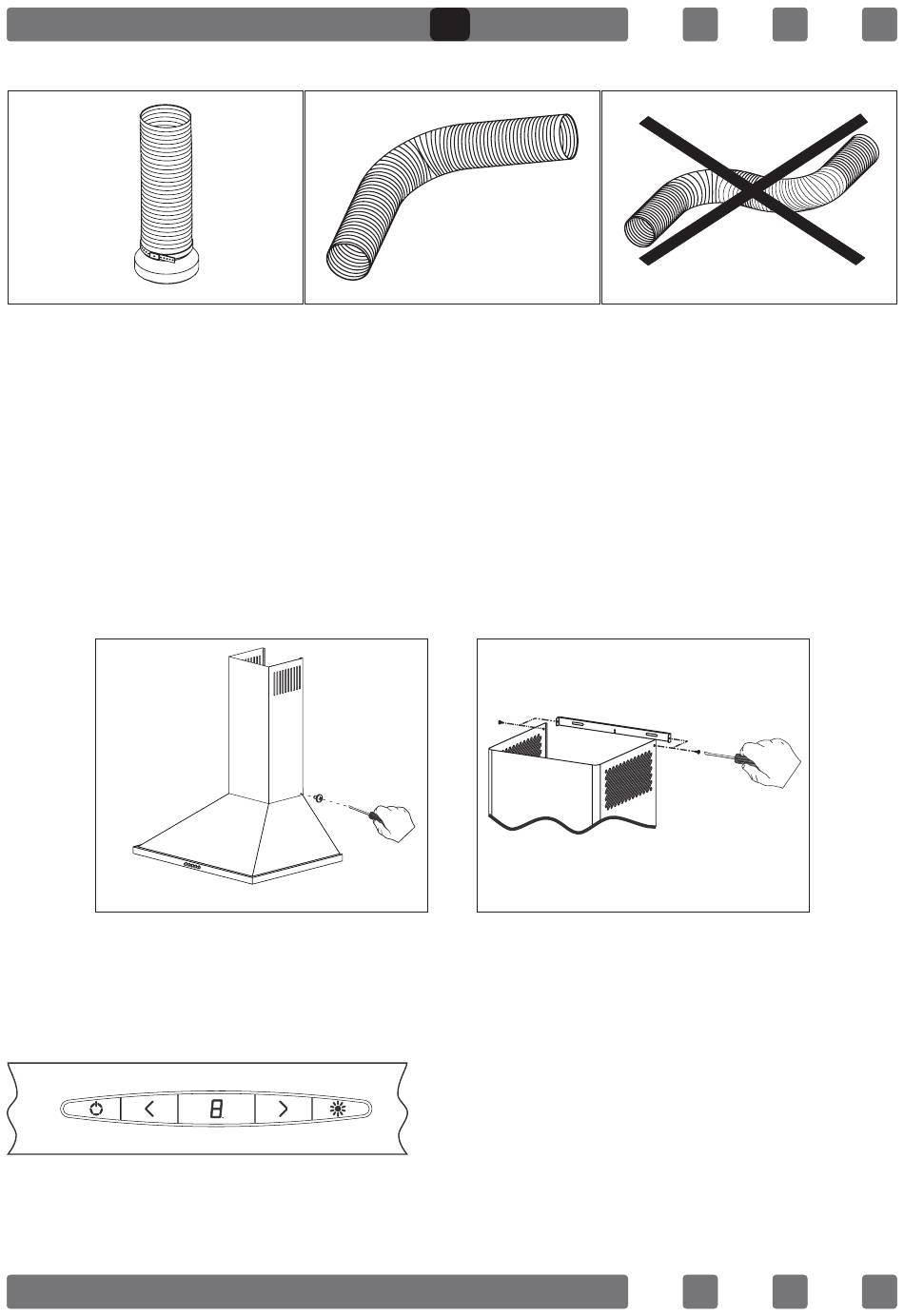

Figure 2

3.4. Installation Of Outer Duct

Put the outer duct on the chimney hood and fix to it by 2 screws (Figure 5)

3.5. Installation of Inner Duct Mounting Bracket

2 fixing holes are drilled on the wall with Ø 6 mm electric drill at a suitable
height and place to fix the inner duct hanger plate onto the wall. 6mm
drywall anchors are nailed into those holes and inner duct mounting
brackrets are pinned down. (Figure 6)
At the last step of chimney hood installation, the inner duct is screwed
on the inner duct mounting brackets.
Figure 5
Note: Packaging may not include inner duct according to model.

4. FUNCTIONS OF THE CHIMNEY HOOD

4.1. Control Panel

If pressed for 3 sec. 15 minutes timer will operate.
GB
Figure 3
Figure 6
Digital Control: Touch the symbols on
the keys. (On/Off function and timer
are on the same key; if pressed for 1
sec on-off function will operate.
9
Figure 4
