Huion INSPIROY H642 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
Product Overview .................................................. 2
Product Connection ................................................ 4
Driver and Setting ................................................. 6
....................................................... 6
..................................................... 22
Digital Pen Basic Operation ........................................ 26
Specifications ..................................................... 30
Troubleshooting Solutions ......................................... 31
.................................................. 2
.............................................. 2
.............................................. 7
................................................... 9
.................................................. 16
H642
1 / 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSPIROY H642 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huion INSPIROY H642

Summary of Contents for Huion INSPIROY H642

  • Page 1: Table Of Contents

    H642 Contents Product Overview ..........2 Tablet Introduction ..........2 Product and Accessories ..........2 Product Connection ..........4 Driver and Setting ..........6 Install Driver ............6 Driver Interface Preview ..........7 Pen Tablet Setting ........... 9 Digital Pen Setting ..........

  • Page 2: Product Overview

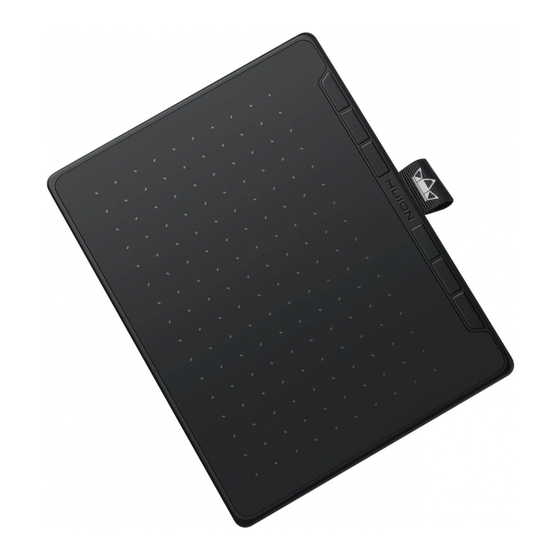

    Product Overview Tablet Introduction Thanks for choosing HUION INSPIROY H642 creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
  • Page 3 H642 Please see the detailed product introduction. After unboxing your package, make sure that you have the following items: Tablet*1 Battery-free Pen*1 Pen Holder*1 Replacement Nibs*10 USB Cable*1 Quick Start Guide*1 3 / 32...

  • Page 4: Product Connection

    H642 Product Connection 1. Wired Connection Connect the tablet to your computer with USB cable. Please follow the steps below: 1. Take out the USB cable from the package, then connect tablet to your computer. 2. Please download the Pen Driver from our website:Driver-H642 3.
  • Page 5 H642 2. Android connection Please follow the steps below: 1. Please make sure your phone & pad OS is as following: Android OS 6.0 or later. 2. For some models, you need to go phone or pad "Settings" then enable "OTG" function.

  • Page 6: Driver And Setting

    H642 Driver and Setting Install Driver Please download the driver from our website: Driver-H642 Note: 1. Before installing driver, please close all graphic software and antivirus program. 2. If you have installed other pen tablet driver, please uninstall it before you install this driver. 3.
  • Page 7 H642 7 / 32...

  • Page 8: Driver Interface Preview

    H642 Driver Interface Preview 1. Pen Tablet Pen Tablet function setting interface, the users can set the tablet function on this interface. See Section 2. Digital Pen The users can set the Pen function on this interface. About Press Key, Mode selection, Pressure Sensitivity Adjustment and Pressure Test.

  • Page 9: Pen Tablet Setting

    H642 Huion Store, where you can get the latest information about the product such as its FAQ or sales promotion. Additionally, you can also purchase other products or accessories on Huion Store. 4. Add Programs You can customize different functions on the current device for different programs.
  • Page 10 H642 You can enter a name for the keystroke, then select the property of the keystroke and customize the function. 1. Keyboard Key Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on.
  • Page 11 H642 2. Mouse Key Select the function of a Mouse or Wheel. Please see the picture below for detailed functions. Mouse: Left Button, Right Button, Middle Button. Wheel: Wheel Forward, Wheel Backward. Double-Left Click. 11 / 32...
  • Page 12 H642 3. Switch Select Switch Screen or Switch Brush. Note: Some software does not support the "Switch Brush" function. 4. Run Program Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press. 12 / 32...
  • Page 13 H642 5. System Application The table below are the functions of Windows and Mac Systems that can be customized on the Keys. 6. Multimedia 13 / 32...
  • Page 14 H642 To realize the functions such as previous song, next song, play/pause, volume up, volume down. 7. None When select None, the keys will have no function. Working Area Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.
  • Page 15 H642 1> Enter coordinate values. 2> Drag the corners of the foreground graphic to select the screen area. 2. Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180°...

  • Page 16: Digital Pen Setting

    H642 Digital Pen Setting 1. Press Key Please refer to it. 16 / 32...
  • Page 17 H642 2. Pen Nib Activity The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In Valid mode, the digital pen can be used normally. In Invalid mode, the digital pen has cursor movement, but cannot complete the specified action.
  • Page 18 H642 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. 18 / 32...
  • Page 19 H642 4. Mode Selection Game Mode: This mode is specially designed for OSU games. OSU game users can turn on the "Game Mode" to increase the cursor's following speed when the pen tip moves quickly. It is not recommended for non-OSU game users. Mouse Mode: When the digital pen moves on the tablet work area, the"absolute coordinate"...
  • Page 20 H642 5. Pressure Sensitivity Adjustment The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to the default state.
  • Page 21 H642 6. Pressure Test You can gradually apply pressure to the stylus on the screen to test the pressure level. Click the Clear button to clear all the ink. 21 / 32...

  • Page 22: Driver Setting

    H642 Driver Setting 1. Device You can view product information. 22 / 32...
  • Page 23 H642 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 23 / 32...
  • Page 24 H642 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates. [4] Hotkey: A hotkey can be used to call out the Driver interface quickly, you can set one according to your usage habits.
  • Page 25 H642 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 25 / 32...

  • Page 26: Digital Pen Basic Operation

    H642 Digital Pen Basic Operation Note: Picture shown is for illustration purposes only. Hold the Pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
  • Page 27 H642 Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
  • Page 28 H642 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. Move Select the object, then slide the pen tip across the screen to move it. 28 / 32...
  • Page 29 H642 Use the side buttons The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the tablet in order to use the switch. 29 / 32...

  • Page 30: Specifications

    H642 Pen Nib Replacement The nib will be wear off after using for a long time, then you need to replace a new nib. 1. Anticlockwise rotate the pen holder to open the cover, take a new nib out. 2. Insert the pen nib into the pen nib clip and tilt the pen to pull out the old nib. 3.

  • Page 31: Troubleshooting Solutions

    You may have installed other tablet drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
  • Page 32 H642 Press Keys does not work. 1. Make sure the Press Keys function were enabled in the driver. 2. Make sure you have correctly defined the Press Keys. 3. Check if the press lock switch is on the unlock position. The side button of the pen doesn't work.
