Summary of Contents for Huion INSPIROY H1060P

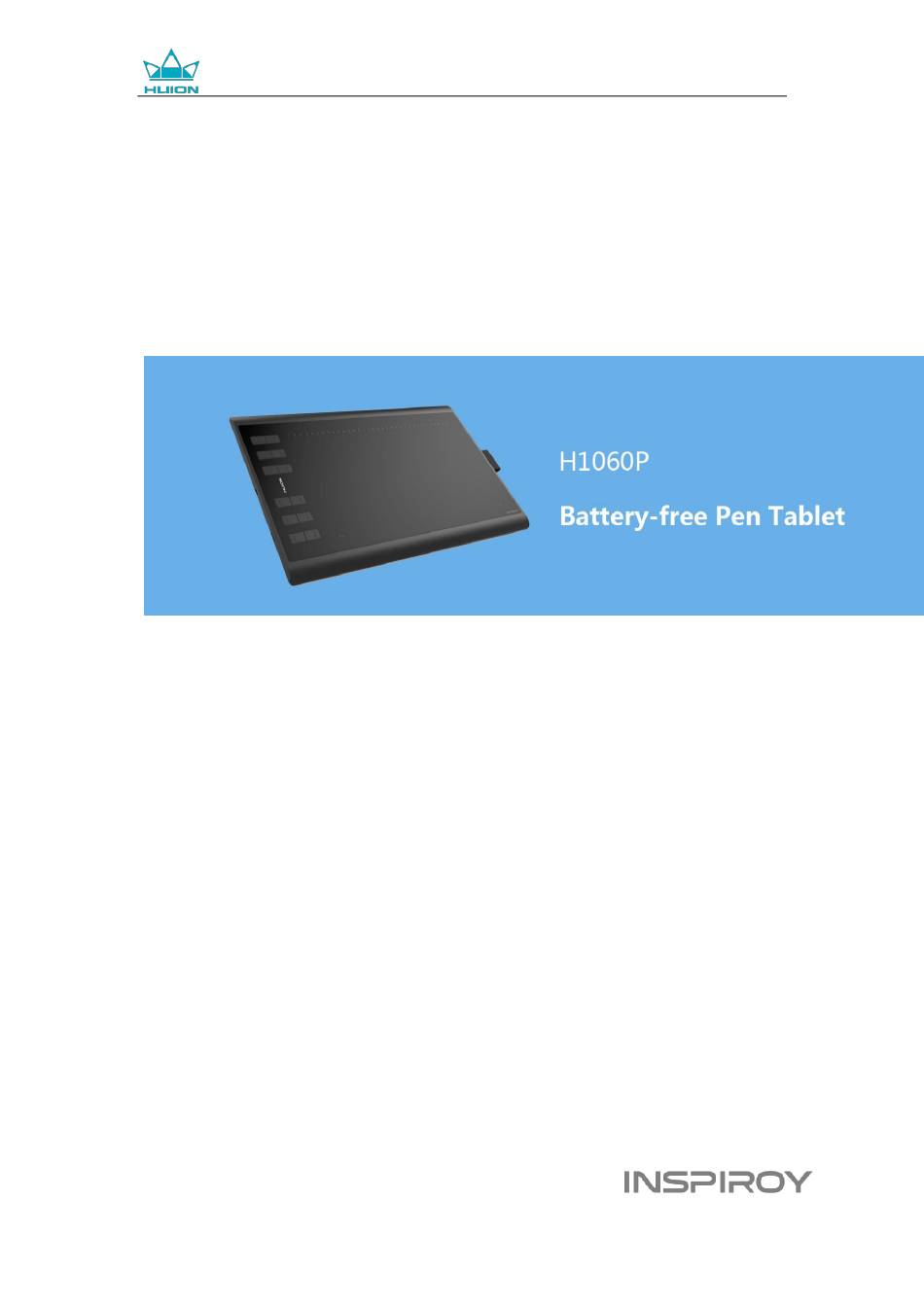

- Page 1 H1060P Battery-free Pen Tablet User Manual For Windows and Macintosh OS...
- Page 2 8. Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock. www.huion.com...
-
Page 3: Table Of Contents
3.7 Enable the Windows Ink feature ..................12 3.8 Data Export and Import ...................... 12 4. Specifications ..........................13 5. Trouble Shooting ........................... 14 5.1 Possible Breakdowns Related to TABLET ................14 5.2 Possible Breakdowns Related to SYSTEM ................14 6. After-service Contact ........................14 www.huion.com... -
Page 4: Product Overview
H1060P Battery-free Pen Tablet 1. Product Overview 1.1 Tablet Introduction Thanks for choosing HUION INSPIROY H1060P graphics tablet. This is a new ® ® generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. -
Page 5: Tablet Connection
H1060P Battery-free Pen Tablet 1.2.2 Packing List 1.3 Tablet Connection 1. Connect the tablet to your computer with USB cable. 1.4 Driver Installation 1.4.1 OS Support Windows 7 or later，macOS 10.11 or later www.huion.com... -
Page 6: Pen Nib Replacement
H1060P Battery-free Pen Tablet 1.4.3 Install Driver Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to... -
Page 7: Product Basic Operation
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click. www.huion.com... - Page 8 The buttonson the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the tablet in order to use the switch. www.huion.com...
-
Page 9: Function Setting
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously. www.huion.com... - Page 10 2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area. 3.2.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°. www.huion.com...
-
Page 11: Press Keys Function Setting
APPLY or OK to take effect. Enable/Disable Press Keys: Check/Uncheck”Enable Press Keys” 3.4 Pen Buttons Function Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 10 / www.huion.com... -
Page 12: Pressure Sensitivity Setting
3.6 Pen Pressure Testing Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink. 11 / www.huion.com... -
Page 13: Enable The Windows Ink Feature
SketchBook 6 and so on. 3.8 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. 12 / www.huion.com... -
Page 14: Specifications
Micro USB Press Keys 12 Customized Press Keys+16 Customized Soft Keys Windows 7 or later, OS Support macOS 10.11 or later Digital Pen Model PW100 Dimension 163.6 x Φ14.5mm Weight Pressure 8192Levels Pen Tilt ±45° Accuracy ±0.3mm 13 / www.huion.com... -
Page 15: Trouble Shooting
Shenzhen, 518106, China Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com Or go to our website (www.huion.com) to get the latest driver and user manual. 14 / www.huion.com...
