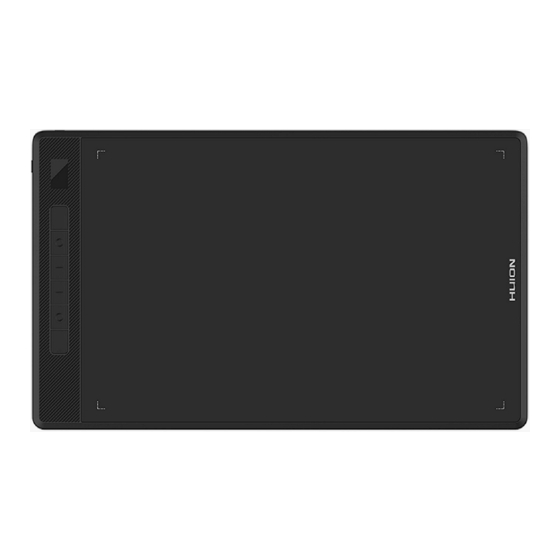

Huion Inspiroy Giano User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
Product Overview ...................................................... 2
......................................................... 2
......................................................... 3
Connection .......................................................... 4
Driver .............................................................. 8
..................................................... 8
.................................................... 11
.................................................... 18
....................................................... 21
How to Use the Digital Pen .............................................. 25
Product Specifications ................................................. 26
Troubleshooting ...................................................... 27
................................................ 9
Inspiroy Giano
1 / 29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inspiroy Giano and is the answer not in the manual?

Questions and answers

Related Manuals for Huion Inspiroy Giano

Summary of Contents for Huion Inspiroy Giano

  • Page 1: Table Of Contents

    Inspiroy Giano Contents Product Overview ............2 Introduction ............2 Accessories ............3 Connection ............4 Driver .............. 8 Driver Installation ............. 8 Driver Interface Overview ..........9 Pen Tablet Setting ............ 11 Digital Pen Setting ............ 18 Driver Setting ............

  • Page 2: Product Overview

    To better understand and use this product, please read this user manual carefully. It shows how to use Inspiroy Giano when you connect it to a computer running Windows operating system. It is also applicable to computers running Mac operating system unless a special note is given out.

  • Page 3: Accessories

    Inspiroy Giano Accessories Please see the detailed product introduction. After unboxing your package, make sure that you have the following items: Pen Tablet*1 Battery-free Digital Pen*1 Pen Holder*1 Standard Pen Nib*5, Felt Pen Nib*5 USB-C Cable*1 Quick Start Guide*1 3 / 29...

  • Page 4: Connection

    Inspiroy Giano Connection You can connect Inspiroy Giano to a computer or an Android device via a USB-C cable or Bluetooth. You can also check the tablet status by watching the smart LCD screen on the top left of Inspiroy Giano.
  • Page 5 30 minutes, the tablet will shut off, then you need to pres it on. You can also change the sleep time in the driver. Wired Connection 1. Take out the USB-C cable from the box, and use it to connect Inspiroy Giano to a computer. 5 / 29...
  • Page 6 Bluetooth. Please follow the steps below: 1. Turn on Bluetooth on your computer or Android device. 2. Press the power button of Inspiroy Giano to start it. (If the tablet does not receive a Bluetooth connection request in 3 minutes, it will shut off automatically.) 3.
  • Page 7 1. Turn on Bluetooth on your computer or Android device. 2. Press the power button of Inspiroy Giano to start it. (If the tablet does not receive a Bluetooth connection request in 3 minutes, it will shut off automatically.) 3.

  • Page 8: Driver

    ② Please make sure your computer operating system is Windows 7 or later/mac OS 10.12 or later. ③ Open the driver and a picture of Inspiroy Giano will appear, indicating that the pen tablet is successfully connected to your computer. Now you can use your pen tablet.

  • Page 9: Driver Interface Overview

    Inspiroy Giano Driver Interface Overview 9 / 29...
  • Page 10 Pressure Sensitivity Adjustment, and Pressure Test. See Section 3. Store Huion Store is where you can get the latest information about the product such as its FAQ or sales promotion. In addition, you can also purchase Huion’s other products or accessories here.

  • Page 11: Pen Tablet Setting

    Inspiroy Giano 4. Add Programs 1. Some programs which have already been opened will appear for you to choose from after clicking Add a Program on the screen. For more programs, click Browser and choose the item that you want to get it added.
  • Page 12 Inspiroy Giano default value. 2. Click a button and assign the function you want to it. (You can choose among the functions below.) Refer to this table of settings below to help you decide if you want to change the existing settings.
  • Page 13 Inspiroy Giano Wheel Forward and Wheel Backward. Other functions: Ctrl, Alt, Shift, and Win. Switch Select between Switch Screen, Switch Brush, Mouse Mode On/Off, and Game Mode On/Off. Run Program Click Browse and select the program that you want to run quickly. After that, press the key to launch the item.
  • Page 14 Inspiroy Giano Note: The pictures are for reference only. Click Customize in the picture above to call out a quick menu (see picture 1). For each of the six buttons on the left, users can enter a name for it and set unique function for it. After that, users can call up the Quick Menu by pressing the key (see picture 2).
  • Page 15 Inspiroy Giano Picture 2 Picture 3 Working Area Select the Working Area tab to adjust the ratio of the distance of pen movement on the pen tablet to that of the corresponding cursor movement on the monitor. If only one monitor is in use: By default the entire active area of pen tablet maps to the whole monitor.
  • Page 16 Inspiroy Giano 1. Working Area Setting Define the active working area of Inspiroy Giano that will be mapped to the monitor. Three modes on the driver can be chosen: [1] Full Area: The entire active area of the pen tablet will be mapped to the monitor. It is the default setting.
  • Page 17 Inspiroy Giano Picture 2 Picture 3 17 / 29...

  • Page 18: Digital Pen Setting

    Inspiroy Giano 2. Rotate Working Area Both left-handed and right-handed users can freely use the pen tablet because it can be rotated by 0°, 90°, 180°or 270°. Digital Pen Setting 1. Press Key You can use this digital pen to interact with your device, including drawing, writing, moving files, or activating the functions of pen press keys.
  • Page 19 Inspiroy Giano 2. Pen Nib Activity The pen nib of the digital pen can be set as Valid/Invalid according to users’ needs. Click the drop-down button to set its activity. In Valid mode, the pen works well, and in Invalid mode, the pen has a cursor movement, but cannot complete specified actions.
  • Page 20 Inspiroy Giano 4. Game Mode/Mouse Mode Game Mode: This mode is ideal for OSU gaming. In Game Mode, you can enjoy exci ting OSU games as the cursor on the monitor speeds up to follow the pen movement. It is not suggested to choo se the Game Mode if you are not playing OSU games.

  • Page 21: Driver Setting

    Inspiroy Giano 5. Pressure Sensitivity Adjustment Users can adjust the pressure sensitivity level by dragging the slider in the Pressure Sensitivity Adjustment box according to your usage habits. Users can also check the five options from soft to hard on the right of the box to find the proper pressure sensitivity for themselves.
  • Page 22 Inspiroy Giano You can view the information of the firmware, the connected product, sleep time, and Device Diagnosis here. You can also move the bar to adjust the brightness of smart LCD screen on the top left of your tablet.
  • Page 23 [5]Low Battery Notification: A pop-out notification with a low battery icon will show up if the battery of INSPIROY Giano is less than 20%. This notification is activated by default. If you want to stop it from appearing again, you can cancel it in the Settings.
  • Page 24 Inspiroy Giano 4. About Users can check the Driver version here. Click “Check for Updates” to find the latest Driver version and then follow the prompts to update the Driver if needed. 24 / 29...

  • Page 25: How To Use The Digital Pen

    Inspiroy Giano How to Use the Digital Pen Hold the Pen: Hold the digital pen as you hold a real pen. Adjust your grip so that you can toggle the pen press keys easily with your thumb or index finger. Be careful not to accidentally press the key while drawing with the pen.

  • Page 26: Product Specifications

    Inspiroy Giano item on the screen and double-click to open it. Move: Pick up a file or icon, then slide the pen nib across the display to move it. Use the Pen Press Keys: There are two press keys on the digital pen, whose functions can be programmed on the driver interface.

  • Page 27: Troubleshooting

    Inspiroy Giano Color: Black Dimension: 429 x 260.9 x 9mm Workspace: 345.44 x 215.9mm Net Weight: 1145g Port: a USB-C port Technical Specifications Digital Pen: PW517 Pen Technology: Battery-Free Electromagnetic Resonance Pen Resolution: 5080 LPI Pressure Sensitivity: 8192 Levels Tilt Support:Support Sensing Height: 10mm Report Rate: ＞300PPS...
  • Page 28 You may have installed other drivers or run the drawing software when installing the driver. Please uninstall all the drivers, close the drawing software, and then reinstall the Huion driver. It's suggested to restart your computer after finishing the installation. Besides if the application is not compatible with the driver or does not support pressure sensitivity, there will also be no pressure sensitivity in this application.
  • Page 29 Inspiroy Giano Please restart your computer or driver; make sure the USB port and USB-C cable work well; unplug the USB cable and plug it again; try another USB port; download and reinstall the latest driver; please whitelist the driver on macOS devices.
