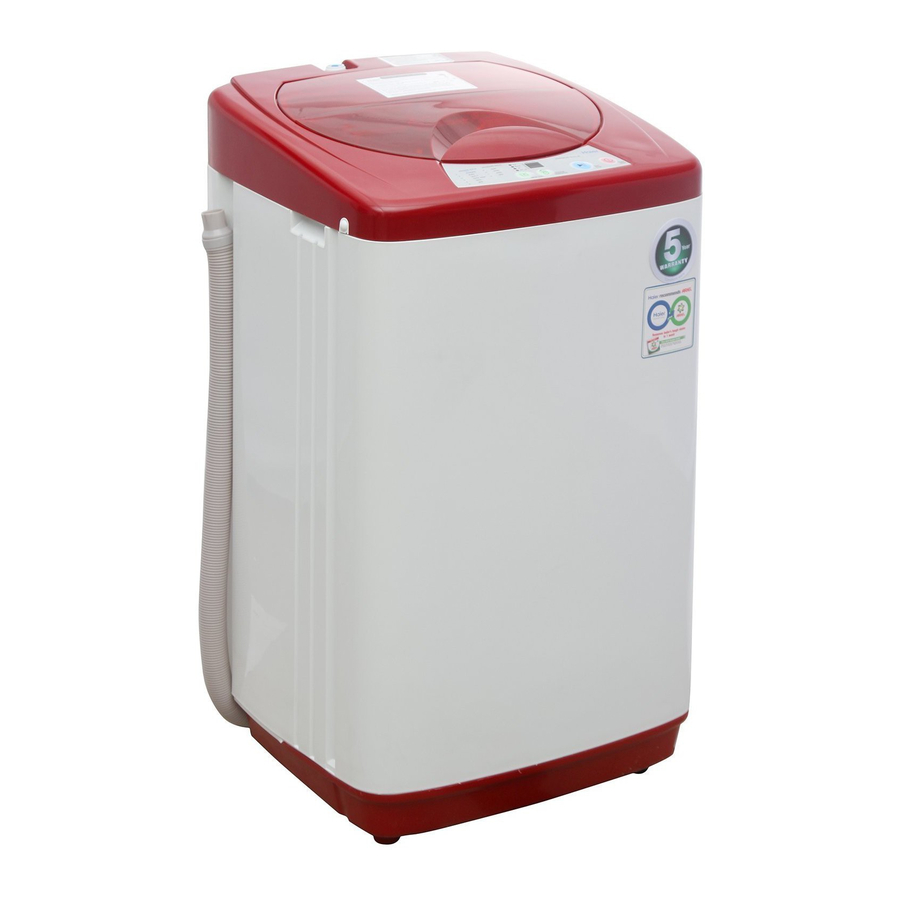

- Page 1 Double-drive automatic washing machine User's manual with pump This manual is for XQS60-78 Please read this manual carefully before using. Retain it for future reference. 0030806076B...
-
Page 2: Table Of Contents
Contents Names of the parts Safety precautions Installation and adjustment Usage of the drain hose Installation the water inlet hose Preparation before washing Put in the laundries Usage of the detergent Use the operation buttons Close the top lid Finish washing Disposal after washing Trouble shooting Answer to question... -
Page 3: Names Of The Parts
Names of the parts Adjustable foot seam Meaning and description of the symbols Warning sign Forbidding sign Please check if the power receptacle has good earthing condition before using to guarantee your safety. Round cover Attachment block Pulsator Water inlet valve Water absorption cushion Cabinet handle... -
Page 4: Safety Precautions
Safety precautions Please insert the power cord into special receptacle with rated vol- tage. Be sure to use single-phase three pins receptacle.The earthing terminal of the receptacle must be earthed reliably .If possible, please adopt electric leakage protector. If the power cord is bad, to avoid risk it is required to replace it by the technicians of our special shop or the after-sale service department. - Page 5 Safety precautions Do not stretch hands into the working machine. It is dangerous even if the rotation is slow. Take special care of the children. Do not put any hot or heavy items (such as the kettle with hot water ) on the washing machine.
-
Page 6: Installation And Adjustment
Installation and adjustment Please install and adjust the machine according to the requirement of the manual It is very important to your security and correct operating the machine. Install the inner cover component Before using the washing machine firstly, please install the inner cover component. 1.Open the top lid of the washing machine. -
Page 7: Usage Of The Drain Hose
Adjust the Installation position The washing machine away from wall should be overrun 20mm. The largest allowable slope of the shank base of the machine is 1 .The slanting or rough ground will result in unstable running or stoppage of the machine. Please adjust it with following methods: Confirm it's horizontal: Hang the lead line to check if it is horizontal. -
Page 8: Installation The Water Inlet Hose
Installation the water inlet hose Confirm the water faucet water faucet, suitable The exit end face of the faucet It is required that the front end shall be longer than 10mm. The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage. Connection between the water inlet hose jointer and the water faucet 1.Press the lower end of the lock lever and push down the slider. - Page 9 Connection between the water inlet hose and the washer 1.Do not take off the water absorption cushion. Please check if the cushion is dropped or damaged before each usage. If it happens please contact our after-sale department immediately. 2 Put the nut of the water inlet hose on the valve jointer.
-
Page 10: Preparation Before Washing
1 Preparation before washing Pay attention to followings before washing the laundries Check if Clear the the laundries pocket. Take has special out the coins, requirement sand, hairpins on washing etc. a. Check if the laundries are applicable for washing with machine. b. -
Page 11: Put In The Laundries
2 Put in the laundries Usage of the detergent Inlet for concentrated washing powder and detergent Access for detergent Detergent box How to use the softener When you use softener, the softener must be lower than the underside of water cap. Please often wash the detergent box, because softener may curdle easily. -
Page 12: Use The Operation Buttons
4 Use the operation buttons Description of the function of buttons Mode and meaning of the indicators Flashing: indicate the running program On: indicate the program about to run, or indicate the selected mode Wash button Soak button Push the soak button to set Push the wash button to the soak procedure. - Page 13 Child lock function Push and hold the water level button and spin button, then push down the power on/off button. The digitron displays CL . You can continue setting desired washing procedures. After setting, push down the start/pause button. The child lock function is activated. All of the buttons are locked and cannot make selection.
- Page 14 b Steps of using the operation buttons and description of each step. Push the "POWER ON/OFF " button to switch on the power. After switch on the power ,the machine will set have no disinfect function . If select the disinfect function.Push the rinse/disinfect button .when the disinfect is indicating .please refer 2 to operating or refer 3 to operating.
- Page 15 After switching on the power, the washing machine will set to common program including"wash, rinse,spin "automatically. To select other procedures, push the "soak", " wash", " rinse" or "spin" button to select the time of soak, wash and spin, and the times of rinse. After switching on the power, if you push one of the button among "wash", "rinse"and"spin", the digitron of the former procedures will turn off automatically.
-
Page 16: Close The Top Lid
Push the "reserve" button to select suitable reserve wash program After switching on the power, the reserve program is set to off mode automatically. If you need to set the washing procedure to be finished at reserved time, please push the " reserve " button to set the reserve wash program. Refer to reserve button in Page 11 for selection Confirm the operation of reserve program When the "reserve"... -
Page 17: Disposal After Washing
Disposal after washing After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence your using the machine. Please first pull off the power plug from the receptacle before cleaning. Clean the detergent box and set it on the control panel seat. -
Page 18: Trouble-Shooting Answer To Question
Trouble-shooting Answer to question (If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company. -
Page 19: Packing List
Packing list Name User's manual Warranty card The end connecting to the washing machine Jointer connecting the water inlet hose to the water faucet The end connecting to the water inlet hose jointer Inner cover component Bottom plate Tapping screws Double-drive automatic washing machine Specification Water level/Water quantity (about)
