SolaX Power X3-Fit-6.0-W Quick Installation Manual

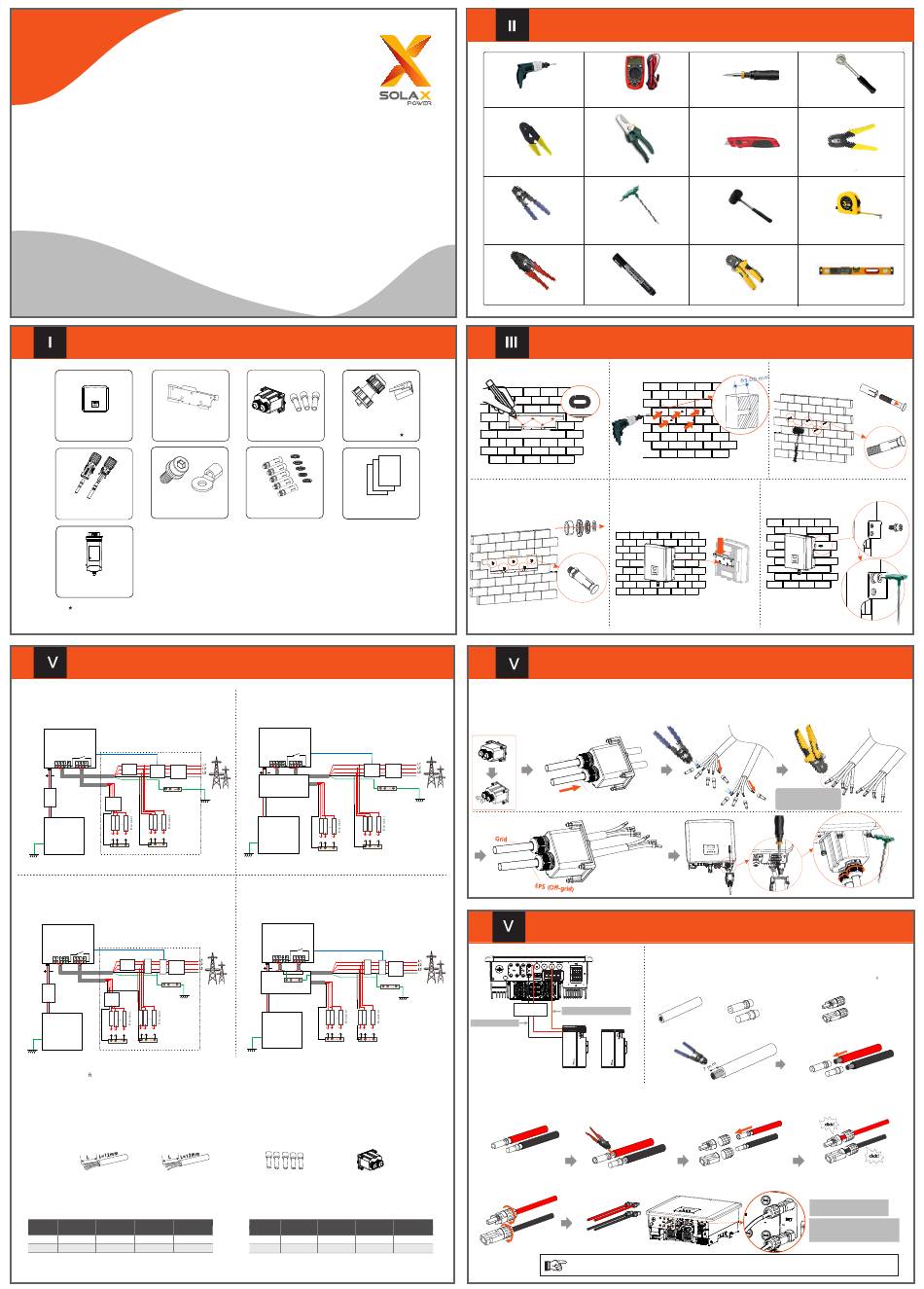

Quick Installation Guide
X3-Fit 6.0KW-15.0KW
Packing List

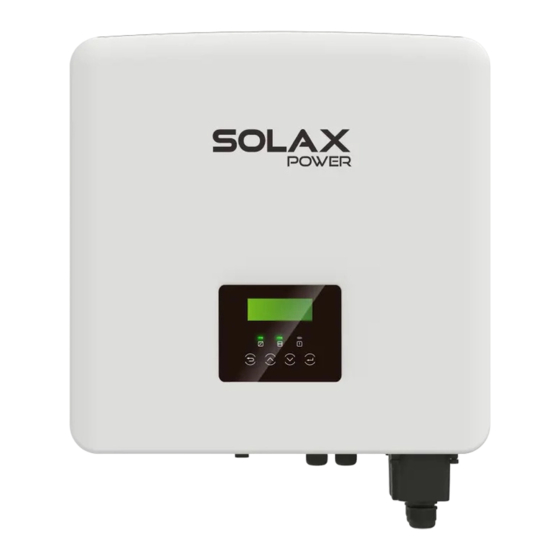

Inverter
Wall-mount Bracket
M5 inner hexagon bolt*1
Battery connection
OT terminal*1
*1
terminal
*1
Wifi Dongle


Note: " " The inverter in Australia needs to be connected to DRM, which is 1 more communication line adapter than that in other countries ☆
Grid and EPS (Off-grid) Connection
I
Diagram A: N line and PE line separate wiring ;
(For most countries)
Inverter
Breaker Main Breaker/RCD
BAT Grid EPS (Off-grid) Meter
E-BAR
Breaker
RCD
Distribution Box
Battery Loads
EPS (Off-grid) loads
N-BAR for EPS (Off-grid) loads N-BAR for loads
Diagram C: N line and PE line together;
( Applicable to Australia)
Inverter
Breaker
RCD Main Breaker
Meter
BAT EPS (Off-grid)
Grid
N
E-BAR
Breaker
RCD
Distribution Box
Battery Loads
EPS (Off-grid) loads
N-BAR for EPS (Off-grid) loads N-BAR for loads
Note: The RCD on the gure represents a leakage protection device with a circuit breaker function.
* The Grid and the EPS (Off-grid) ports of the inverter have been connected, for specific installation details, please refer to the X3-Matebox
Quick Installation Guide and the W series needs to be wired according to the following steps.
Step 1. Prepare a Grid cable (five-core wire) and an EPS (Off-grid) cable (four-core wire), and then find the European terminal and waterproof cover
in the accessory bag.
6 mm² Grid (five-core wire) 6 mm² EPS (Off-grid) ((four-core wire)
Grid Cable and Micro-breaker recommended
X3-Fit-6.0-W X3-Fit-8.0-W X3-Fit-10.0-W
X3-Fit-15.0-W
Model
X3-Fit-6.0-M X3-Fit-8.0-M X3-Fit-10.0-M X3-Fit-15.0-M
4~6mm² 5~6mm² 5~6mm²
Cable (copper) 4~6mm²
Micro-Breaker 20A 32A 40A
Communication line
Waterproof connector*1 RJ 45 adapter*3
6 mm² Euopean (Meter/COM/BMS)
terminals *12
RJ45 terminals*6
(Expansion bolt ,Gasket,
Documentations
Self-tapping bolt)*5
Diagram B: N line and PE line separate wiring ;
(For most countries)
Inverter
EPS (Off-grid) Meter
BAT Grid
N
X3-Matebox
Grid
Battery
EPS (Off-grid) loads
N-BAR for loads
N-BAR for EPS (Off-grid) loads
Diagram D: N line and PE line together;
( Applicable to Australia)
Inverter
RCD Meter
BAT Grid EPS (Off-grid)
N
N
E-BAR
X3-Matebox
Grid
Battery
EPS (Off-grid) loads
Loads
N-BAR for loads
N-BAR for EPS (Off-grid) loads
6 mm² Euro Terminal*10 Waterproof cover
EPS (Off-grid) Cable and Micro-breaker recommended
X3-Fit-6.0-W X3-Fit-8.0-W X3-Fit-10.0-W
Model
X3-Fit-6.0-M X3-Fit-8.0-M X3-Fit-10.0-M
4~6mm²
Cable (copper) 4~6mm²
40A
Micro-Breaker 16A 20A
Hammer drill（Bit Φ8)
OT terminals press clamp
(0.5~6mm²)
Diagonal pliers
Crimping Tool
a ) Use a marker to mark drilling holes of the
bracket on the wall.
☆
a)
d ) The bracket is aligned with the screw uses
the inner hexagonal wrench to screw the
tapping screw until the expansion bolt
"bang" is heard.
d)
I
Step 2: First remove the waterproof housing plug, The GRID and EPS (Off-grid) cables go through the corresponding GRID and EPS (Off-grid) ports
of the waterproof cover. Remove the 12mm insulation layer at the end of the wire. Insert the European-style terminals respectively, and make sure
that the stripped ends are inserted into the European-style terminal, and use crimping pliers to press tightly. And locked in the Grid and EPS (Off-
grid) ports respectively. Finally, lock the waterproof cover screw.
Main Breaker/RCD
N
Grid
E-BAR
Loads
Battery connection diagram:
Main Breaker
N
Upgrade/Dongle
Grid
E-BAR
Non-polar
DC MCB
Power line connection
+
-
Note:
When using the battery, it is
recommended to use the number of
battery control (T-BAT-5.8) is 1,
the number of battery modules (HV11550) is 1-3; the number of battery control
(MC0600) is 1, the number of battery modules (HV10230) is 2-4.
Step 3. The BAT joint is divided into 2 parts, to the plug and the fastening head. Pass the cable through the fastening head and the
alignment plug. Note that the red and black lines correspond to different pairs of plugs. Finally, force the cable into the plug and hear a
"click" to indicate that the connection is completed.
Positive metal Negative metal
terminal terminal
Step 4. Tighten the fastening head and insert into the corresponding positive and negative (BAT-/BAT+) parts of the inverter.
Positive
X3-Fit-15.0-W
X3-Fit-15.0-M
4~6mm² 4~6mm²
Negative
25A 32A
Tool Preparation
Multimeter
Torque screwdriver
DC Voltage range ≥1100 V DC
Diagonal plier
Hexagon keys
Marker Euro terminal crimping tool
Mounting Steps
b) Drill holes at marked spots with depth of 65 mm.
Φ8 Hammer drill
e) Hang the buckle on the inverter to the
corresponding position of the backplane.
nut, Gasket,
e)
Grid and EPS (Off-grid) Connection
Crimping Tool
Grid
EPS (Off-grid)
Battery Connection
Battery port connection line of the inverter is on the X3-Matebox,for specific
installation details, please refer to the X3-Matebox Quick Installation Guide. It is
com
necessary to wire the inverter according to the following steps.
Step 1. Turn off the DC switch, connect the BAT module, prepare a 6 mm BAT
EPS(EPS)
cable, and find the BAT (+) terminal and BAT (-) terminal in the package.
Communication line connection
BAT cable
CAN/RS485
Step 2. Use a wire stripper to strip the 7 mm insulation layer of the wire end.
... ...
High voltage lithium battery
Wire stripper
Positive terminal
Crimping Tool
BAT1+
BAT2+
BAT1- BAT2-
Notice!
After the BMS communication between the battery and the inverter is finished, the battery will work normally.
(Crosshead M5) Socket wrench set (Hexagon)
Multifunction terminal crimping
Utility knife
tool (RJ45)
Rubber hammer Tape measure
Spirit level
c) Insert expansion bolt into the hole, use
rubber hammer to knock the expansion
screw bolt into the wall.
Expansion bolts,
Tapping screws,
Hammer
c)
f ) Use the inner hexagonal wrench to tighten
the inner hexagonal screw on the right side of
the inverter.
f )
Inner hexagonal wrench
(Torque :1.2±0.1 N·m)
Diagonal pliers
※Note: Please press
European terminal into
a 3.3.*3.3mm square.
Torque screwdriver
( Torque: 0.7±0.1N·m)
Hexagon keys
( Torque: 1.2±0.2N·m)
Positive terminal
Positive BAT pin
Negative BAT pin Negative terminal
Positive BAT pin
Negtive BAT pin
Negative terminal
Note: BAT port (Blue one)
not PV port(Black one)
Note: The positive and negative
wires of the battery are not
allowed to be reversed!
