- Page 1 AC Charger User Manual ---X1-AE-7.0 -- ---X1-AE-11.0 --...
-
Page 2: Table Of Contents
Contents Preface................- 2 - Safety Instruction ..............- 2 - 1 Product Overview ..............- 3 - 1.1 Product Introduction ............- 3 - 1.2 Schematic Diagram ............- 3 - 1.3 Specification Parameter ............- 4 - 1.4 Performance and Characteristics ..........- 5 - 1.5 Working Environment ............ -
Page 3: Preface
Before any operation, please read the user manual carefully to understand the correct use of the device. After reading, please keep the user manual for future review. The input and output voltages of this device are dangerous high voltage, which can endanger human life safety. -
Page 4: Product Overview

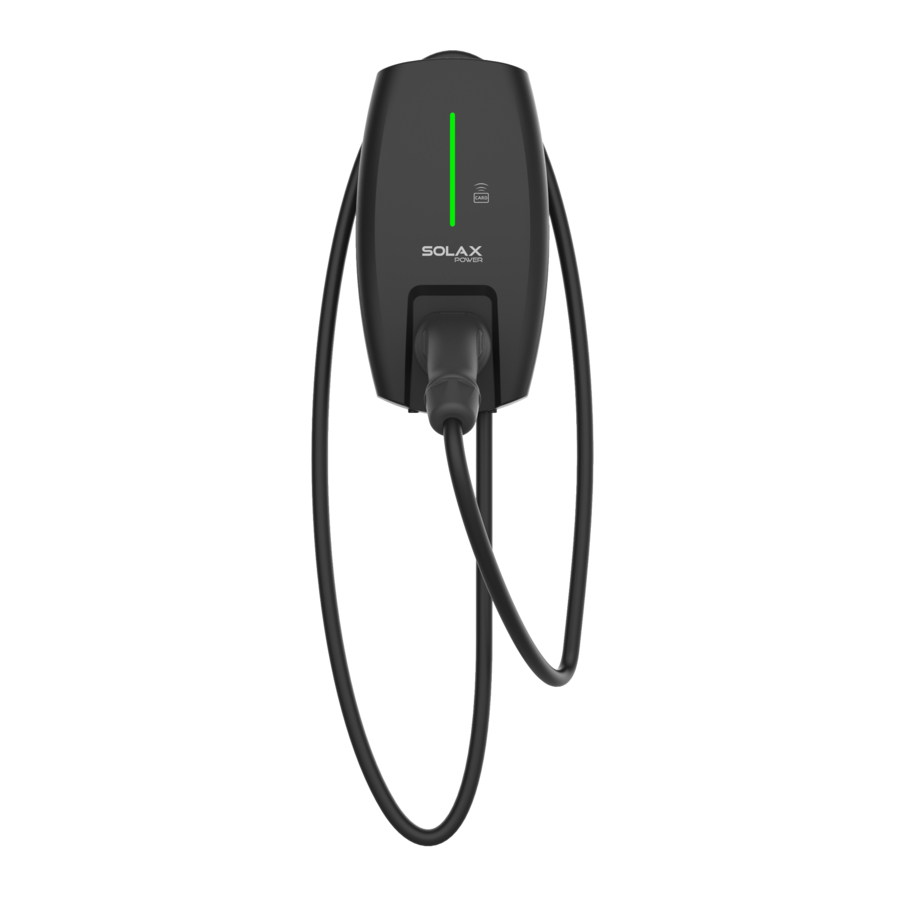

1 Product Overview 1.1 Product Introduction The single phase AC charger is used for electric vehicle’s AC charging, with the function of charging by scanning the RFID card. The RFID card is a key component to start or stop the charging session. The LED indicator on the front panel helps you understand what is happening with the charger by indicating different colors. -
Page 5: Specification Parameter
1.3 Specification Parameter Model No. X1-AE-7.0 X3-AE-11.0 User Interface LED indicator, RFID card reader Housing Material Plastic Installation Way Wall-mount (default), Floor-stand (optional) Card Quantity 2pcs Configuration Charging Outlet One charging gun type 2 Product 325*181*87mm ( L*W*H ) Dimension Net Weight 3.01KG... -
Page 6: Performance And Characteristics
Communicatio Charger v.s. Backend communication: WiFi Internet Communication Protocol: OCPP 1.6 1.4 Performance and Characteristics Performance: LED Indicator: Different light color indicate different working status of the charger. RFID Card: Built-in card reader to realize the function of charging with RFID card. Scan RFID card first to start charging, and scan RFID card again to end charging. -
Page 7: Product Naming
1.6 Product Naming - AE Max Power 7kW A:Charging gun type 2 E:Electric Vehicle charger Single phase 1.7 Product Structure 1.7.1 External Structure (unit:mm) - 6 -... -
Page 8: Internal Structure
1.7.2 Internal Structure - 7 -... -
Page 9: Operation Instruction
2 Operation Instruction 2.1 Product Installation 2.1.1 Package Verification Unpack to check and verify following items after receiving the charger: Visual inspection on external appearance. In case there is any broken or damage, notify the seller immediately. Check accessory type and quantity. If there is quantity in short or type inconformity, make the record in time and contact the seller at once. -
Page 10: Installation Process
Name Specification Quantity Power supply cable Depend on actual requirement 3*6mm² single-phase power supply cable 2.1.3 Installation Process 1) Installation Notice a) Electrical device should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by the manufacturer for any consequences arising out of the use of this device. A qualified person is one who has skills and knowledge related to the construction, installation and operation of electrical device and who has received safety training to recognize and avoid the hazards involved. -
Page 11: Power-On Checking
2.2 Power-on Checking 1) Check before Power-on Please check the followings before any operation: The charger’s location is easy for operation and repairing. Double confirm the charger is installed properly. AC input’s current leakage protection switch is reasonable. No other stuff or component left on the top of the charger. 2）Power-on Charger 1. -
Page 12: Charging Operation
3）WIFI connection Connect the charger to the backend through the user APP. Once the charger connected with the wifi successfully, the charger can be used for charging. 2.3 Charging Operation 2.3.1 Connect Charger to EV Park EV near to the charger, and plug its guns into the EV. After plug-in, please check the gun is correctly and tightly connected. - Page 13 Leakage current fault Fault Flashing red, 500ms on, 500ms off, 3 times, 3S off, Cycle Input terminal Fault Flashing red, 500ms on, 500ms off, 4 times, 3S off, Cycle overtemperature Relay overtemperature Fault Flashing red, 500ms on, 500ms off, 5 times, 3S off, Cycle Under voltage fault Fault Flashing red, 500ms on, 500ms off, 6 times, 3S off, Cycle...
- Page 14 2. If the frequency exceeds 55Hz for a short time, wait till power grid recover to normal voltage range. Input lower AC input frequency may be 1. Check the input voltage frequency from the frequency too low. backend. 2. If the frequency is lower than 45Hz for short time, wait till power grid recover to normal voltage range.
-
Page 15: Disposal
4 Disposal The packaging materials are environmentally friendly and can be recycled. Put the packaging in applicable containers to recycle it. Do not dispose this device with the household waste. It shall be handed over to the applicable collection point for the recycling of electrical and electronic device. For more detailed information about recycling of this device, please contact your local city office, your household waste disposal service or the shop where you purchased the device. - Page 16 SolaX Power Network Technology (Zhejiang) Co. , Ltd. Room 220, West Building A, National University Science and Technology Park of Zhejiang University 525, Xixi Rd, Hangzhou, Zhejiang Province, China, 310007 http://www.solaxpower.com. Due to the solax policy of continual product development;...
