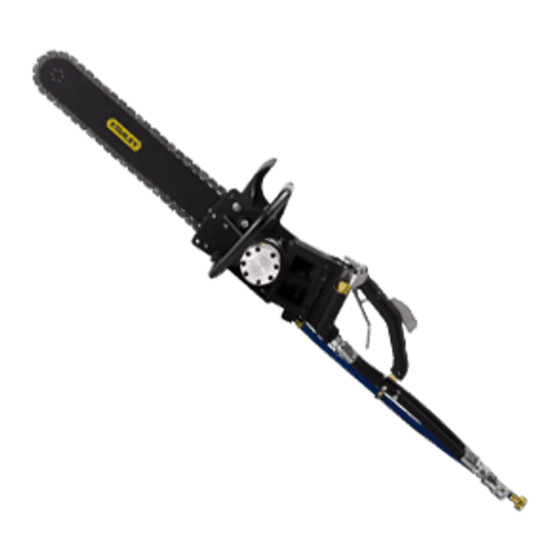

Hydraulic utility saw
Hide thumbs Also See for DS1231801:

Advertisement

Quick Links

Infrastructure
Safety, Operation & Maintenance
DS12 Hydraulic Utility Saw
71069 User Manual 2/2022 Ver. 21
DECLARATION OF CONFORMITY
ÜBEREINSTIMMUNGS-ERKLARUNG
DECLARATION DE CONFORMITE CEE
DECLARACION DE CONFORMIDAD
DICHIARAZIONE DI CONFORMITA
______________________________________________________________________
I, the undersigned:
Ich, der Unterzeichnende:
Je soussigné:
El abajo firmante:
lo sottoscritto:
hereby declare that the equipment specified hereunder:
bestätige hiermit, daß erklaren Produkt genannten Werk oder Gerät:
déclare que l'équipement visé ci-dessous:
Por la presente declaro que el equipo se especifica a
Dichiaro che le apparecchiature specificate di seguito:
1.
Category:
Kategorie:
Catégorie:
Categoria:
Categoria:
2.
Make/Marke/Marque/Marca/Marca
3.
Type/Typ/Type/Tipo/Tipo:
4.
Serial number of equipment:
Seriennummer des Geräts:
Numéro de série de l'équipement:
Numero de serie del equipo:
Matricola dell´attrezzatura:
Has been manufactured in conformity with
Wurde hergestellt in Übereinstimmung mit
Est fabriqué conformément
Ha sido fabricado de acuerdo con
E' stata costruita in conformitá con
Directive/Standards
Richtlinie/Standards
Directives/Normes
Directriz/Los Normas
Direttiva/Norme
EN ISO
EN ISO
EN ISO
Machinery Directive
5.
Special Provisions:
Spezielle Bestimmungen:
Dispositions particulières:
Provisiones especiales:
Disposizioni speciali:
Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France.
6.
Vertreter in der Union/Représentant dans l'union/Representante en la Union/Rappresentante presso l'Unione
Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA
Signature/Unterschrift/Signature/Firma/Firma
Position/Position/Fonction/Cargo/Posizione
Nuerenberg, David
Surname and First names/Familiennname und Vornamen/Nom et prénom/Nombre y apellido/Cognome e nome
continuación:
Utility Chainsaw, Hydraulic
STANLEY
DS1231801
All
No.
Approved body
Nr
Prüfung durch
Numéro
Organisme agréé
No
Aprobado
n.
Collaudato
5349
Self
3744 (15744)
Self
13732-1
Self
2006/42/EC:2006
Self
None
North America Quality Manager
Date/Datum/le/Fecha/Data
4-30-2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS1231801 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stanley DS1231801

  • Page 1 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA...
  • Page 2 2 | DS12 User Manual...
  • Page 3 90° DS12 User Manual | 3...
  • Page 4 13 14 4 | DS12 User Manual...
  • Page 5 12 13 14 16 17 18 19 21 22 23 DS12 User Manual | 5...
  • Page 6 Cap Screw - 5/16-18 X 3/4 21417 Front Bearing Housing 22798 Seal Kit (not shown) - *In seal kit 88345 Importer Label - Model DS1231801 28323 CE Label - Model DS1231801 DS12 Handle Parts Illustration - Detail G 00669 Quad Ring...
  • Page 7: Safety Precautions

    • Inspect the tool before each use and ensure all decals are legible. implementation of safety devices, certain residual risks cannot be Contact STANLEY if replacements are needed. avoided. These risks are: repetitive strain injury due to incorrect posture •...
  • Page 8 Use and maintain as recommended in the manual to prevent an unnecessary increase in vibration. • Check the vibration level after each service. If higher than normal, contact your STANLEY dealer. Hydraulic • Warning: Hydraulic fluid under pressure could cause skin injection injury.
  • Page 9: Tool Setup

    Power up the hydraulic power supply. Male Hydraulic Coupler Plan the Cut Female Hydraulic Coupler 10. If cutting pipe 8 - 12 inches in diameter, STANLEY recommends using Water Hose the pipe clamp accessory. See “Installing and Using the Saw Clamp Accessory” on page 10.
  • Page 10: Maintenance

    Pressure can be applied to the cut until the saw motor starts to lug. does not stop when the trigger is released. Immediately power down the hydraulic power supply. Contact your STANLEY dealer for service. Maintenance Note: Release the trigger in case of interruption of the hydraulic power supply.
  • Page 11: Troubleshooting

    Hydraulic Oil Hydraulic oil can contaminate the air, ground and water if not properly Contact your STANLEY recycled. Recycle hydraulic oil in accordance with all State, Federal and local Mechanical failure. dealer for service. laws, at your local oil recycling facility.
  • Page 12 STANLEY Infrastructure 6430 SE Lake Road, Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com © 2014 Stanley Black&Decker, Inc. New Britain, CT 06053 USA...
