Safety, Operation & Maintenance
DS12 Hydraulic Utility Saw
71069 User Manual 9/2020 Ver. 20
DECLARATION OF CONFORMITY
ÜBEREINSTIMMUNGS-ERKLARUNG
DECLARATION DE CONFORMITE CEE
DECLARACION DE CONFORMIDAD
DICHIARAZIONE DI CONFORMITA
______________________________________________________________________
I, the undersigned:
Ich, der Unterzeichnende:
Je soussigné:
El abajo firmante:
lo sottoscritto:
hereby declare that the equipment specified hereunder:
bestätige hiermit, daß erklaren Produkt genannten Werk oder Gerät:
déclare que l'équipement visé ci-dessous:
Por la presente declaro que el equipo se especifica a
Dichiaro che le apparecchiature specificate di seguito:
1.
Category:
Kategorie:
Catégorie:
Categoria:
Categoria:
2.
Make/Marke/Marque/Marca/Marca
3.
Type/Typ/Type/Tipo/Tipo:
4.
Serial number of equipment:
Seriennummer des Geräts:
Numéro de série de l'équipement:
Numero de serie del equipo:
Matricola dell´attrezzatura:
Has been manufactured in conformity with
Wurde hergestellt in Übereinstimmung mit
Est fabriqué conformément
Ha sido fabricado de acuerdo con
E' stata costruita in conformitá con
Directive/Standards
Richtlinie/Standards
Directives/Normes
Directriz/Los Normas
Direttiva/Norme
EN ISO
EN ISO
EN ISO
Machinery Directive
5.
Special Provisions:
Spezielle Bestimmungen:
Dispositions particulières:
Provisiones especiales:
Disposizioni speciali:
Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France.
6.
Vertreter in der Union/Représentant dans l'union/Representante en la Union/Rappresentante presso l'Unione
Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA
Signature/Unterschrift/Signature/Firma/Firma
Position/Position/Fonction/Cargo/Posizione
Nuerenberg, David
Surname and First names/Familiennname und Vornamen/Nom et prénom/Nombre y apellido/Cognome e nome
continuación:
Utility Chainsaw, Hydraulic
STANLEY
DS1231801
All
No.
Approved body
Nr
Prüfung durch
Numéro
Organisme agréé
No
Aprobado
n.
Collaudato
5349
Self
3744 (15744)
Self
13732-1
Self
2006/42/EC:2006
Self
None
North America Quality Manager
Date/Datum/le/Fecha/Data
4-30-2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stanley DS12

  • Page 1 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA...
  • Page 2 2 | DS12 User Manual...
  • Page 3 90° DS12 User Manual | 3...
  • Page 4 13 14 4 | DS12 User Manual...
  • Page 5 10 11 12 14 15 16 17 19 20 21 DS12 User Manual | 5...
  • Page 6 DS12 Main Body Parts Illustration - Detail F DS12 Handle Parts Illustration - Detail G ITEM DESCRIPTION ITEM DESCRIPTION 81779 Handle Retainer 28552 Valve Handle Assembly - Includes part 08104. Must purchase with 73583 Hand Guard Spacer part 74841. 73582...
  • Page 7: Safety Precautions

    • Inspect the tool before each use and ensure all decals are legible. implementation of safety devices, certain residual risks cannot be Contact STANLEY if replacements are needed. avoided. These risks are: repetitive strain injury due to incorrect posture •...
  • Page 8 Do not operate the tool at fluid temperatures above 140°F (60°C). Higher temperatures can cause operator discomfort and damage to the tool. • Do not exceed the rated flow and pressure as stated on the tool. Rapid failure of the internal seals may result. 8 | DS12 User Manual...
  • Page 9: Tool Setup

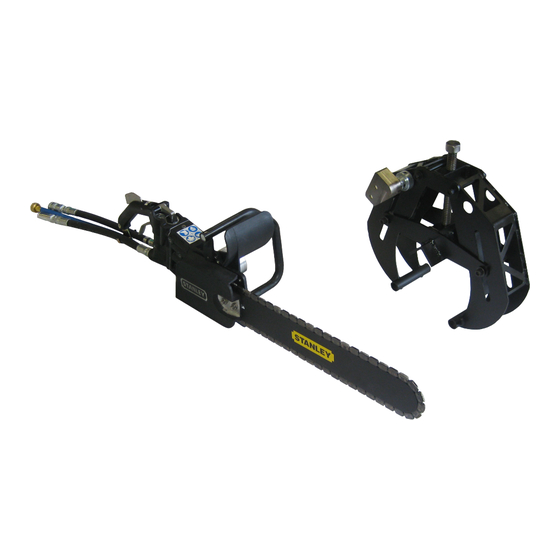

    What is a DS12 Hydraulic Utility Saw Tool Setup DS12 is a chain saw designed for ductile iron to plastic pipe. Utilizing a brazed layer diamond coating on a durable chain chassis, this technology provides improved access with far less excavation in a confined space such as Chain saw chains and bars are very sharp.
  • Page 10: Maintenance

    Install DS12 to the axle of the saw clamp over the chain guard. Tool Use Re-install the chain guard hardware.
  • Page 11: Troubleshooting

    Tension chain. See “Check & Adjust Chain Loose chain tension Tension - Detail B” on Tool vibrates and cuts page 9 rough. Do not use cutting Too much force while force over 45 Lbs. (20 cutting. Kg). DS12 User Manual | 11...
  • Page 12 STANLEY Infrastructure 6430 SE Lake Road, Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com © 2014 Stanley Black&Decker, Inc. New Britain, CT 06053 USA...

This manual is also suitable for:

Ds1231801
