CSA40015
Rev CSA40015-20070612
10006 Santa Fe Springs Road
Santa Fe Springs, CA 90670 USA
Made in China
Owner's Manual and Operating Instructions
3500 Peak Watts/3000 Running Watts

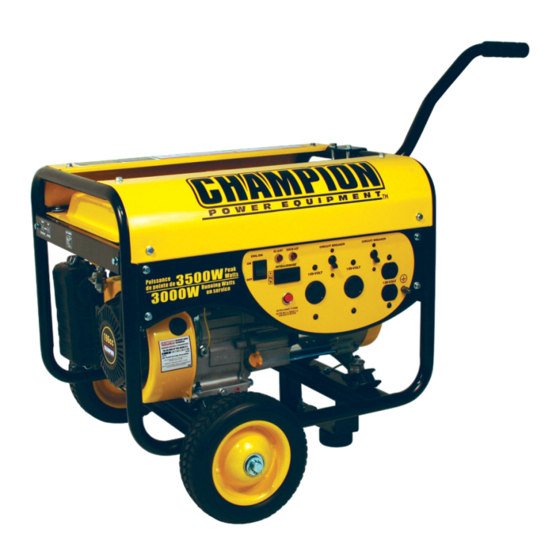

PORTABLE GENERATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSA40015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Champion Power Equipment CSA40015

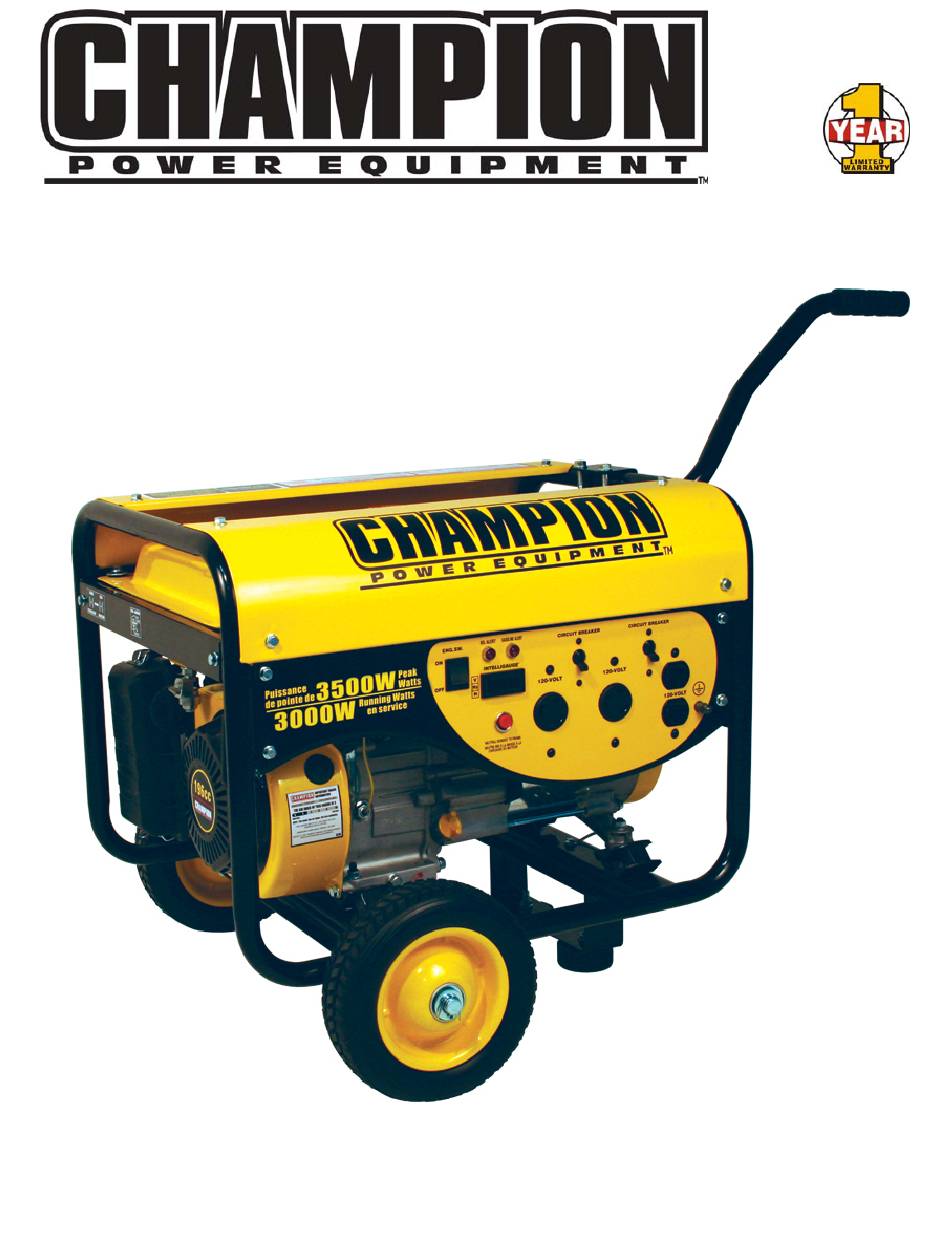

  • Page 1 CSA40015 Rev CSA40015-20070612 10006 Santa Fe Springs Road Santa Fe Springs, CA 90670 USA Made in China Owner’s Manual and Operating Instructions 3500 Peak Watts/3000 Running Watts PORTABLE GENERATOR...
  • Page 3: Table Of Contents

    Table of Contents Introduction ........1 Storage ........... 14 Portable Power Generator ......1 Engine Storage ........14 Accessories..........1 Generator Storage........14 This Booklet ..........1 Specifications ......... 15 Manual Conventions ......2 Engine Specifications......15 Safety Rules ........3 Generator Specifications......15 Controls and Features.......
  • Page 5: Introduction

    Champion Power Equipment manufactures Congratulations on your purchase of a and sells accessories designed to help you Champion Power Equipment generator. CPE get the most from your purchase. To find out designs and builds generators to strict more about our covers, power cables and specifications.
  • Page 6: Manual Conventions

    NOTE If you have questions regarding your generator, WARNING we can help. Please call our help line at 1-877- 338-0999. WARNING indicates a potentially hazardous could situation which, if not avoided, result in death or serious injury. Rev CSA40015-20070612...
  • Page 7: Safety Rules

    Traumatic amputation or severe laceration can result. Keep hands and feet away from rotating parts. Tie up long hair and remove jewelry. Operate equipment with guards in place. DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught. Rev CSA40015-20070612...
  • Page 8 DO NOT allow any material to block the cooling slots. If connected devices overheat, turn them off and disconnect them from the generator. DO NOT use the generator if: Electrical output is lost Equipment sparks, smokes or emits flames Equipment vibrates excessively Rev CSA40015-20070612...
  • Page 9: Controls And Features

    Air Cleaner (4) – Protects the engine by Oil Filler Cap (8) – Check and fill engine filtering dust and debris from the intake air. oil level. Recoil Starter (5) – Used to start the Power Panel (9) – See “Power Panel” engine Rev CSA40015-20070612...
  • Page 10: Power Panel

    20 A 0r 2400 Watts of start the generator. Turn to the “Off” power. position to turn off the generator. Ground Terminal (10) – Consult an Intelligauge (5) – Tri-mode digital display electrician for local grounding regulations. for running hours, voltage and hertz. Rev CSA40015-20070612...
  • Page 11: Parts Included

    Controls and Features Parts Included Your CSA40015 Gasoline Powered Generator ships with the following parts: Wheel Kit Axle 1 piece Solid Wheel 2 pieces Vibration Mounts 2 pieces Handle 1 piece Support Leg 1 piece Bolt Kit Wheel Retaining Pins...
  • Page 12: Assembly

    6. Carefully bend the legs of the cotter pin 4. Check engine oil level daily and add as back around the axle. needed. 7. Repeat steps 3-6 to attach the second wheel. Rev CSA40015-20070612...
  • Page 13: Add Fuel

    6. Screw on the fuel cap and wipe away any generator ground terminal and a copper rod spilled fuel. driven into the ground. We strongly recommend that you consult with a qualified electrician to ensure compliance with local electrical codes. Rev CSA40015-20070612...
  • Page 14: Operation

    Surge suppressors come in single- or multi-outlet styles. They’re designed to 2. Let the generator run at no-load for protect against virtually all short- several minutes to stabilize internal duration voltage fluctuations. Rev CSA40015-20070612...
  • Page 15: Do Not Overload Generator

    Compressor 1 1/2 HP 2500 2500 7. Repeat steps 5-6 for each additional Edge Trimmer item. Hand Drill 1/2" 1000 1000 Lawn Mower 1200 1800 NOTE Paint Sprayer 1200 Table Saw 2000 2000 Never exceed the generator capacity when adding loads. Rev CSA40015-20070612...
  • Page 16: Maintenance

    Remove the oil drain plug with a 15 mm socket and extension. 2. Allow the oil to drain completely. 3. Replace the drain plug. 4. Remove oil fill cap/dipstick to add oil. 5. Add 0.63 qt (0.6 L) of oil and replace oil fill cap/dipstick. Rev CSA40015-20070612...
  • Page 17: Spark Arrester (If Installed)

    Use an air compressor (25 PSI) to clear dirt locate the nearest Champion Power and debris from the generator. Equipment certified service dealer for your Inspect all air vents and cooling slots to generator or engine maintenance needs. ensure that they are clean and unobstructed. Rev CSA40015-20070612...
  • Page 18: Storage

    Maintenance section. 5. Store in a clean, dry place out of direct 3. Drain all fuel completely from the fuel sunlight. line and carburetor to prevent gum from forming. 4. Add a fuel stabilizer into the fuel tank. Rev CSA40015-20070612...
  • Page 19: Specifications

    Fuel Intake 0.13-0.17mm (0.005 – 0.007 in.) Fuel capacity is 4.0 US gallons (15.L). Use Exhaust 0.18-0.22mm (0.007 – 0.009 in.) regular unleaded gasoline with a minimum octane rating of 85. Oil capacity is 0.63 qt (0.6 L). Rev CSA40015-20070612...
  • Page 20: Parts Diagram

    Specifications Parts Diagram Rev CSA40015-20070612...
  • Page 21: Parts List

    GB41-N-8 Nut M8 GB5781-B8-16 Bolt M8×16 ST177FD-1743001 Support Leg ST188FD-1740004-C Vibration Mount GB5789-FB8-32 Flange Bolt M8×32 ST05FD-1170003-B Grommet ST05FD-1151209 Conduit ST02FD-1151201 Grommet ST05FD-1151202-CSA 20A Circuit Breaker ST05FD-1151203-CSA 25A Circuit Breaker ST02FD-1151207D Low Fuel Light ST02FD-11512007B Low Oil Light Rev CSA40015-20070612...
  • Page 22 Spring Washer ø8 GB41-N-8 Nut M8 ST168FD-1111100 Control Assembly ST168FD-1090100 Air Cleaner Case ST168FD-1090002 Air Cleaner Seal ST168FD-1090003 Separator ST168FD-1090004 Element ST168FD-1090200 Air Cleaner Cover WP-40-2000110E Axle ST29QXG-2000005 8" Wheel GB90-W-17 Flat Washer ø17 GBT-CP3.2-40 Cotter Pin 3.2×40 Rev CSA40015-20070612...
  • Page 23: Wiring Diagram

    Specifications Wiring Diagram Rev CSA40015-20070612...
  • Page 24: Troubleshooting

    Wiring Diagram Troubleshooting Problem Cause Solution Generator will not start No fuel Add fuel Faulty spark plug Replace spark plug Unit loaded during start up Remove load from unit Generator will not start; Low oil level Fill crankcase to the proper level Generator starts but runs roughly Place generator on a flat, level surface Choke in the wrong position.
  • Page 25: Warranty

    Wear items such as filter elements, o-rings, etc. Warranty Qualifications Accessory parts such as starting batteries, and Champion Power Equipment (CPE) will register storage covers. this warranty upon receipt of your Warranty Failures to due acts of God and other force Registration Card and a copy of your sales receipt majeure events beyond the manufacturer’s...
  • Page 26: Notes

    Notes Notes Rev CSA40015-20070612...
