T3LCR1002, T3LCR1100, T3LCR1300
Precision LCR Meters
Quick Start Guide

Advertisement

Table of Contents
loading

Summary of Contents for Teledyne T3LCR1002

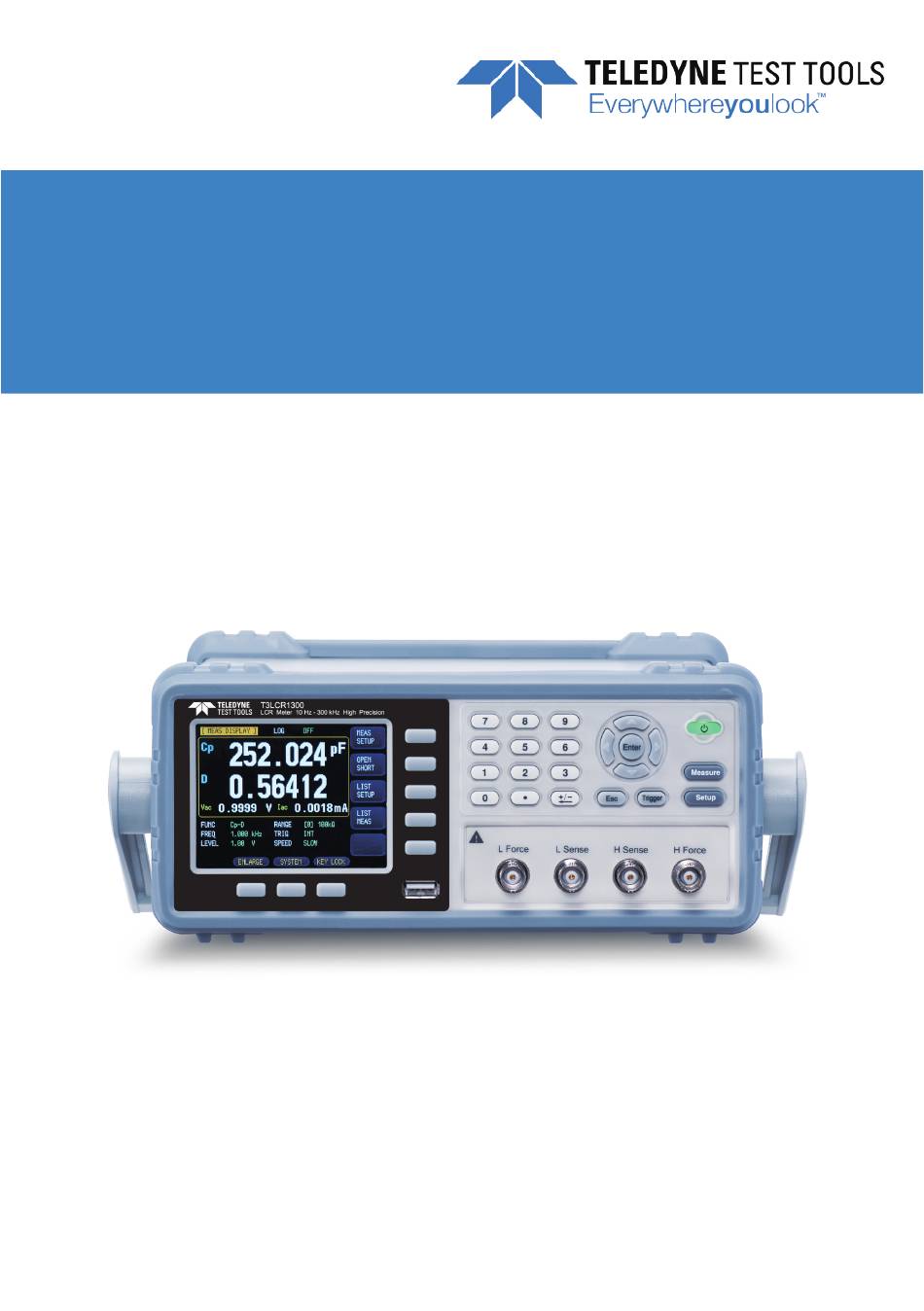

  • Page 1 T3LCR1002, T3LCR1100, T3LCR1300 Precision LCR Meters Quick Start Guide...
  • Page 2 All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Teledyne LeCroy company. The information in this quick start guide was correct at the time of printing.
  • Page 3: Safety Instructions

    When you notice any of the unusual conditions listed below, immediately terminate operation and disconnect the power cable. Please contact the Teledyne service center representative for repair of the instrument. If you continue to operate without repairing the instrument, there is a potential fire or shock hazard for operators.
  • Page 4 Teledyne assumes no liability for the customer's Disclaimer failure to comply with these requirements. To avoid electric shock hazards, the instrument Ground The chassis and cabinet must be connected to a safety Instrument earth ground by the supplied power cable with earth blade.
  • Page 5: Etting Started

    T3LCR series. Overview The Teledyne T3LCR series is a general-purpose LCR meter for incoming inspection of components, quality control, and laboratory use. The T3LCR series is used for evaluating LCR components, materials, and semiconductor devices over a wide range of frequencies (10 Hz to 300 kHz) and test signal levels (10.00mV to...
  • Page 6: Front Panel

    • Limit Setup Absolute value, deviation value, and % deviation value can be used for setup. • BIN count Countable from 0 to 999999 • Up to 10 setup conditions can be written Files to/read from the built-in non-volatile memory. •...
  • Page 7: Rear Panel

    Rear Panel Description 1. Power Cable Receptacle(Outlet) 2. Frame Terminal 3. USB Interface (Type B) 4. RS-232 Interface 5. Handler Interface Power On Press the power key for at least 2 seconds. Release power key when the POWER LED is lit. Power Off Press the power key at least 2 seconds.
  • Page 8: Warm-Up Time

    Warm-up Time T3LCR series is ready to be used as soon as the power-up sequence has completed. However, to achieve the specification accuracy, first warm up the instrument for 30 minutes. Connect to the Device Under Test (DUT) The T3LCR series uses a four terminal measurement configuration that provides easy, accurate and stable measurements and avoids mutual inductance, interference from measurement signals, noise and other factors inherent with other types of connections.
  • Page 9: General Specification

    Z, D, Q, Vac, Iac, Δ, Δ%, θr, θd, R, X, G, B, Y Monitor (2 Parameter) Parameter 40 times/s, 10 times/s, 3 times/s T3LCR1300: 10Hz-300kHz Test Frequency T3LCR1100: 10Hz-100kHz T3LCR1002: 10Hz-2kHz Frequency range and resolution Resolution Frequency range(F) 0.01Hz 10.00Hz ≤ F ≤ 99.99Hz 0.1Hz 100.0Hz ≤ F ≤ 999.9Hz 1.000Hz ≤...
  • Page 10: Display Range

    Display Range Parameter Resolution 0.00001uH-9999.99H 0.00001pF-9999.99mF 0.00001Ω-99.9999MΩ R, X, |Z| 0.01nS-999.999S G, B, |Y| 0.00001-9.99999 0.00001-99999.9 -179.999°-179.999° θd θr -3.14159-3.14159 0.00001Ω-99.9999MΩ -999999%-999999% Δ% 10.00mV-2.00V (±10%) AC Test signal level CV: 10.00mV-2.00V (±6%) 100.0uA-20.00mA (±10%) CC: 100.0uA-20.00mA(±6%) (@2VMax) +2V, 0.066A(Max.), Output impedance fixed DCR Test signal level 30Ω...
  • Page 11 Handler interface and RS232/USB interface. Interface Environment Temperature: 23˚C±5˚C, Specification Conditions Relative Humidity: < 70%RH Temperature: 0~50˚C, Operating Environment Relative Humidity: <70%RH (Indoor use only, Altitude: 2000 meters) Temperature: -10~70˚C, Storage Conditions Relative Humidity: <80%RH AC 100V-240V, 50Hz-60Hz Power Source 2A Slow-Blow Fuse Maximum rated power...
  • Page 12 IMENSIONS 264.4 291.6 308.6 311.1...
  • Page 13: Emc Compliance

    ERTIFICATIONS Teledyne LeCroy certifies compliance to the following standards as of the time of publication. Please see the EC Declaration of Conformity document shipped with your product for current certifications. EMC Compliance EC DECLARATION OF CONFORMITY - EMC The instrument meets intent of EC Directive 2014/30/EU for Electromagnetic Compatibility.
  • Page 14 Performance Criteria “C” applied for 70%/25 cycle voltage dips and for 0%/250 cycle voltage interruption test levels per EN61000-4-11. European Contact:* Teledyne GmbH, European Division Im Breitspiel 11c D-69126 Heidelberg Germany Tel: + 49 6221 82700 AUSTRALIA &...
  • Page 15: Safety Compliance

    AS/NZS CISPR 11:2015 Radiated and Conducted Emissions, Group 1, Class A. Australia / New Zealand Contacts:* RS Components Pty Ltd. RS Components Ltd. Suite 326 The Parade West Units 30 & 31 Warehouse World Kent Town, South Australia 5067 761 Great South Road Penrose, Auckland, New Zealand * Visit teledynelecroy.com/support/contact for the latest contact information.
  • Page 16: Environmental Compliance

    Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle. RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) EC DECLARATION OF CONFORMITY – RoHS...
  • Page 17 limits for certain restricted substances in electrical and electronic products). The instrument is marked with an appropriate Environmental Friendly Use Period (EFUP) symbol. The packaging materials include the appropriate recycling labels. The below substance disclosure tables (in Chinese and English languages) provide the required compliance information.
  • Page 18 Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Part Name (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (Cr6+) (PBB) (PBDE) PCBAs Mechanical Hardware Sheet Metal Plastic Parts Cable Assemblies Display Power Supply Fans Batteries Power Cord Ext Power Supply (if present) Probes (if present)
  • Page 20 © 2020 Teledyne Test Tools is a brand and trademark of Teledyne LeCroy Inc. All rights reserved. Specifications, prices, availability and delivery subject to change without notice. Product brand or brand names are trademarks or requested trademarks of their respective holders.
