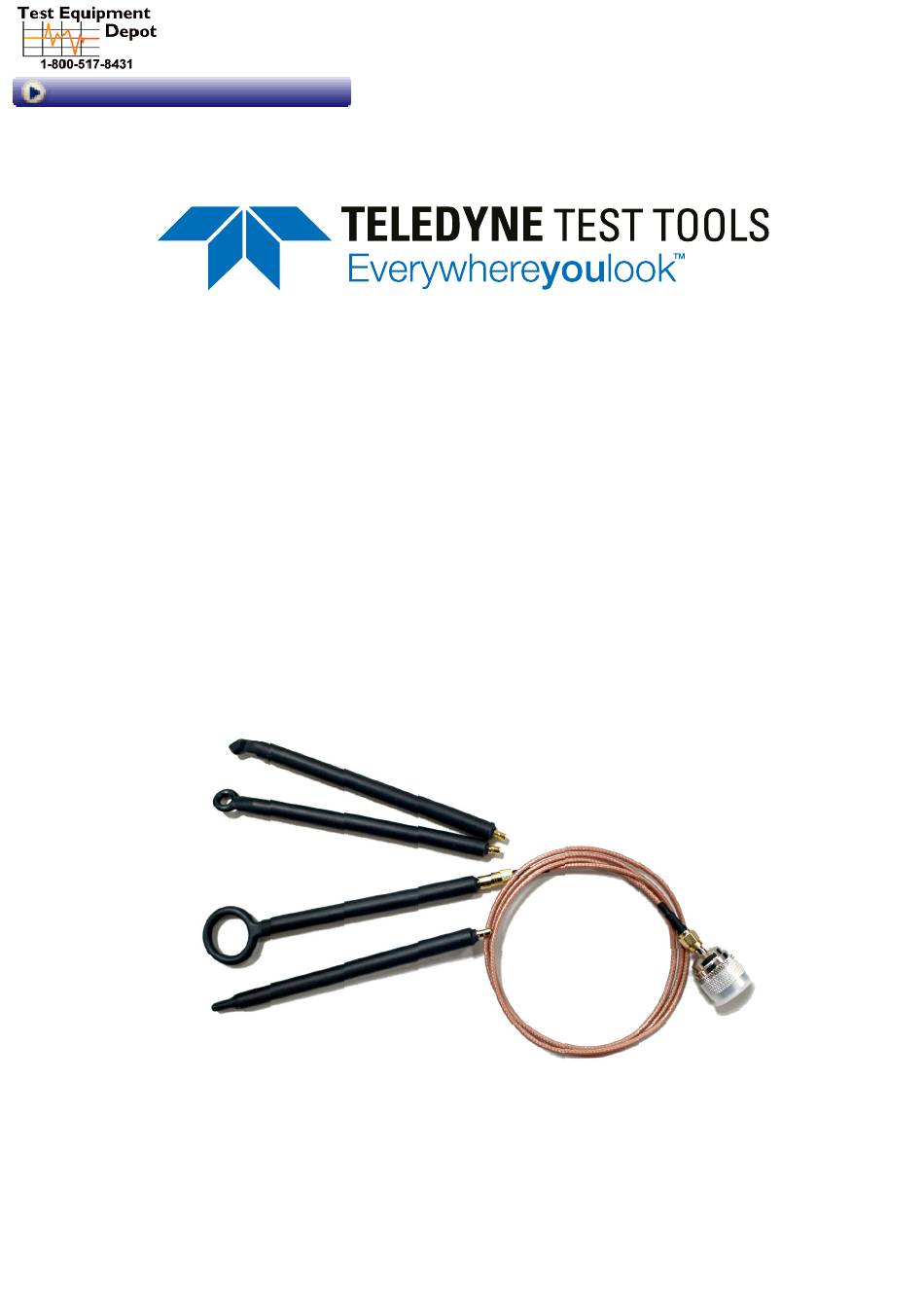

- Page 1 5 Commonwealth Ave Woburn, MA 01801 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com T3SA3000-NFP Near Field Probe User Manual...
- Page 2 This page is intentionally blank...
-
Page 3: Operating Environment
The T3SA3000-NFP probe set is used to measure the magnetic fields in the area of the device to determine the source and level of disturbance emissions. - Page 4 Application The probes are used to detect magnetic field intensity and detect disturbance emissions sources. Spectrum Analyser or Oscilloscope T3SA3000-NFP Near Field Probe Wideband preamplifier There are two methods of connecting the probes to the spectrum analyser or oscilloscope, either directly or via a wideband preamplifier (not supplied) as shown above.
- Page 5 Description of the individual probes Model Description Characteristics The T3SA3000-NFP-1 can be used at a distance of up to 10 cm from the DUT. The probe detects the spatial distribution of HF magnetic fields in devices and assemblies and allows the user to draw conclusions with regard to disturbance emissions.
- Page 6 The T3SA3000-NFP kit comprises of: 1. Four Near Field Probes with SMB output connectors. 2. An SMB to SMA connecting cable. 3. An SMA to N Type adaptor. Probe SMB Output Connectors Sensing Four Near Field Probes SMB to SMA Connecting Cable...
- Page 7 This page is intentionally blank...
- Page 8 TestEquipmentDepot.com © 2018 Teledyne Test Tools is a brand and trademark of Teledyne LeCroy Inc. All rights reserved. Specifications,prices,availability and delivery subject to change without notice. Product brand or brand names are trademarks or requested trademarks of their respective holders.
