Chapter 6 Specifications - THORLABS PDA10CF User Manual

InGaAs Amplified Detector

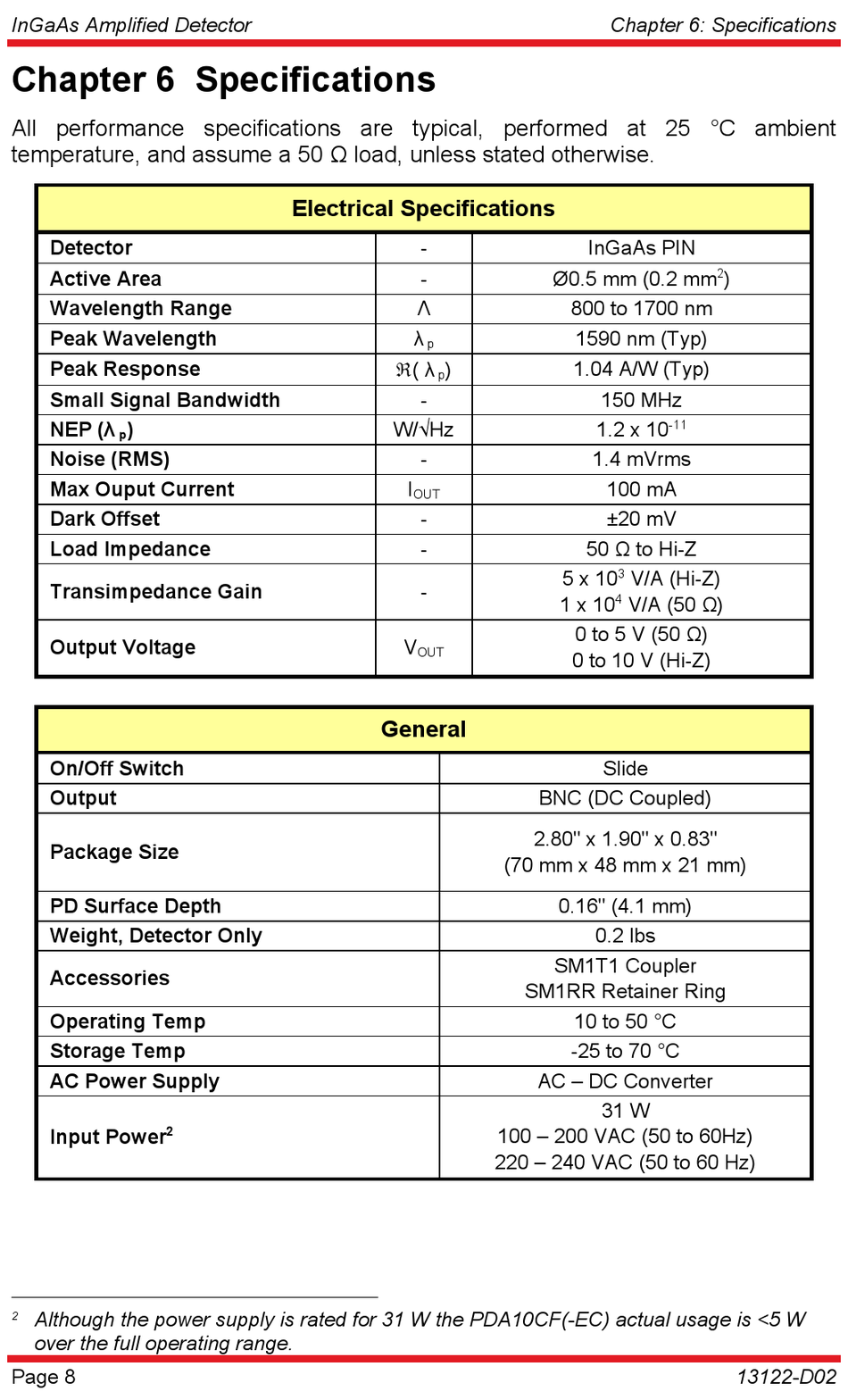

Chapter 6 Specifications

All performance specifications are typical, performed at 25 °C ambient
temperature, and assume a 50 Ω load, unless stated otherwise.
Detector
Active Area
Wavelength Range
Peak Wavelength
Peak Response
Small Signal Bandwidth
NEP (λ )
p
Noise (RMS)
Max Ouput Current
Dark Offset
Load Impedance
Transimpedance Gain
Output Voltage
On/Off Switch
Output
Package Size
PD Surface Depth
Weight, Detector Only
Accessories
Operating Temp
Storage Temp
AC Power Supply
2
Input Power
Although the power supply is rated for 31 W the PDA10CF(-EC) actual usage is <5 W
2
over the full operating range.
Page 8
Electrical Specifications
-
-
Λ
λ
p
( λ
)
p
-
W/√Hz
-
I
OUT
-
-
-
V
OUT
General
Chapter 6: Specifications
InGaAs PIN
Ø0.5 mm (0.2 mm
800 to 1700 nm
1590 nm (Typ)
1.04 A/W (Typ)
150 MHz
1.2 x 10
1.4 mVrms
100 mA
±20 mV
50 Ω to Hi-Z
3
5 x 10 V/A (Hi-Z)
4
1 x 10 V/A (50 Ω)
0 to 5 V (50 Ω)
0 to 10 V (Hi-Z)
Slide
BNC (DC Coupled)
2.80" x 1.90" x 0.83"
(70 mm x 48 mm x 21 mm)
0.16" (4.1 mm)
0.2 lbs
SM1T1 Coupler
SM1RR Retainer Ring
10 to 50 °C
-25 to 70 °C
AC – DC Converter
31 W
100 – 200 VAC (50 to 60Hz)
220 – 240 VAC (50 to 60 Hz)
2 )
-11
13122-D02
