INSTALLATION, OPERATION AND MAINTENANCE
MANUAL
Gate Valve with rubber seal
Grooved ends – UL/FM Certification
Ref. GENEBRE: 2100 – 2100D
GENEBRE S.A.
LAST UPDATE: 05/08/2020
UPDATE NUMBER: 0
1
Advertisement
Table of Contents
Related Manuals for Genebre 2100
Summary of Contents for Genebre 2100

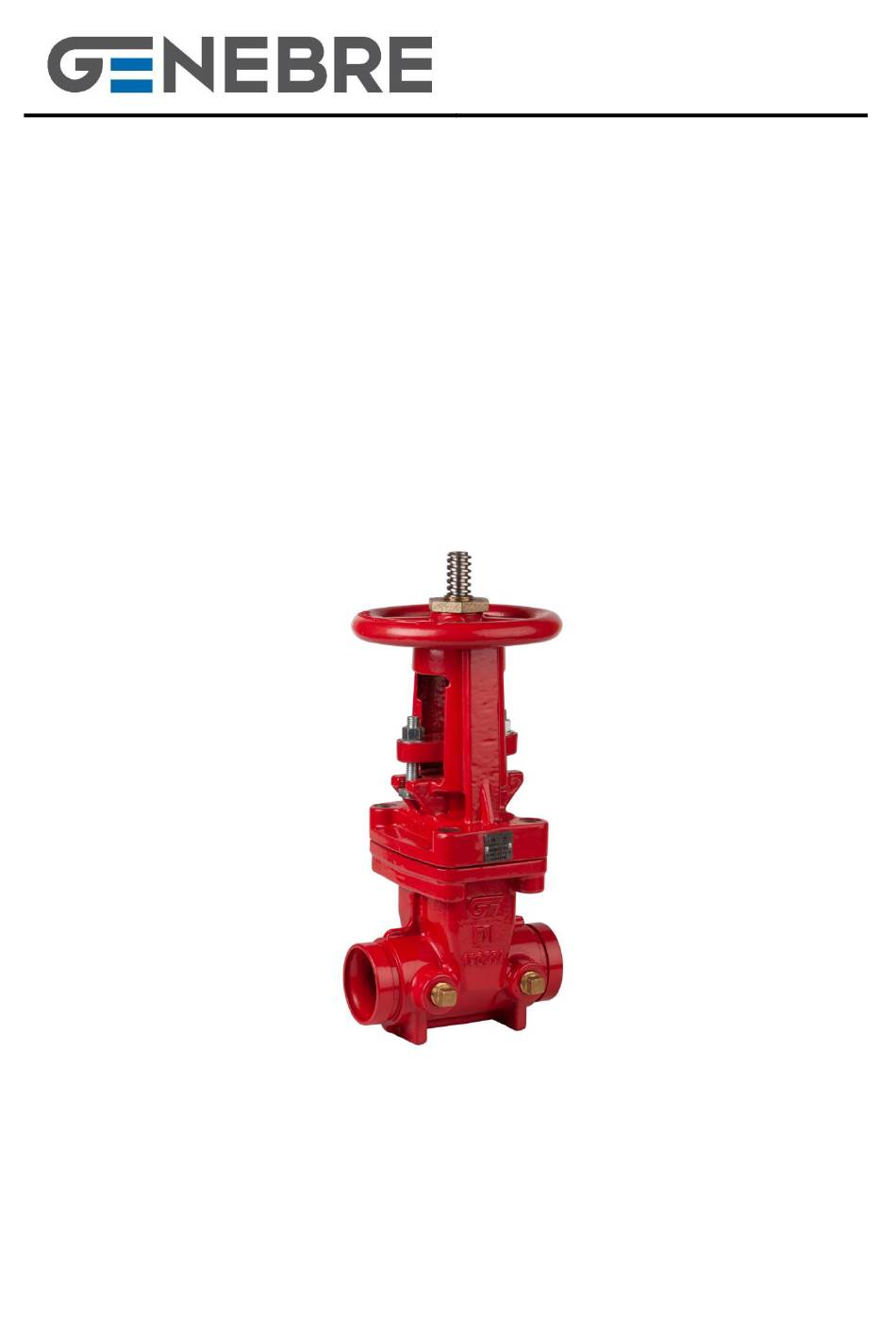

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Gate Valve with rubber seal Grooved ends – UL/FM Certification Ref. GENEBRE: 2100 – 2100D GENEBRE S.A. LAST UPDATE: 05/08/2020...
- Page 2 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1) PRODUCT DESCRIPTION ....................3 2) ASSEMBLY DRAWING ...................... 3 2.1) P ............................. 4 ARTS LIST 3) TRANSPORT AND STORAGE CONDITIONS ..............4 4) INSTALLATION INSTRUCTIONS ..................

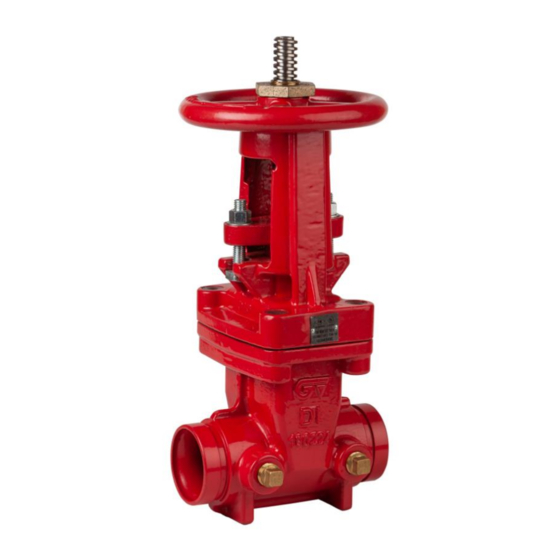

- Page 3 (pressure curve) for which they have been designed. Please, refer to the product datasheet. Art. 2100 / 2100D: Ductile Iron Wedge Gate Valve (OS&Y rising stem) with EPDM seal. UL/FM certification for use in fire protection systems.
- Page 4 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 2.1) Parts list Nº Name Material Surface Treatment Gasket AISI 304 ------ Ductile Iron Bonnet Epoxy coating EN-GJS-400 Packing Graphite ------ Ductile Iron...
- Page 5 Valves must be stored in a dry and clean environment. If you notice any kind of anomaly during reception of the goods, contact immediately with GENEBRE in order to determine the possible responsibilities on the issue. IMPORTANT NOTE: Before installing and/or manipulating these elements, READ CAREFULLY these instructions for use and OBSERVE all contained information.
- Page 6 After assembling, check the tightness and performance of the valve. REMARKS: - Gate Valves, ref. 2100 / 2100D are designed according to AWWA C515 to be assembled with grooved coupling according to AWWA C606 at a maximum working pressure of 300 PSI.
- Page 7 5. Operation instructions 5.1) Usage Gate valves art. 2100 / 2100D provide a leakproof seal when used adjusted to the pressure and temperature values for which they have been designed. Seat material for the valve, joints, body, disk and axis have to be fully compatible with the fluid circulating through the valve.
- Page 8 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Before installing new valve, check if it meets the requirements of the valve being replaced 8. Hygiene and Safety Instructions: 8.1) When operating valves, you must follow the security instructions and it is recommended to use personal protection gadgets: 1) Protect your eyes.
