Summary of Contents for PhaseOne iX

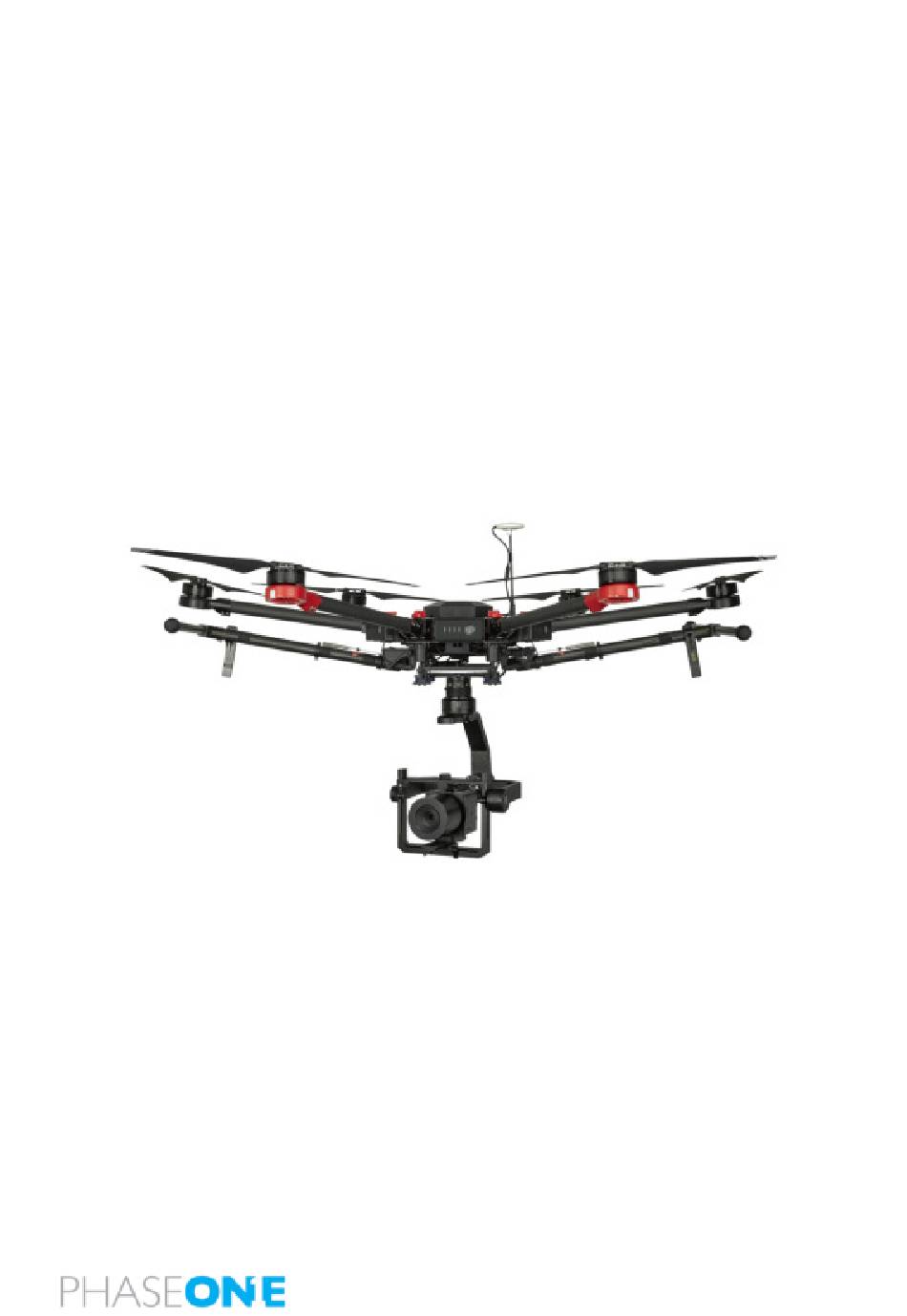

- Page 1 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal System Description and Operation Guide...
- Page 2 You can contact Phase One Technical Support directly by creating a support case at https://industrial.phaseone.com/Support.aspx Visit https://industrial.phaseone.com/ for additional information. Copyright © 2021 Phase One All Rights Reserved. Doc No. 80091000 Rev 1.0.2 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 05/10/2021 Page 2 of 3...
-
Page 3: Table Of Contents
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide Table of Contents Table of Contents Introduction ..............................4 Scope ..............................4 Applicable Documents ........................4 What’s in the Box ............................5 Required Items ............................9 Assembling the DJI Drone ......................... -
Page 4: Introduction
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 1. Introduction 1 Introduction 1.1 Scope This document describes how to mount the Phase One iX cameras on the DJI M600 & M600 PR0 as follows: • Section 2 - What’s in the Box •... -
Page 5: What's In The Box
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 2. What’s in the Box What’s in the Box The following tables lists all parts included in the Phase One Integration Kits for T7 Gimbal as follows: •... - Page 6 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 2. What’s in the Box Part No. Item Image 76017200 Gremsy T7 Gimbal – DJI Drone video cable 76017300 Phase One iX Camera - Gremsy T7 Gimbal video cable...
- Page 7 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 2. What’s in the Box Part No. Item Image 76016800 1 x Phase One camera plate. 76016900 Gremsy T7 Gimbal - Phase One iX Camera data cable...
- Page 8 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 2. What’s in the Box Part No. Item Image 76019300 DJI Drone - Gremsy T7 Gimbal power cable Page 8 of 9...
-
Page 9: Required Items
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 3. Required Items 3 Required Items The following items are required for installing a Phase One iX Camera on a DJI M600 & M600 Pro drone: • DJI M600 / M600 Pro drone •... -
Page 10: Assembling The Dji Drone
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 4. Assembling the DJI Drone 4 Assembling the DJI Drone 1. Unbox and assemble the M600 / M600 PRO drone according to the DJI Installation Manual. -
Page 11: Configuring Dji M600/M600 Pr0 For Communication With Phase One Camera
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 5. Configuring DJI M600/M600 PR0 for Communication with Phase One Camera 5 Configuring DJI M600/M600 PR0 for Communication with Phase One Camera 1. Download DJI Assistant 2 from the DJI website and install it on a PC. -
Page 12: Connecting Dji Drone - Gremsy T7 Cables
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 6. Connecting DJI Drone - Gremsy T7 Cables 6 Connecting DJI Drone - Gremsy T7 Cables 1. With the drone facing upwards, remove the drone top cover. - Page 13 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 6. Connecting DJI Drone - Gremsy T7 Cables 6. Once the Canlink Cable for DJI A3/N3 cable is in place, connect the cable’s black connector to the A3 Flight Controller CAN1 port.
- Page 14 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 6. Connecting DJI Drone - Gremsy T7 Cables 9. Connect both white connectors of the DJI Drone - Gremsy T7 communication cable to the gimbal ports according to their size, as shown in the following figure.
-
Page 15: Assembling The Gremsy T7 Damping Plate
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 7. Assembling the Gremsy T7 Damping Plate 7 Assembling the Gremsy T7 Damping Plate 1. Position the drone on its back and mount the HDMI Hyper Quick Release on the Gremsy T7 Damping Plate, then attach to the DJI frame as described in the Gremsy T7 User Manual. -
Page 16: Mounting The Phase One Ix Camera On The Gremsy T7 Gimbal
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 8. Mounting the Phase One iX Camera on the Gremsy T7 Gimbal 8 Mounting the Phase One iX Camera on the Gremsy T7 Gimbal 1. In the Phase One camera mount for your camera (P/N 50201111 for iXU/iXM cameras; P/N 50201821 for iXM cameras), insert the four M4 screws with four spring washers and four flat washers. - Page 17 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 8. Mounting the Phase One iX Camera on the Gremsy T7 Gimbal 3. Using the 3.8” camera screw supplied with the DJI Gimbal kit, attach the camera plate (P/N 76016800) to the Phase One camera mount.
- Page 18 8. Mounting the Phase One iX Camera on the Gremsy T7 Gimbal 5. Facing outward on the tuning stand, slide the Phase One iX Camera into the Gremsy T7 gimbal slot until the safety-locks engage. Vertically adjust the tilt top bar to meet the camera top cross bar. When the Phase One Camera is in place, tighten the base side clamp and lock-knobs.
-
Page 19: Connecting Additional Cables
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 9. Connecting Additional Cables 9 Connecting Additional Cables 9.1 Cables between DJI Drone and GremsyT7 Gimbal 1. Connect the DJI Drone - Gremsy T7 Power Cable (P/N 76019300) as follows: a. - Page 20 Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 9. Connecting Additional Cables 2. Gremsy T7 Gimbal – DJI Drone Video Cable (P/N 76017200) a. Connect the video cable micro HDMI connector to the gimbal HDMI port.
-
Page 21: Cables Between Gremsyt7 Gimbal And Phase One Camera
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 9. Connecting Additional Cables 9.2 Cables between GremsyT7 Gimbal and Phase One Camera Connect the following cables using the paragraph numbers and figure below as a guide: 1. -
Page 22: Final Assembly Steps
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 10. Final Assembly Steps 10 Final Assembly Steps 1. Secure all cables with a zip tie to ensure free movement. Cable tie Page 22 of 23... -
Page 23: Configuring Phase One Ix Camera To Operate With Dji Drone
Download Firmware and Release Notes). 3. Insert a XQD card into the card slot (any size, brand or model is applicable). In iX Capture, in Service, format the card and make sure it is identified by the camera. 4. Tap Link. -
Page 24: Activating The System
12 Activating the System Using a DJI drone with a Phase One iX Camera for the first time requires initial activation. This is performed via an internet connection and a remote control connected to a mobile device running the DJI GO app. -
Page 25: Calibrating The Gremsy T7
Phase One iX Cameras on DJI M600/M600 PRO with Gremsy T7 Gimbal Installation Guide 13. Calibrating the Gremsy T7 13 Calibrating the Gremsy T7 • Note Refer to the Gremsy T7 User Manual to calibrate and balance the gimbal. •...
