- Page 1 RP1-2300 SYSTEM Installation Manual Read carefully before using the RP1-2300 SYSTEM...
-
Page 3: Table Of Contents
Contents RP1-2300 SYSTEM OVERVIEW ................2 Setting up the RP1-2300 System ................3 Unpacking the base ....................3 Leveling the Base ....................4 Applying the column to the base ..............5 Leveling the column ..................... 6 Applying the board to the base ............... 6 2.5.1... -

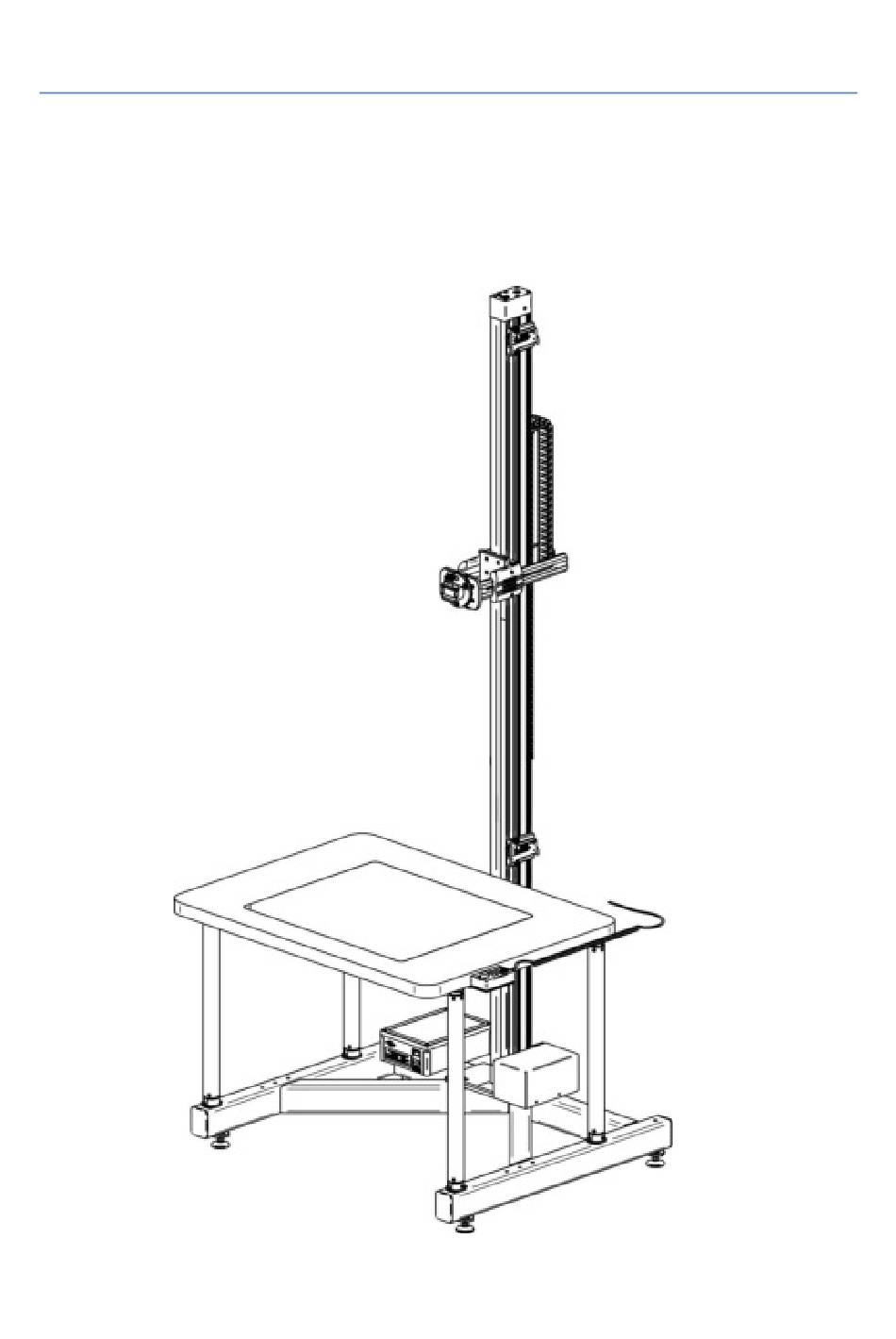

Page 4: Rp1-2300 System Overview
2. Remote control 3. Power supply 4. Base 5. Baseboard 6. Flat baseboard inlay module 7. Baseboard height extenders 8. LED baseboard inlay module (Optional) 9. Wall mount brackets (Optional) Figuren 1 RP1-2300 SYSTEM PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... -
Page 5: Setting Up The Rp1-2300 System
CAUTION, when removing or placing the baseboard from or to the base It’s advised to perform the following instructions with two persons. Please remove or insert the baseboard uniformly distributed and parallel to the base to prevent jamming. Figure 2 Unpacking the Base Board PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... -
Page 6: Leveling The Base
[B]. To level the base, loosen locking ring [D] then use a spanner (metric 14mm) to adjust the height of the feet by turning nut [C]. When the base is leveled make sure to retighten locking ring [D]. PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... -
Page 7: Applying The Column To The Base
Do not fully tighten the bolts and nuts before all four are placed. When all four bolts are in place, tighten the bolts and nuts firmly using the 5mm Allen key and 13mm spanner. Figure 4 Mounting the column to the base PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... -
Page 8: Leveling The Column
M3x4 cylinder head bolts [I] using a 2mm Allen key. Finally the remote holder [F] (which is mounted to the baseboard inversely) can be mounted to the baseboard by using locking knobs [G] PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... -
Page 9: Applying The Baseboard Without Extenders
For fine tuning the position of the column both the top and bottom bracket contain a set screw [E]. Before using the set screws, slightly loosen bolts [D] then tighten or loosen set screws [E]. when the column is leveled, retighten bolts [D]. PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... - Page 10 Figure 7 RP1-2300 wall mounted setup PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0...
-
Page 11: Installing The Cross Arm
5mm Allen key. Note that tightening or loosening screw [B1] is only necessary in the exceptional circumstance that the adjustment of screw [B2] and [B3] is not sufficient. PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... - Page 12 Figure 9 QR leveling plate PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0...
-
Page 13: Connecting The Rp1-2300 System
Never disconnect the motor unit from the power supply during use. This may cause damages to the electronics. The maximum weight that can be applied to the cross-arm at maximum extend is 5KG. PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... -
Page 14: Interface And Connections
Arca compatible Quick release e. Quick release locking knob f. Top end-stop g. Top end-stop locking knobs h. Bottom end-stop i. Bottom end-stop locking knobs j. Cable track Figure 10 RP1-2300 Features PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0... - Page 15 AC power cable socket c. USB (type B) Laptop connection socket d. Remote control socket e. Column connection socket f. Power supply serial number Figure 12 Power supply unit Only use the supplied cables! PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0...
- Page 16 AC power used in your area WARNING!: Never unplug any of the connectors when the unit is in use, this may damage the electronics. PHASEONE RP1-2300 AUTOCOLUMN XL installation manual V1.0...
