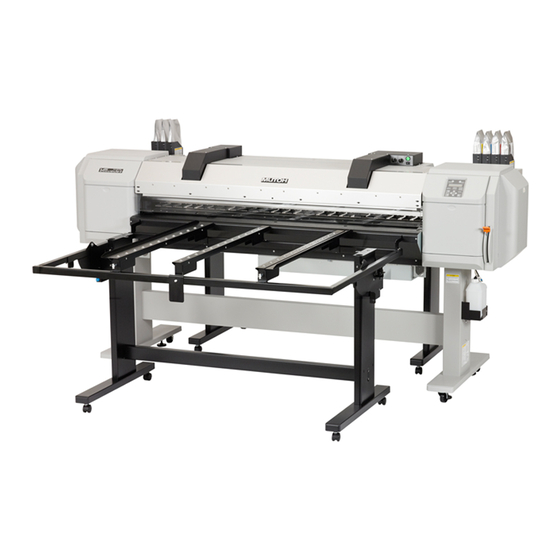

MUTOH VJ-1617H Operation Manual

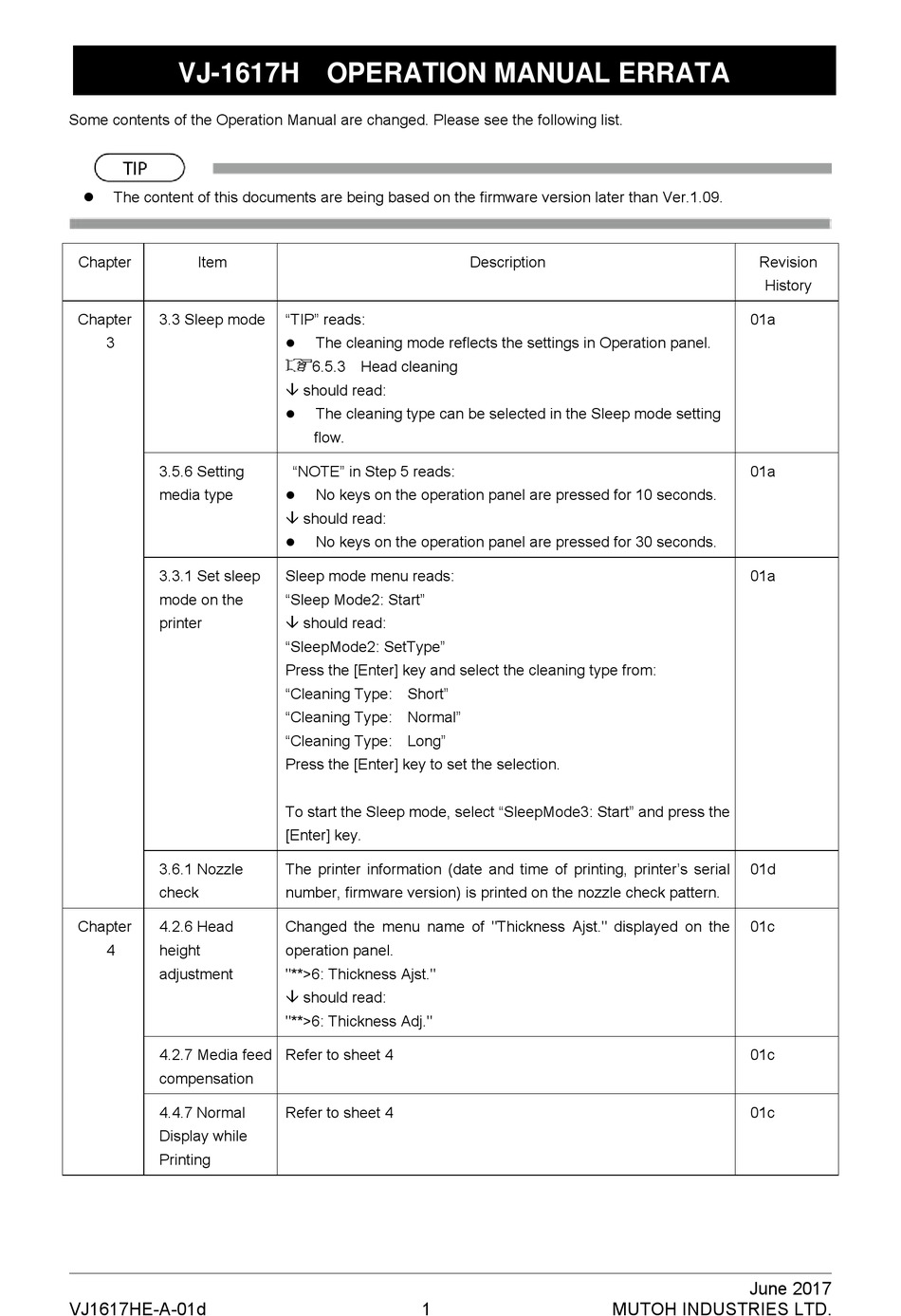

VJ-1617H OPERATION MANUAL ERRATA
Some contents of the Operation Manual are changed. Please see the following list.
 The content of this documents are being based on the firmware version later than Ver.1.09.
Chapter Item
Chapter 3.3 Sleep mode
3
3.5.6 Setting
media type
3.3.1 Set sleep
mode on the
printer
3.6.1 Nozzle
check
Chapter 4.2.6 Head
4 height
adjustment
4.2.7 Media feed
compensation
4.4.7 Normal
Display while
Printing
VJ1617HE-A-01d
"TIP" reads:
The cleaning mode reflects the settings in Operation panel.

6.5.3 Head cleaning
 should read:
The cleaning type can be selected in the Sleep mode setting

flow.
"NOTE" in Step 5 reads:
No keys on the operation panel are pressed for 10 seconds.

 should read:
No keys on the operation panel are pressed for 30 seconds.

Sleep mode menu reads:
"Sleep Mode2: Start"
 should read:
"SleepMode2: SetType"
Press the [Enter] key and select the cleaning type from:
"Cleaning Type: Short"
"Cleaning Type: Normal"
"Cleaning Type: Long"
Press the [Enter] key to set the selection.
To start the Sleep mode, select "SleepMode3: Start" and press the
[Enter] key.
The printer information (date and time of printing, printer's serial
number, firmware version) is printed on the nozzle check pattern.
Changed the menu name of "Thickness Ajst." displayed on the
operation panel.
"**>6: Thickness Ajst."
 should read:
"**>6: Thickness Adj."
Refer to sheet 4
Refer to sheet 4
1
Description
MUTOH INDUSTRIES LTD.
Revision
History
01a
01a
01a
01d
01c
01c
01c
June 2017
