- Page 1 Presentia W0 Motion Detector with Luminosity Sensor for Wall Mounting ZPDW0 Application program version: [1.1] User manual edition: [1.1]_a www.zennio.com...
-
Page 2: Table Of Contents
Presentia W0 CONTENTS Contents ............................2 Document Updates ........................3 Introduction .......................... 4 Presentia W0 ......................... 4 Installation ........................5 Start-Up and Power Loss ....................7 Configuration......................... 8 General .......................... 8 2.1.1 Configuration ..................... 8 Motion Detector ......................11 Logic Functions ......................12 ANNEX I. -
Page 3: Document Updates
Presentia W0 DOCUMENT UPDATES Version Changes Page(s) Changes in the application program: • New device recovery objects. [1.1]_a • Optimisation of logic functions, luminosity sensor and motion detector modules. • Presence detector is renamed as Motion Detector. https://www.zennio.com Technical Support:... -
Page 4: Introduction

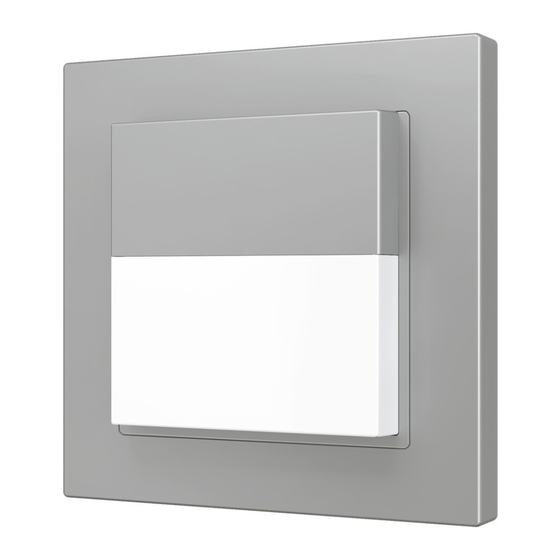

1 INTRODUCTION 1.1 PRESENTIA W0 Presentia W0 from Zennio is a device that aims at, among other functions, the motion detection, the measurement and control of the room luminosity and the detection of occupancy within the room where it has been installed. It has been designed for wall mounting by means of the bundled accessories. -
Page 5: Installation
Presentia W0 1.2 INSTALLATION Presentia W0 connects to the KNX bus through the on-board KNX connector. Once the device is provided with power from the KNX bus, both the individual address and the associated application program may be downloaded. This device does not need any additional external power since it is entirely powered through the KNX bus. - Page 6 Presentia W0 To get detailed information about the technical features of this device, as well as on the installation process and on security procedures, please refer to the corresponding Datasheet, bundled with the original packaging of the device and also available at www.zennio.com.
-
Page 7: Start-Up And Power Loss
Presentia W0 1.3 START-UP AND POWER LOSS During the start-up of the device, the detection notification LED flashes red for one minute before the motion sensor is operational. Depending on the configuration, some specific actions will also be performed during the start-up. -
Page 8: Configuration
Presentia W0 2 CONFIGURATION After importing the corresponding database in ETS and adding the device into the topology of the desired project, the configuration process begins by entering the parameters window of the device 2.1 GENERAL This window is subdivided into several other sections, which contain different general parameters. - Page 9 When enabled, a new tab is added in the tree on the left. For more information, see section 2.1.1.1. 2.1.1.1 AMBIENT LUMINOSITY SENSOR Presentia W0 incorporates a luminosity sensor to receive and monitor ambient luminosity measurement. Please refer to the specific manual “Luminosity and Proximity Sensor” (available in the Flat Display product section at the Zennio homepage, www.zennio.com) for...
- Page 10 Presentia W0 detailed information about the functionality and the configuration of the related parameters. Note: Proximity functionality, described in the "Luminosity and Proximity Sensor" manual, is not included in Presentia W0. https://www.zennio.com Technical Support: https://support.zennio.com...
-
Page 11: Motion Detector
It also allows setting different luminosity setpoints or object types for day and night time as well as activating or deactivating the motion indicator LEDs. Presentia W0 can also set custom sensitivity of the motion sensor and measure the luminosity level of the room. This measurement will be made according to the colour of lens selected. -
Page 12: Logic Functions
KNX bus, and to send the results through other communication objects specifically enabled for this purpose. Presentia W0 can implement up to 10 different and independent functions, each of them entirely customisable and consisting of up to 4 consecutive operations. -
Page 13: Annex I. Communication Objects
Presentia W0 ANNEX I. COMMUNICATION OBJECTS “Functional range” shows the values that, with independence of any other values permitted by the bus according to the object size, may be of any use or have a particular meaning because of the specifications or restrictions from both the KNX standard or the application program itself. - Page 14 Presentia W0 2 Bytes C - W - - DPT_TimePeriodSec 0 - 65535 Occupancy: Listening Time 1-65535 s. 1 Bit C - W - - DPT_Enable Occupancy: Lock 0 = Unlock; 1 = Lock 1 Bit C - W - -...
