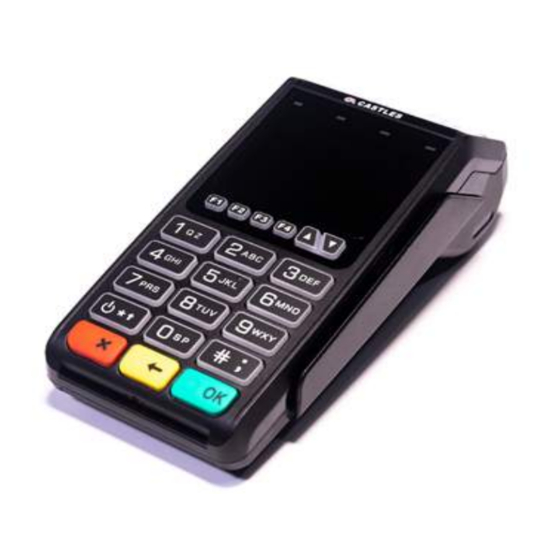

Vega 3000 Portable Series
Please ensure the Power outlet is switched off before any of the steps below are attempted!
Connect AC power adaptor with the power cable. Connect power supply into the back of the 9V socket at the back
of the charging dock. Plug other end of the cable into electrical outlet. Switch on the power socket (if applicable).
Connect the 'USB type B' cable to the terminal.
Connect the other end of the cable into the USB power plug into
electrical outlet. Switch on the power socket (if applicable)
Plug the LAN cable into the BLUE 'WAN' socket on the the Netis router. Plug the other end of the LAN cable into
the internet source (your internet router or Network socket)
Plug the power supply into the power socket on the Netis router, connect the other end of the cable into the
power socket. When the 3 LED are lit (WAN, WLAN and PWR) - you can switch your Wi-Fi terminal on.
Press and hold the power button (above the red key) until the screen lights up. The terminal will power
on and initialise for use
When 'Enter amount' message is displayed – the terminal is ready to use!
22407
Installation guide
Cable installation
Router installation
(optional for V3M2 Wi-Fi)
Starting up your terminal
NO CHARGING DOCK?
Advertisement
Related Manuals for Castles Technology Portable Series
Summary of Contents for Castles Technology Portable Series
- Page 1 Vega 3000 Portable Series Installation guide Cable installation Please ensure the Power outlet is switched off before any of the steps below are attempted! Connect AC power adaptor with the power cable. Connect power supply into the back of the 9V socket at the back of the charging dock.
- Page 2 Useful Tips ‘Cardholder Not - Present’ transaction Starting from ‘Enter amount screen: The terminal will complete If prompted, press ‘1’ on the Key in transaction amount the transaction and print terminal keypad to enter the and press green ’OK’ the receipt CVV2 code (last 3 digits on button the back of the card)
Need help?
Do you have a question about the Portable Series and is the answer not in the manual?
Questions and answers
i have just recieved a new vega 3000 handset and no idea how to set it up, are there any guides online
To set up the Castles Technology Vega 3000 countertop terminal:
1. Plug the power supply into the back of the terminal in the port labeled 9V.
2. Connect the Violet Ethernet cable to a spare port on your broadband router or network point and then into the back of the terminal in the port labeled LAN.
3. Ensure both the power and Ethernet cables are secured under the protective/cable tidy clip.
4. Turn on the terminal by pressing the power button located at the bottom left corner or under the number 7.
5. If prompted, enter the Merchant ID (MID) received from the Payments Alliance.
6. The terminal will complete a short installation and will be ready for use.
To change the Manager Passcode:
1. From the idle screen, press the red key to enter the System Menu.
2. Enter the Manager Passcode from your Welcome Email and press OK.
After restarting, the terminal may ask you to select a preferred communication type:
1. Use the # key to scroll to your preferred communication type.
2. Press OK to confirm.
The terminal is now set up and ready for transactions.
