- Page 1 CASTLES TECHNOLOGY UPT1000B, UPT1000B-LCNF POS Terminal Book 2 User Manual UPT1000B Version 1.9 Apr 2022 CRT-U1-04-27-V1.9-FCC-PTCRB Castles Technology Co., Ltd. 6F, No. 207-5, Sec. 3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan R.O.C. https://www.castlestech.com/...
- Page 2 Castles Technology Co., Ltd. All trademarks mentioned are proprietary of their respective owners.
- Page 3 Jeffrey 2021.08.03 Add Canada IC Caution John 2021.09.15 Add External antenna statement John Replace External antenna statement with John 2021.09.17 Detachable Antenna Usage Add UPT1000F-LCNF title John 2022.01.18 Update terminal label Castles Technology Co., Ltd. All Right Reserved. Pg. 3...
-
Page 4: Table Of Contents
Contents Introduction ........................5 Hardware Setup ......................6 2.1. Parts of the UPT1000B ..................6 Program manager ......................8 Appendix ........................11 4.1. FCC Warning ..................... 11 4.2. Safety Warning for Power Source ..............12 4.3. Industry Canada statement ................13 4.4. -
Page 5: Introduction
1. Introduction This document provides a guideline on operating and configuring Castles UPT1000B. The scope of this document includes setting up the UPT1000B, basic operation, application life cycle, and some advance features. Castles Technology Co., Ltd. All Right Reserved. Pg. 5... -
Page 6: Hardware Setup

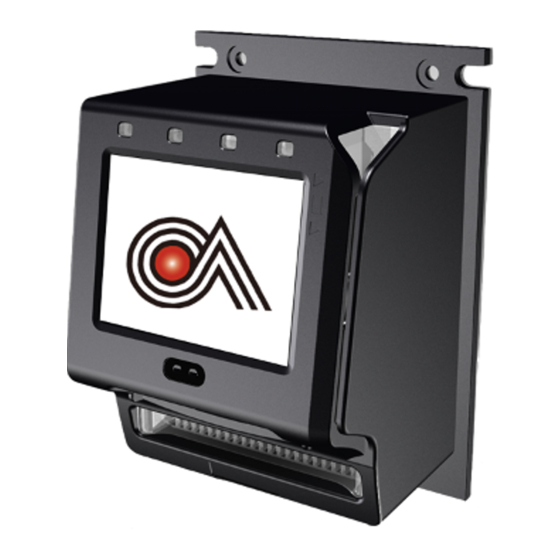

2. Hardware Setup 2.1. Parts of the UPT1000B Front View Contactless LED Indicator MSR LED Indicator 2.8”Touch Screen Contactless Reader Proximity Sensor ICC Reader Bill Acceptor LED Indicator Castles Technology Co., Ltd. All Right Reserved. Pg. 6... - Page 7 Rear View USB Port Power BT Antenna GSM Antenna Castles Technology Co., Ltd. All Right Reserved. Pg. 7...
-
Page 8: Program Manager
3. Program manager The UPT1000B is the terminal without keypad. Please follow the steps below to connect PC and UPT1000B for controlling. Power on UPT1000B and connect COM Port to PC. ▪ COM Port Run the application program such as “TeraTerm” or “PuTTY” on PC. - Page 9 Once the power is on in normal status, UPT1000B will enter Program Manager if no default application selected. All user applications are listed in Program Manager. User can select an application and run the application, view the application info, delete the application, or set application to the default one to run once the power is on.
- Page 10 8.FK PWD Change 8.Key Injection 9.Share obj Mng 9.TP Calibration 0:Download 0:Download Page 3 System Menu 1.Key Bridge 0:Download Press [↑] button to previous page. ▪ Press [↓] button to next page. ▪ Castles Technology Co., Ltd. All Right Reserved. Pg. 10...
-
Page 11: Appendix
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Castles Technology Co., Ltd. All Right Reserved. Pg. 11... -
Page 12: Safety Warning For Power Source
à 65° C. Attention: Risque d'explosion si la batterie est remplacée par une de type incorrect. Éliminer la pile usagée conformément à la réglementation locale en vigueur. Castles Technology Co., Ltd. All Right Reserved. Pg. 12... -
Page 13: Industry Canada Statement
Impedance (Ω) Manufacturer Model Antenna Type Max Gain (dBi) ARISTOTLE ENTERPRISES Fixed external antenna -0.1 dBi 50 ohm SPORTON INTERNATION INC Loop antenna 50 ohm Castles Technology Co., Ltd. All Right Reserved. Pg. 13... - Page 14 WCDMA Band 4 WCDMA Band 5 LTE Band 2 LTE Band 4 Antenna Gain (dBi) LTE Band 5 LTE Band 12 LTE Band 13 LTE Band 14 LTE Band 66 ~ END ~ Castles Technology Co., Ltd. All Right Reserved. Pg. 14...
