Ensure that the connector guide pins are aligned, and mate the connector of the EPA to the connector on
Step 2
the line card, as shown in
Figure 2
Figure 3
Inserting an EPA into a Modular Gigabit Ethernet Line Card
2
Figure 2
and
Figure

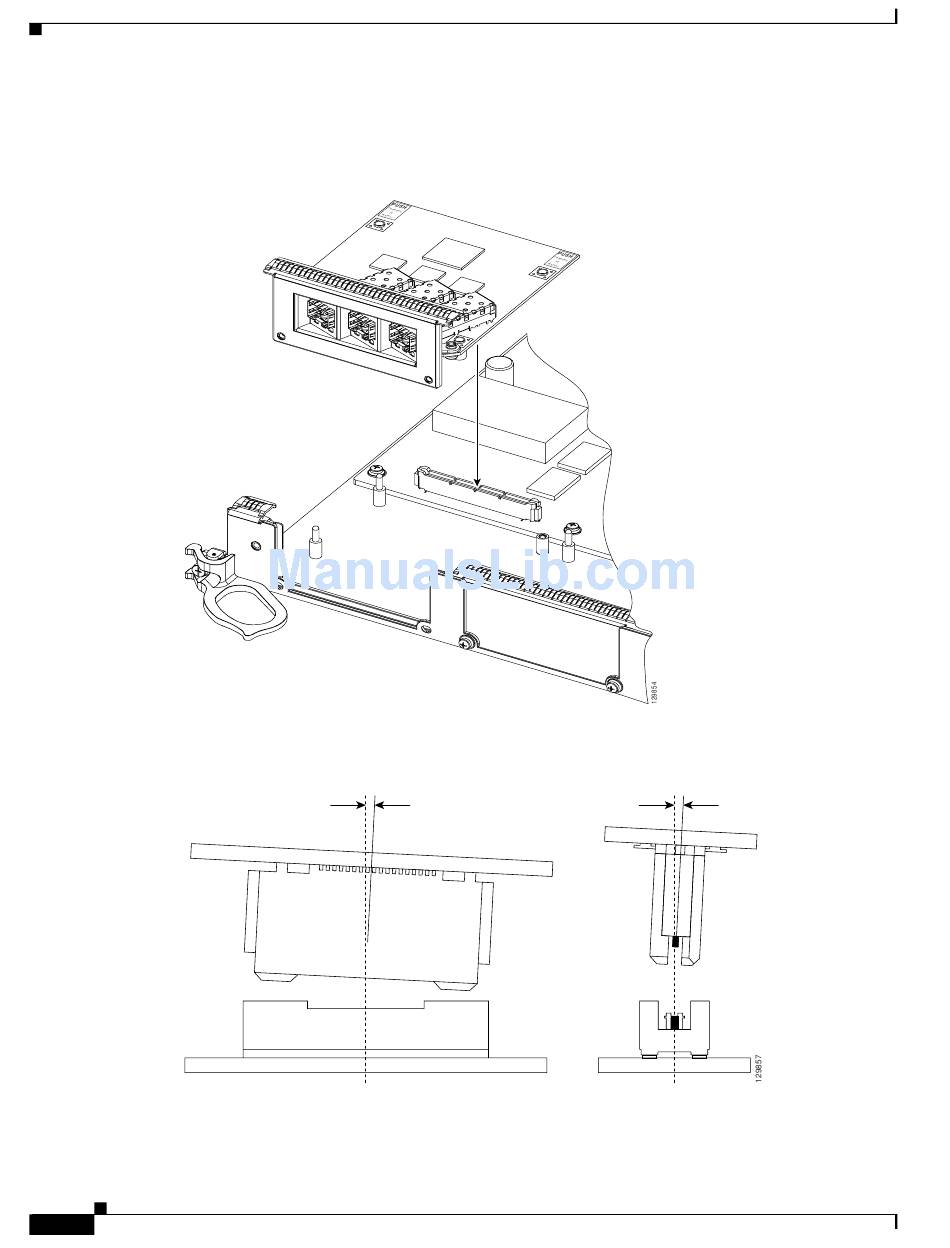

Mating the Connector of the EPA to the Line Card
Side Views - Mating the Connector of the EPA to the Line Card
20
˚
Max
3.
Figure 3
shows two side views of the EPA and line card.
4
˚
Max
78-17296-01 A0
