Inserting an EPA into a Modular Gigabit Ethernet
Line Card
December 16, 2005
Document Part Number: 78-17296-01 A0
To insert an EPA into the Modular Gigabit Ethernet line card, follow these steps:
You must use an ESD-preventive wrist or ankle strap to do this procedure. Attach an ESD-preventive
Warning
wrist or ankle strap and follow its directions for use, before you do this procedure.
Step 1
First, read the yellow caution label on the EPA.

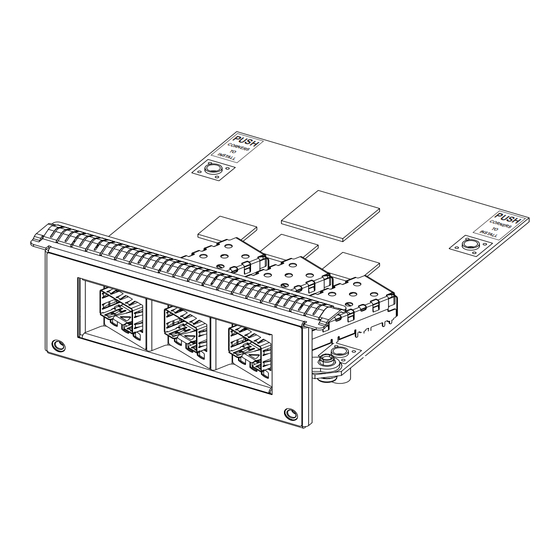

Figure 1
Locations of Labels and Reference Points on the EPA
ATTENTION:
USE CARE DURING INSTALLATION OF EPA CARD,
MIS-ALIGNMENT CAN CAUSE DAMAGE TO THE
CONNECTOR AT THE UNDERSIDE REAR OF THE PCB.
MAKE SURE THAT THE CONNECTOR IS FULLY
ENGAGED BY PUSHING DOWN ON THE 2X LABELS
BEFORE INSTALLATION OF FRONT PANEL SCREWS (2X).
DO NOT APPLY EXCESSIVE FORCE TO THE FRONT
PANEL OR TOP SURFACE DURING INSTALLATION OR
DAMAGE CAN OCCUR TO THE PCB CONNECTOR.
Caution
The connectors must be engaged without any angular misalignment. Engaging the connectors at an angle
will cause damage to the connectors.
Corporate Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Copyright © 2005 Cisco Systems, Inc. All rights reserved.
Figure 1
shows a sample of this caution label.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cisco Modular Gigabit Ethernet Line Card I
Summary of Contents for Cisco Modular Gigabit Ethernet Line Card I
- Page 1 The connectors must be engaged without any angular misalignment. Engaging the connectors at an angle will cause damage to the connectors. Corporate Headquarters: Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA Copyright © 2005 Cisco Systems, Inc. All rights reserved. Figure 1...
- Page 2 Ensure that the connector guide pins are aligned, and mate the connector of the EPA to the connector on Step 2 the line card, as shown in Figure 2 Mating the Connector of the EPA to the Line Card Figure 3 Side Views - Mating the Connector of the EPA to the Line Card ˚...
-
Page 3: Push Push
Ensure that the connector guide pins are aligned. Once the connector is engaged, apply gentle pressure Step 3 with your thumbs to the two rear outer corners of the EPA, as shown in Figure 4 Press on the Rear Outer Corners of the EPA Figure 5 Rear Outer Corners of the EPA (Close-up) 78-17296-01 A0... - Page 4 Press gently on the white labels in middle of the outer edge of the EPA as shown in Figure 6 to ensure Step 4 that the connector is fully seated. Figure 6 Press on the White Labels on the EPA Inserting an EPA into a Modular Gigabit Ethernet Line Card 78-17296-01 A0...
- Page 5 Use a Phillips screwdriver to insert and tighten the screw on the EPA, 3 to 5 in-lbs, as shown in Figure Step 5 Caution Apply no more than 5 in-lbs of torque when tightening the screw. Figure 7 Inserting and Tightening the Screw on the EPA Inserting an EPA into a Modular Gigabit Ethernet Line Card 78-17296-01 A0...
- Page 6 Use a Phillips screwdriver to insert and tighten the two screws on the faceplate of the line card, Step 6 3 to 5 in-lbs, as shown in Figure Caution Apply no more than 5 in-lbs of torque when tightening the screw. Figure 8 Inserting the 2 screws on the Faceplate of the Line Card Inserting an EPA into a Modular Gigabit Ethernet Line Card...
- Page 7 CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst,...
