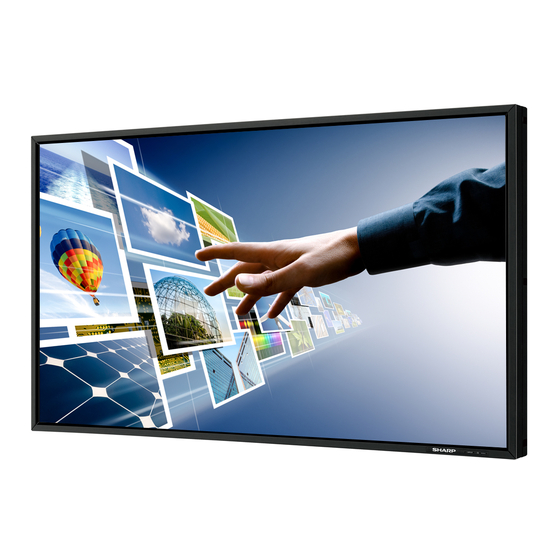

Sharp PN-V601 Installation Manuallines
Hide thumbs
Also See for PN-V601:
- Operation manual (117 pages) ,
- Specifications (4 pages) ,
- Release note (1 page)
Related Manuals for Sharp PN-V601
Summary of Contents for Sharp PN-V601
- Page 1 PN-V601 Installation Guidelines <Rev1.4> 2010/09/30 Business Solutions Equipment Division Business Solutions Dept. SHARP Corporation CONFIDENTIAL...
-
Page 2: Table Of Contents
In addition, please be reminded that values •Color Adjustment 1, 2 and expressions on this document are •Software tool subject to change without notice. • Software applications •Maintenance & check items •Periodical maintenance PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... -
Page 3: Procedures Of Installation
CONFIDENTIAL Procedures of Installation (Please thoroughly observe these recommendations) We recommend that the following procedures are entrusted to Sharp sales subsidiaries or dealers/contractors trained by Sharp. Check worker’s Make enough clothes and their space before belongings. starting the job. Wear simple clothes and... - Page 4 4. Installation with Wall-mounting Bracket and Stand - Unlike Sharp “PN-E” standard models, the PN-V601 requires close attention for handling due to its thin bezel. - Even the dealers or worker familiar with the conventional models must confirm precautions beforehand.
- Page 5 - Installation environment of the information display differs by individual cases. Please make appropriate installation by referring to this material. If you have any difficulty in making judgment about installation or have any comments/questions about the contents of this material, please ask SHARP Business Solution factory via your local Sharp sales window.
- Page 6 Moreover, if the temperature gets too high, the power of LCD display will be turned off and the display will be set to the standby mode. The heat impact on LCD surface The effect of high temperature Monitors will break down or uniformity issue will occur PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 7: Precautions For Temperature And Clearance Space 2
Consult us separately Note: However, please separately inquire in following cases: 1)when you install with outer casing, 2)When using protection panel, or 3) Closed installation like In-wall installation, etc. that surroundings are not opened. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... - Page 8 Remarks: The following shows the fan rotation speed. Setting 1: 50 %, Setting 2; 60%, Setting 3: 70%, Setting 4: 100% Note: The necessary clearance space is set when the front side (front cover) is opened. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 9 Above life is described as rough guide and it shall not warrant the life. Even within the warranty period, the replacement of fan caused by failure is charged. The warranty does not include pre-mature fan failure. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 10 Setting: Automatic Life time of fan: 5 years 30.0℃ Setting: Setting 1 Temperature Life time of fan: 2.5 years 25.0℃ Setting: Automatic 20.0℃ 3.5cm 10cm 20cm 30cm 40cm 50cm 60cm 70cm Clearance space PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 11 - If the display is placed inside a case or at the condition where surrounding temperature goes beyond the 0 degree C to 40 degree C range, please set the air-conditioner or take some measures to control the surrounding temperature around 0 degree C to 40 degree C. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 12 --> Monitor will break down or uniformity issue will occur. Utilizin the shade of the building Setting the monitor back to the place where there is no direct sunlight PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 13 Flow of Air will cause the distorted image (see example below), and will break down in the end. Duct Various kinds of circuits Backlight (Electronics, display circuits etc) Back-side LCD surface Flow of Air PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 14: Position Of Exhaust Fan And Intake Port
Cover removal (1180 Position of (232) cooling fan. Fan-cover is 4 places at attached backside. firmly with screws. Do NOT cover engine Intake port of cooling fan. grille. Do NOT cover this area. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... -
Page 15: Precautions For Dew Condensation, Water Drops, And Salt Damage
Do NOT set the monitor in the place where may be affected by sulfur such as the place near hot spring or volcano. - Damage of organic gas or flammable gas Do NOT set the monitor in the place where may be affected by organic gas or flammable gas. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... - Page 16 - Please consult for facing up installation. About power supply and voltage Circuit - PN-V601 is designed to be used under commercial breaker box 100V - 240V power supply.* When aligning multiple screens, shortage of power supply may occur. Consideration should be taken to collect several circuits and supply power evenly.
- Page 17 Image retention can be removed by displaying motion images or turning off the monitor. However, the longer the still image is being displayed, the harder to remove the image retention, therefore, the solutions mentioned above should be taken periodically. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 18: Operation Check Before Installation
Operation checking before installation Operation check before installation - Please confirm if each set of the PN-V601 can operate properly prior to the multi-screen positioning. If trouble is found after the installation, the labor for time detaching is required. In that context, we strongly recommend the operation check before installation. - Page 19 +2.0 mm/-0.5 mm (table on the right) Short-side 754.2 +2.0/-0.5 Considering display allowance (+2.0 mm/-0.5 mm), please leave space beforehand for adjustment when installing. <Weight> PN-V601 approx. 44kg PN-ZB02 approx.0.5kg PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 20 19mm, please do not cover engine grille. Please attach the tape before connecting cables. It is necessary to check the tape periodically to make sure that the tape isn’t detached from the display as time goes by. Monitor PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 21: Precautions For Space Between Displays
•Insert spacing installation device into the displays. • Align the position and then fix the monitors. Spacing installation device PN-V601 (1) PN-V601 (2) PN-V601 (3) •Extract the spacing installation device. PN-V601 (1) PN-V601 (2) PN-V601 (3) PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... - Page 22 PN-V601 (4) PN-V601 (5) PN-V601 (6) •Align the position and then fix the monitors. Spacing installation device PN-V601 (1) PN-V601 (2) PN-V601 (3) PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 23 PN-V601(4) PN-V601(5) PN-V601(6) •Align the position and then fix the Spacing installation device displays. PN-V601(1) PN-V601(2) PN-V601(3) PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 24 CONFIDENTIAL Precautions for space between displays ~ How to use space installment device (4)~ Procedure Image •Extract the spacing installation device. PN-V601(7) PN-V601(8) PN-V601(9) PN-V601(4) PN-V601(5) PN-V601(6) PN-V601(1) PN-V601(2) PN-V601(3) PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 25: Precautions On Stand Installation
For safety, please give measures for preventing fall of monitors in case of Portrait mode: [portrait] earthquake etc. - Secure firmly displays with wire or anchor etc. Landscape mode: [landscape] (Default setting) PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... -
Page 26: Precautions Of Wall Mounting
Installation mode setting on OSD (portrait or landscape) Please set installation orientation on OSD OSD setting procedure: [Screen setting] – [installation] Portrait mode: [portrait] Landscape mode: [landscape] (Default setting) Secure Clearance space for the rear PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... -
Page 27: Precautions In Installing And Handling 1
Please use rear handgrip or handle by the edge of the display in installing and moving. Please don’t handle any other part of the display. The PN-V601 is high – density product so that please pay attention NOT to let the edge of PV-V601 support the entire weight load. - Page 28 × display. 3.Please be sure not to preserve and bring up both the display itself and packaged display at a tilt. Please be sure to preserve and bringing it vertically. ?????? PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 29 Especially when the display is laid on the screen, the risk of the strain and damage of the parts increase. Please be sure not to drag the display. PN-V601 Protection sheets like blanket Bigger board than PN-V601 PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 30: Attachment Precaution 1
(not more than 7.5 mm) 固定用ネジ(M6) Screw (M6) 固定ボス Captive nut for Mounting fixing 取付金具 bracket 取付ネジ孔 Screw holes ディスプレイ Rear cover of display Rear cover of display 背面キャビネット In case of PN-V601 PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... - Page 31 If pressure is added to other parts, the display itself may be distorted or damaged. Support PN-V601 by holding both corners. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 32: Installation Tool 1
This installation handle is for improving efficiency of installation. Please use it if necessary. Installation eyebolt - For a crane to lift the PN-V601 up to a high location. device This device is inserted into holes on top of PN-V601 (UKOG1006MPZZ) and enable lifting the PN-V601 up by crane. - Page 33 It is easy to remove the cover. It is not required for installation. - 2 units of this cover are necessary per one PN-V601. * if you need above tools, please contact delivery agent or our sales reps. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010...
- Page 34 We will provide following service parts for installation (they are subject to fees) Name (temporary) Image Protection spacer (for - Protection of display landscape) Insert this spacer between the PN-V601 while (UKOG1009MPZZ) installing the neighboring PN-V601s. Gel Sheet (thickness: 1 mm) Thickness: 1.0mm...
- Page 35 (The LCD side is the front). Rear LCD side side On the second screw from the bottom on the back row (The LCD side is the front). PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 36 （UKOG1004MPZZ） -This stand is for fixing PN-V601 temporarily to check operation and perform settings before installation. 2 pieces of this stand are necessary per one PN-V601. Supply cable for 200 volts Supply cable for 200 -Supply cable for 100 (120V) volts is enclosed in volts PN-V601 for Japan (US) model.
- Page 37 -Please attach bezel sheets on the 4 sides of the PN- V601 to cover the white areas on the sides of the display. -4 bezel sheets is necessary per one PN-V601(for top / bottom / right / left side). Bezel sheet...
- Page 38 • We will recommend you to select a wireless mouse and keyboard to assist with PC operation. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 39 - The color can be adjusted by the image adjustment function of the display by operating remote controller or the control tool offered from our company. (Please refer to software tool, SHARP Monitor Control Software. ) - Also, it can be adjusted with the color calibration tool from our company. (Please refer to software tool, Multi Display Calibration Tool).
-
Page 40: Color Adjustment
Fine-tunes for the gamma value with manual adjustment of the Fine-tunes for the gamma value calibration tool. with manual adjustment of the calibration tool. Can adjust End of Adjustment End of Adjustment for One unit PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... -
Page 41: Software Tool
(to be purchased). http://spyder.datacolor.com/product-mc-s3pro.php Sharp will provide this software. *: About the method of obtaining this software tool, please consult our sales window, or the dealers/resellers from which you bought the main unit. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL... - Page 42 - Can monitor display condition (if by any chance) Sharp will provide this software. *: About the method of obtaining this software tool, please consult our sales window, or the dealers/resellers from which you bought the main unit. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
-
Page 43: Software Applications
Tentative name Figure Image ・Stand Alone version SDSS (Sharp Digital (PN-SS01) Signage Software) - PN-SS01 is used to control PN-V601 when connecting it to one PC without LAN network. ・Network version / Viewer version (PN-SS02) (PN-SV01) -PN-SS02 and PN-SV01 are used when distributing contents from the server via LAN network. - Page 44 •Please use a static electricity removal brush (dustproof brush) commercially available when dust attaches to the LCD. •Please do not wipe with a damp or dusty cloth, in order to protect the LCD. PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 45 Air flow dust from inside ensuring that the screws do not fall inside. Duct Various kinds of circuit Backlight (electronics, display circuit, etc.) Back-side LCD surface 1) Dust off from outside Air flow PN-V601 Installation Guidelines <Rev1.4 > September.30, 2010 CONFIDENTIAL...
- Page 46 As for the replacement parts, please consult the dealers/resellers that sold the main unit or the sales contact of our company. In addition to the periodical maintenance, we would like you to study Maintenance contract with Sharp sales subsidiaries or dealers/contractors trained by Sharp.
