Hi-Target V200 Quick Start Manual

TECHNICAL SPECIFICATIONS
GNSS Feature
Specification
Channels
GPS
BDS
GLONASS
GNSS Signal
①
Galileo
SBAS
QZSS
IRNSS
High-precision static GNSS Surveying
Static and Fast Static
Post Processing Kinematic
(PPK / Stop & Go)
Positioning Code Differential GNSS Positioning
Performance
Real Time Kinematic (RTK)
Time to first Fix
Hi-Fix ②
Tilt Survey Performance
Communication
Communication
Internal UHF Radio
Internal battery
Physical
External power
LED Lamp
Control Panel
Physical button
Water / Dustproof
Shock and vibration
Environment
Humidity
Operation temperature
Storage temperature
1 × USB port, Type C
I / O Interface
1 × SMA antenna connector
Output rate
Static data format
Data Formats
Network model
CMR& RTCM
Navigation outputs ASCII
*Description and Specifications are subject to change without notice.
1.Compliant, but subject to availability of IRNSS and Galileo commercial service definition. Galileo E6 and IRNSS L5 will be provided through future product upgrade.
2.Accuracies are dependent on GNSS satellite availability. Hi-Fix positioning ends after 5 minutes of radio downtime. Hi-Fix is not available in all regions, check with your local
sales representative for more information
AUTHORIZED DISTRIBUTION PARTNER
Hi-Target Surveying Instrument Co. Ltd
ADD: Building 13, Tian'An Technology Zone HQ Center, No. 555, North of Panyu RD, Panyu District, 511400 Guangzhou, China.
www.hi-target.com.cn +86-20-28688296 info@hi-target.com.cn
800+
L1 / L2 / L5 / L2C
B1 / B2 / B3 / B1C / B2a
L1 / L2 / L3
E1 / E5 AltBOC / E5a / E5b / E6
L1 / L5
L1 / L2 / L5 / L6
L5
Horizontal:2.5mm + 0.1ppm RMS Vertical:3.5mm + 0.4ppm RMS
Horizontal:2.5mm + 0.5ppm RMS Vertical:5mm + 0.5ppm RMS
Horizontal:8mm + 1ppm RMS Vertical:15mm + 1ppm RMS
Initialization time:Typically 10 min for base and 5 min for rover
Initialization reliability:Typically>99.9%
Horizontal:±0.25m+1ppm RMS
Vertical:±0.5m+1ppm RMS SBAS:0.5m (H), 0.85m (V)
Horizontal:8mm+1ppm RMS Vertical:15mm+1ppm RMS
Initialization time:Typically <10s Initialization reliability:Typically > 99.9%
Cold start:< 45 s Hot start:< 30 s Signal re-acquisition:< 2 s
Horizontal:RTK+10mm / minute RMS Vertical:RTK+20mm / minute RMS
Additional horizontal pole-tilt uncertainty typically less than
8 mm +0.7 mm / °tilt (2.5cm accuracy in the inclination of 60°)
Bluetooth:4.2 / 2.1+EDR, 2.4GHz
Wi-Fi:frequency 2.4GHz, Supports 802.11 b / g / n
Frequency:410-470MHz Channel:116 (16 scalable)
Transmitting power:0.5W / 1W / 2W adjustable
Supports multi-communication protocols:HI-TARGET, TRIMTALK450S,
TRIMMARK III, TRANSEOT, SATEL-3AS, etc.
Internal 7.4V / 6800mAh lithium-ion rechargeable battery.
RTK Rover (Network) for 12 hours. Static:up to 15 hours
Power consumption:4.2W Dimensions (W×H):132mm×67mm
Charging:using standard smartphone chargers or external power banks.
Weight:≤0.8kg (includes battery) Data storage:8GB ROM internal storage
Satellite, Signal, Power
1
IP67
Designed to survive a 2m natural fall onto concrete
100%, condensing
-30℃~+70℃
-40℃~+80℃
1Hz-20Hz.
GNS, Rinex
VRS, FKP, MAC; supports NTRIP protocol
CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2
NMEA-0183
22M115T

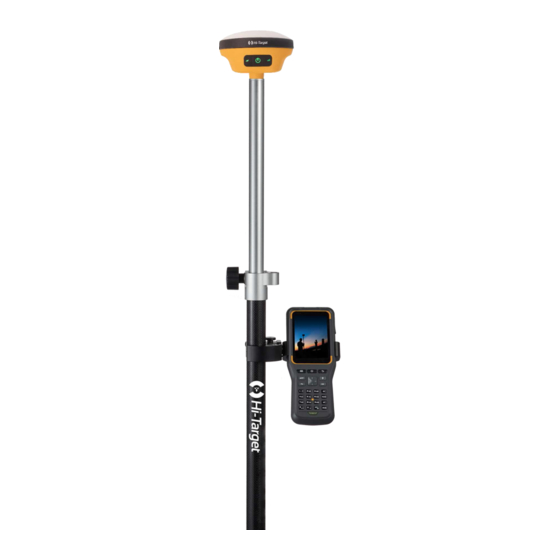

V200
GNSS RTK System
