Alarm settings

The alarm settings are adjusted in the protection setup menu.

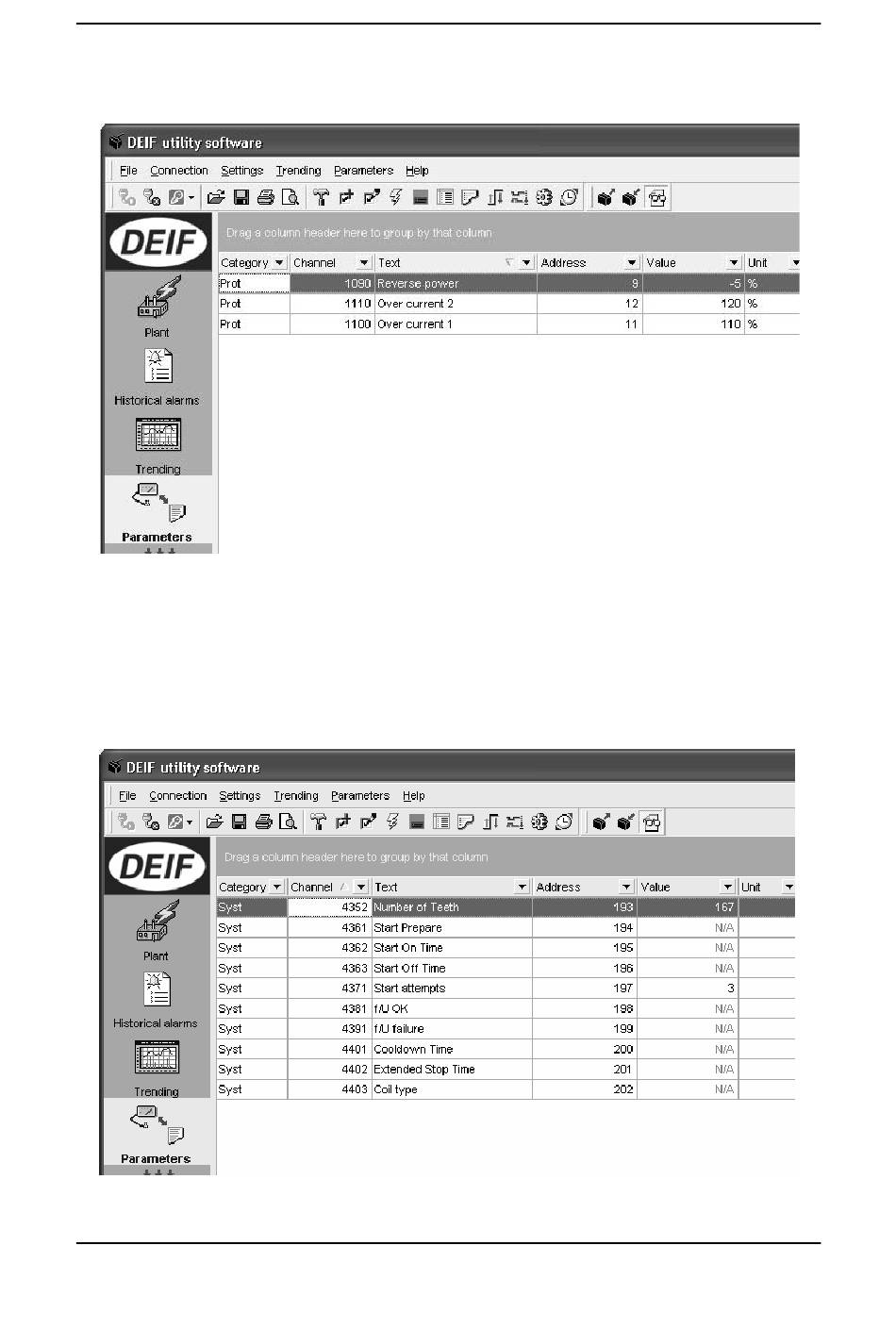

In the PC utility software it is presented as illustrated on the screen dump above or similar. The
screen dump includes the protection alarms of the standard multi-line 2. The number of alarms
depends on the options selection of the individual unit. The actual alarm parameters are adjusted
according to customer requirements and application requirements.

Function control settings

The function control settings are adjusted in the system setup and the power setup menu.
In the screen dump above, the adjustments for the start and stop sequences are illustrated. Since
the function control settings include parameters for the entire functionality of the multi-line 2, they
