APPLICATION NOTES
DELOMATIC 4, DM-4 GAS/HYDRO
PCM TCP/IP port (WebArm)
• TCP/IP setup
Document no.: 4189340652A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELOMATIC 4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Deif DELOMATIC 4 Series

Summary of Contents for Deif DELOMATIC 4 Series

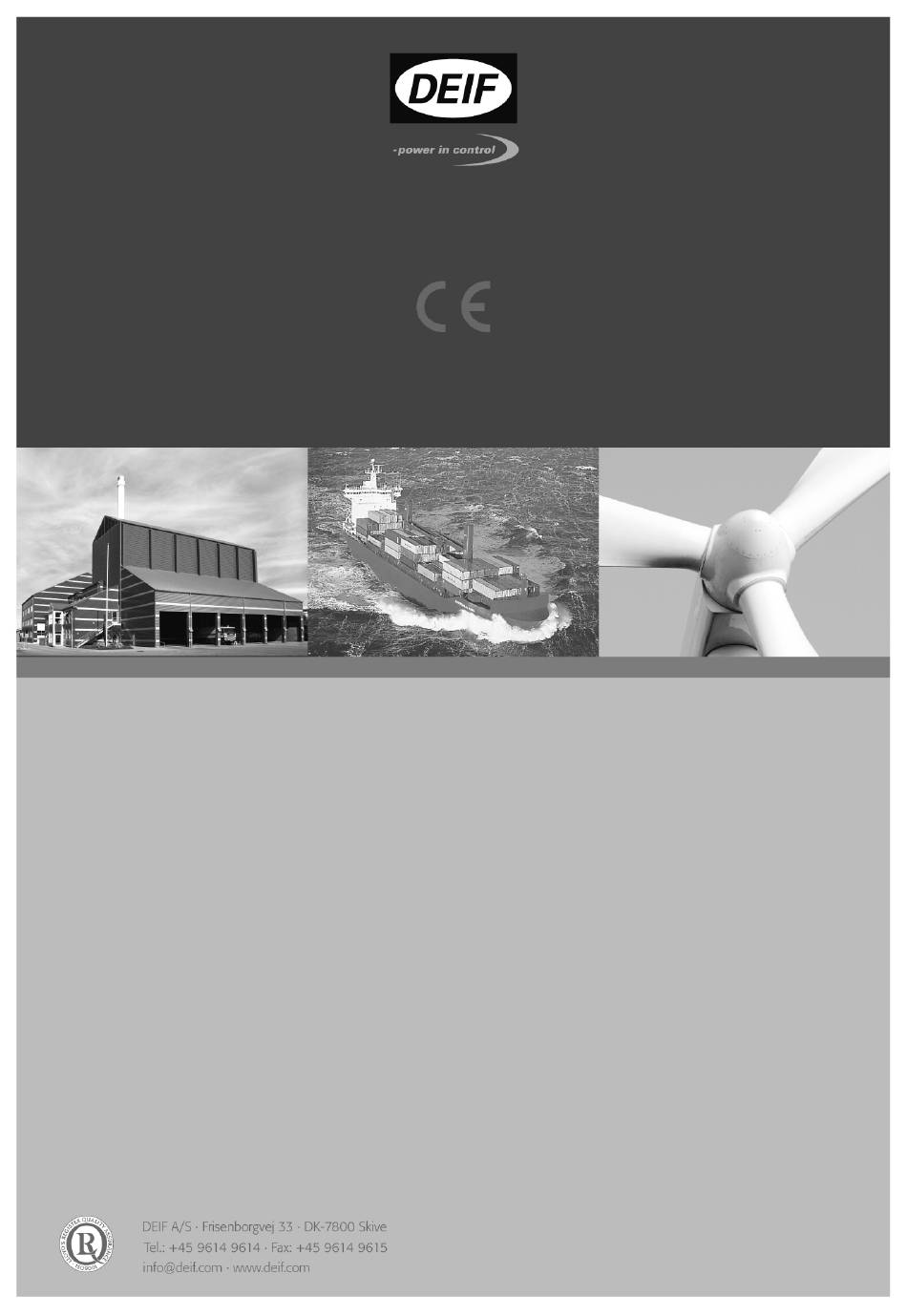

  • Page 1 APPLICATION NOTES DELOMATIC 4, DM-4 GAS/HYDRO PCM TCP/IP port (WebArm) • TCP/IP setup Document no.: 4189340652A...

  • Page 2: Table Of Contents

    ABSTRACT ..........................5 CONFIGURATION OF THE PCM CARD ................6 ..................6 HECK SOFTWARE VIA CONNECTION ....................7 HECK SOFTWARE WITH TELNET PC IP ....................8 HANGE OF CONFIGURATION DM-4 IP ........................10 ADDRESS DEIF A/S Page 2 of 10...

  • Page 3: About This Document

    Application Notes, PCM TCP/IP port (WebArm) 1. About this document General purpose This document continues the application notes for DEIF’s Delomatic 4, DM-4, used in GAS or HYDRO applications. For functional descriptions, the procedure for parameter setup, complete standard parameter lists, etc., please see the Installation Instructions.

  • Page 4: Warnings And Legal Information

    2. Warnings and legal information Legal information and responsibility DEIF takes no responsibility for installation or operation of the generator set. If there is any doubt about how to install or operate the generator set controlled by the unit, the company responsible for the installation or the operation of the set must be contacted.

  • Page 5: Abstract

    The DM-4 offers TCP/IP communication, which may need to be changed (address etc.). This document is the instruction manual that tells how to carry out changes and which changes are available. Furthermore, it describes how to check the PCM module (WebArm module). DEIF A/S Page 5 of 10...

  • Page 6: Configuration Of The Pcm Card

    Open your internet browser. Key-in the IP address in the address field: Click “enter”. You now get the information screen from the PCM card: Select “Device Status” You may be prompted for a name and password: User name: admin Password: admin DEIF A/S Page 6 of 10...

  • Page 7: Check Software With Telnet

    Alternative to using a web browser: Check software with telnet Under Windows start prompt: Select “Run”. Write “cmd” and press enter. The command prompt will appear. Now start telnet Command: telnet ip-address (example: telnet 192.168.2.21) DEIF A/S Page 7 of 10...

  • Page 8: Change Of Pc Ip Configuration

    If it is not possible to establish connection, the PC IP setting may have to be changed: Select in windows START: - Settings - Control panel - Network connections - Local area connection - Properties - Internet protocol (TCP/IP) DEIF A/S Page 8 of 10...
  • Page 9 In the prompt write: ping 192.168.2.21 (example, use the relevant DM-4 IP address). If successful, the prompt looks like this: Now the DEIF HMI BROWSER can be used, and the user interface can be started. DEIF A/S Page 9 of 10...

  • Page 10: Ip Address

    When the IP address is changed, only the new address can be used to access the DM-4 via TCP/IP. Make sure that you use a valid address if changing it. Example: DEIF A/S reserves the right to change any of the above. DEIF A/S Page 10 of 10...
