Settings Check; Settings; Nominal Values - Deif Multi-line 2 General Manuallines For Commissioning

Multi-line 2
It is necessary to perform a settings check. This is done following five individual steps:
1. Check and adjust the nominal settings.
2. Check and adjust the alarm settings.
3. Check and adjust the function control settings.
4. Check and adjust the speed controller settings.
5. Check and adjust the voltage controller settings.
The above-mentioned settings must be checked and adjusted prior to the initial starting of the
gen-set.
The settings can be adjusted either through the display or through the PC utility
software. For navigating in the menus see the Operator's Manual.
The nominal values of the multi-line 2 are adjusted in the system setup menu.

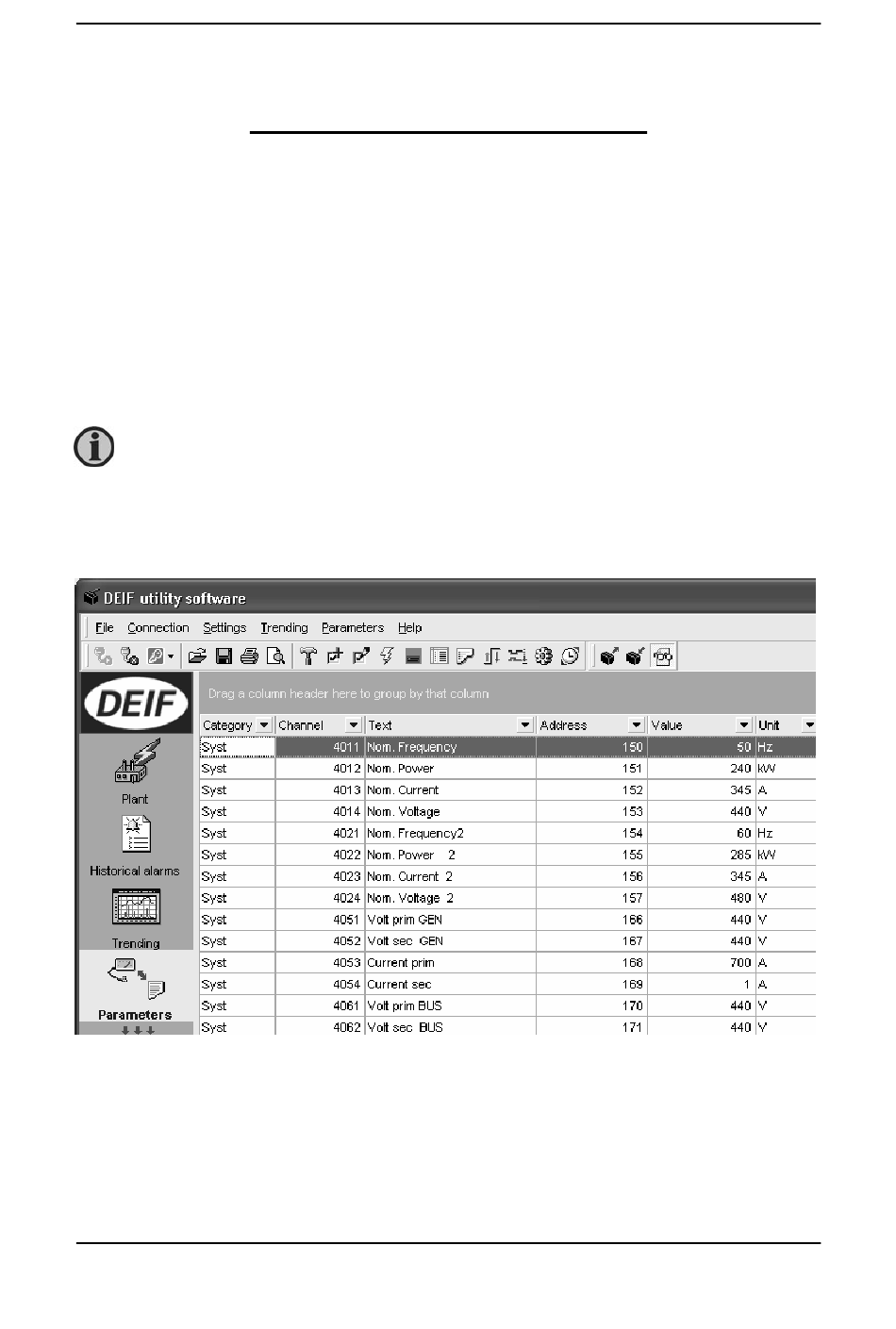

In the PC utility software it is presented as illustrated on the screen dump above. The correct
values are supplied by the switchboard manufacturer.
