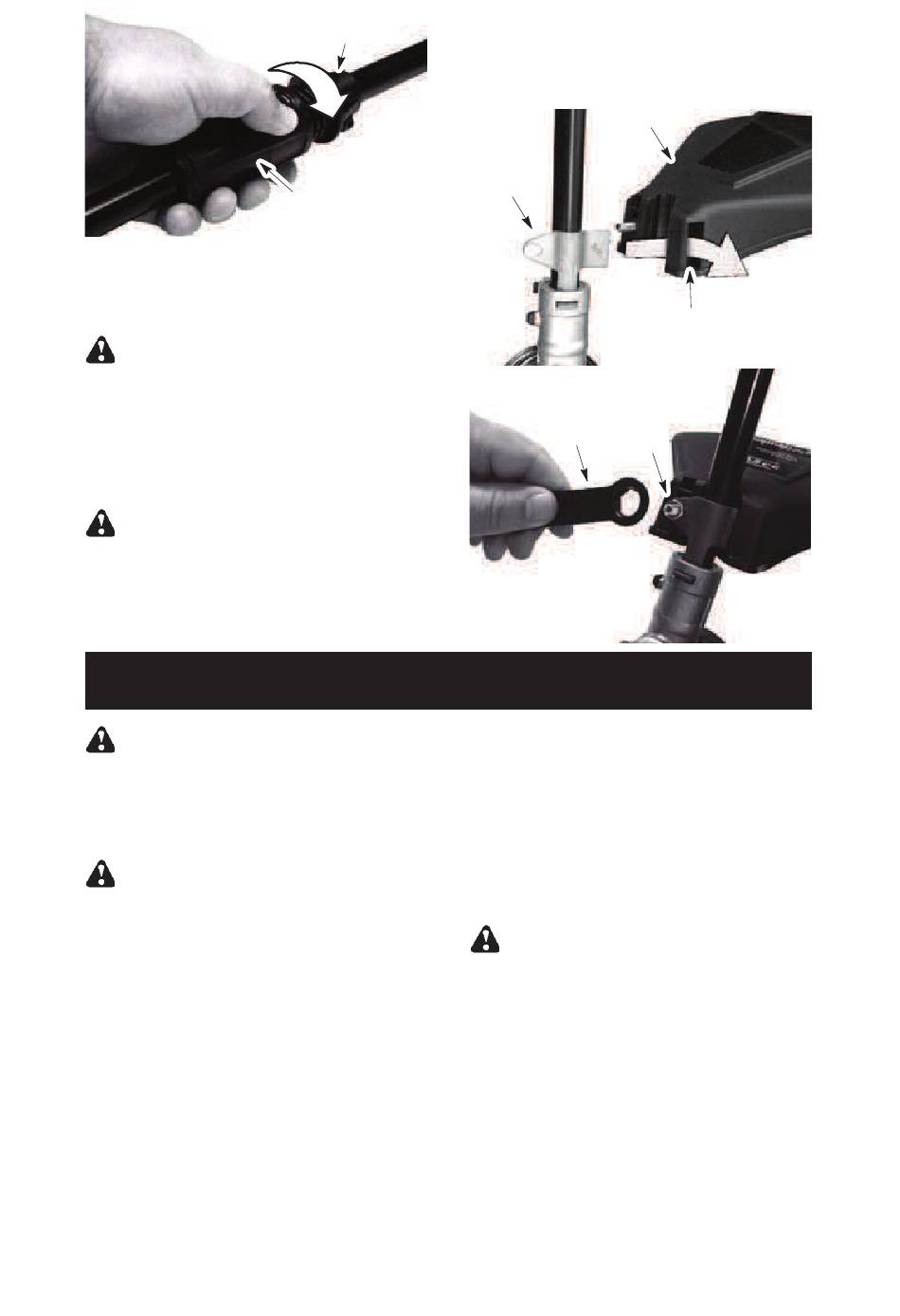

Operation - McCulloch TRIMMAC LT25NCOP Operator's Manual

Upper Locking
Sleeve Assembly
NOTE:
If locking sleeve assembly will not
tighten, the shafts are not fully seated.
ADJUSTING THE HANDLE
WARNING:
When adjusting the assist
handle, be sure it remains above the locking
sleeve assembly and below the mark or arrow
on the shaft.
1. Loosen wing nut on handle.
2. Rotate the handle on the shaft to an up-
right position; retighten wing nut.
ATTACHING THE SHIELD
WARNING:
The shield must be prop-
erly installed. The shield provides partial
protection from the risk of thrown objects to
the operator and others and is equipped with
a line limiter which cuts excess line. The line
limiter (on underside of shield) is sharp and
can cut you.
WARNING:
Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Contact an
authorized service dealer.
FUELING ENGINE
WARNING:
Remove fuel cap slowly
when refueling.
This engine is certified to operate on un-
leaded petrol. Before operation, petrol must
be mixed with a good quality 2- -cycle air- -
cooled engine oil designed to be mixed at a
ratio of 40:1. A 40:1 ratio is obtained by mixing
5 liters of unleaded petrol with 0,125 liter of oil.
DO NOT USE automotive oil or marine oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on oil
container. Once oil is added to petrol, shake
container momentarily to assure that the fuel
is thoroughly mixed. Always read and follow
the safety rules relating to fuel before fueling
your unit.
Lower Locking
Sleeve Assembly

OPERATION

5
1. Remove nut from shield.
2. Insert bracket into slot on shield.
3. Pivot shield until bolt passes through hole
in bracket.
4. Reinstall nut and tighten securely with
wrench (provided).
Shield
Bracket
Wrench
Nut
CAUTION:
Never use straight petrol in your
unit. This will cause permanent engine dam-
age.
FUEL REQUIREMENTS
Use good quality unleaded petrol. The lowest
recommended octane grade is 90 (RON).
IMPORTANT
Use of alcohol blended fuels (more than 10% al-
cohol) can cause major engine performance
and durability problems.
WARNING:
Incorrect use of fuel and/
or lubricants will cause problems such as:
improper clutch engagements, overheat-
ing, vapor lock, power loss, lubrication defi-
ciency, deterioration of fuel lines, gaskets
and internal carburetor components, etc.
Alcohol blended fuels will cause a high ab-
sorption of moisture in the fuel/oil mixture,
causing the separation of oil and fuel.
HOW TO STOP YOUR UNIT
S To stop the engine, move the ON/OFF
switch to the OFF position.
Slot
