1.2.2 WNM-4GE-S
Module Appearance

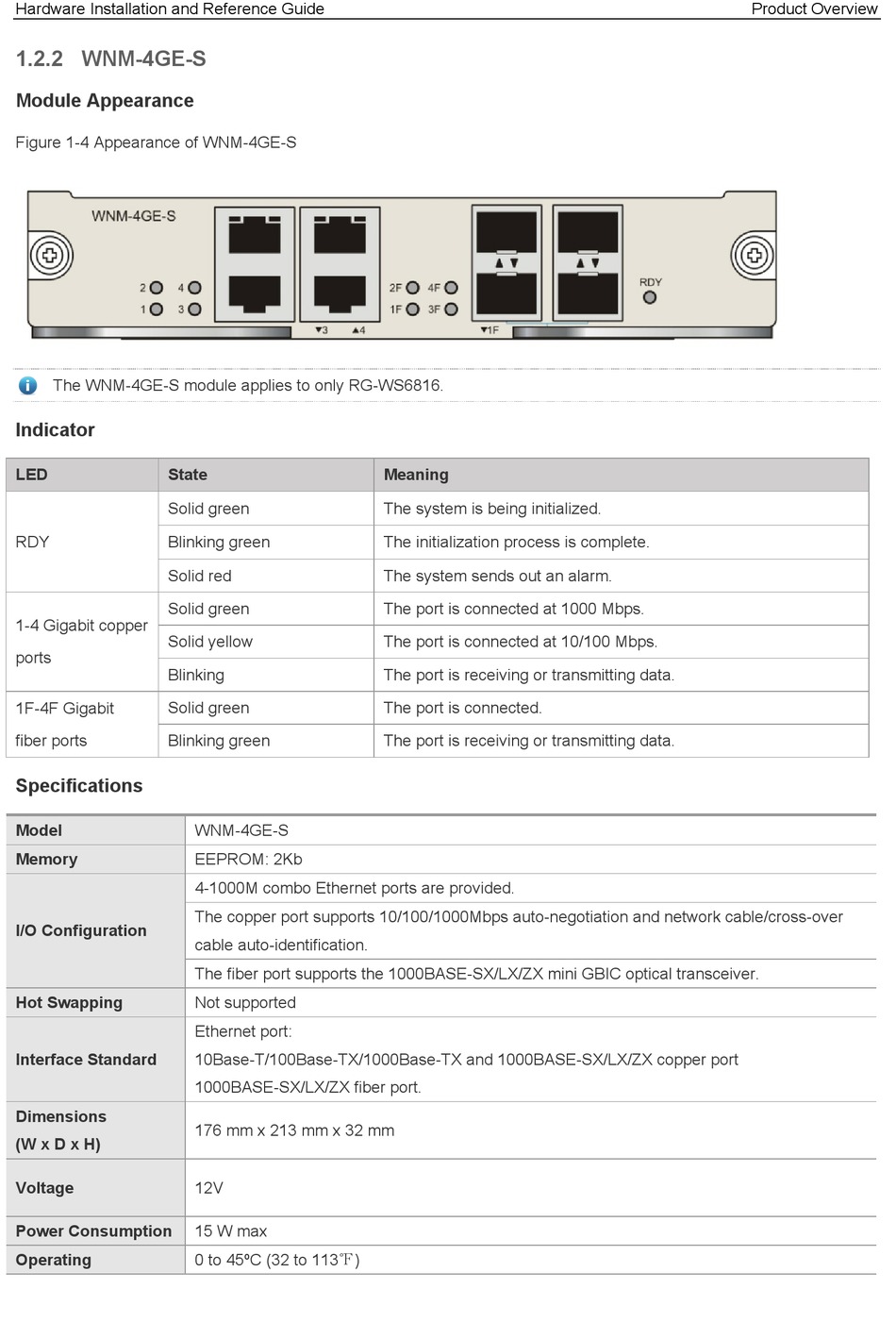

Figure 1-4 Appearance of WNM-4GE-S
The WNM-4GE-S module applies to only RG-WS6816.
Indicator
LED State
Solid green
RDY Blinking green
Solid red
Solid green
1-4 Gigabit copper
Solid yellow
ports
Blinking
1F-4F Gigabit Solid green
fiber ports
Blinking green
Specifications
Model
Memory
I/O Configuration
Hot Swapping
Interface Standard
Dimensions
(W x D x H)
Voltage
Power Consumption
Operating
WNM-4GE-S
EEPROM: 2Kb
4-1000M combo Ethernet ports are provided.
The copper port supports 10/100/1000Mbps auto-negotiation and network cable/cross-over
cable auto-identification.
The fiber port supports the 1000BASE-SX/LX/ZX mini GBIC optical transceiver.
Not supported
Ethernet port:
10Base-T/100Base-TX/1000Base-TX and 1000BASE-SX/LX/ZX copper port
1000BASE-SX/LX/ZX fiber port.
176 mm x 213 mm x 32 mm
12V
15 W max
0 to 45ºC (32 to 113℉)
Meaning
The system is being initialized.
The initialization process is complete.
The system sends out an alarm.
The port is connected at 1000 Mbps.
The port is connected at 10/100 Mbps.
The port is receiving or transmitting data.
The port is connected.
The port is receiving or transmitting data.
