INSTALLATION MANUAL BID 01
R
WOODBRIDGE

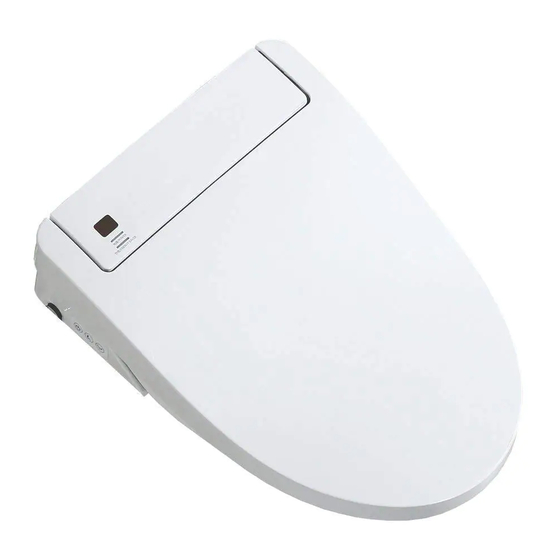

ELECTRONIC TOILET SEAT
Installation Manual
● Thank you for choosing our products.Please read the instructions carefully before
installation and keep it available for future maintenance or reference.
●Our company reserves the right of final interpretation for this manual.
The manual is subject to change without notice.
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: help@woodbridgebath.com
20220630 REV. 1
www.woodbridgebath.com
Advertisement
Table of Contents
Related Manuals for Woodbridge BID 01
Summary of Contents for Woodbridge BID 01
- Page 1 INSTALLATION MANUAL BID 01 WOODBRIDGE ELECTRONIC TOILET SEAT Installation Manual ● Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference. ●Our company reserves the right of final interpretation for this manual.
-
Page 2: Important Safeguards
WOODBRIDGE IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions shouldalways be followed, including the following: 1.The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 3: Important Safety Instructions
WOODBRIDGE IMPORTANT SAFETY INSTRUCTIONS CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc.This product must be connected to properly grounded power outlet socket. -
Page 4: Technical Specification
WOODBRIDGE TECHNICAL SPECIFICATION Rating pressure 110-120V,50/60Hz Rating power 1050-1250W Main Unit Minimum water pressure 0.07MPa (20L/min. flowing pressure). Water pressure range Maximum water pressure 0.8MPa (Hydrostatic pressure) Electrical wire length is about 1.8m Container capacity 600ml Heating power 1000W Water... -
Page 5: Packaging List
WOODBRIDGE PACKAGING LIST Remote Control Panel Parts Base plate Base Plate Parts Water Supply Assembly Installtion Installtion Manual Manual Installtion Warranty Warranty Installation Warranty Card Card Manual Card paperboard Installation Installation paperboard paperboard Main Unit www.woodbridgebath.com... - Page 6 WOODBRIDGE MAIN UNIT IDENTIFICATION Water inlet Water connector discharging cover Side receiving Main unit window disassembly button Main unit button Socket REMETTRE RESET TEST WARNING: TEST BEFORE EACH USE 1. PLUG INTO RECEPTACLE 2. PRESS RESET BUTTON: VISUAL INDICATOR APPEARS.
-
Page 7: Installation Dimension
WOODBRIDGE INSTALLATION LNSTRUCTION Installation dimension Note:please check if the installation dimension matching the user’s toilet. 15 1/8" 5 1/8"~6 1/2" Installation of mounting plate Press the expansion nuts into the installation holes in the toilet,then install the base plate, plastic plates,flat washers and bolt as per the drawing and tighten the bolts. - Page 8 WOODBRIDGE Installation and disassembly of main unit Disassembly Installation Press the “removal button” on bidet, Push the bidet back onto the base until a “click” is heard,and pull it out. plate until a “click” is heard. Installation Note: Before pulling out the bidet, release hand from “removal button”.
-
Page 9: Installation Instruction
WOODBRIDGE INSTALLATION INSTRUCTION Checking the power and water supply Insert power line leakage protection plug into Connect the water supply hose and turn on the the power socket, press the reset switch, plug angle valve.Check if any leakage. indicator lights on indicating that the power is on. - Page 10 WOODBRIDGE Function illustration of keys in main unit and actuator 1. Long press “Power” button to enter standby mode; and then quick press “Power” button to restore functional mode. 2. When people sit, press “Power” button to stop the Power function of rear, front cleaning or drying.
-
Page 11: Daily Maintenance
WOODBRIDGE DAILY MAINTENANCE Main unit maintenance 1.Shut off power supply at maintenance. 2.Turn the seat upward open,press down the button located on the right side of main unit and pull out the seat.Wipe the stain with a soft damp cloth. - Page 12 WOODBRIDGE Inlet filter cleaning 1.Pull out electrical plug,then shut off water supply valve and remove water supply hose. 2.Remove the filter.Use the brush to clean the filter. 3.Put the filter back into inlet after cleaning.Then connect the water supply pipe.
-
Page 13: Troubleshooting Guide
If the leakage circuit breacker often trips off, it means the products has electricity leakage, so please shut-off the Caution power, and contact service provider for maintenance. Retain these installation instructions for future reference! Thank you for using WoodBridge products! www.woodbridgebath.com... -
Page 14: Installer Information
WOODBRIDGE NOTES NOTES INSTALLER INFORMATION INSTALLER INFORMATION DATE OF INSTALL: DATE OF INSTALL: INSTALLER’S NAME: INSTALLER’S NAME: PLUMBER: PLUMBER: CONTRACTOR: CONTRACTOR: LICENSE #: LICENSE #: www.woodbridgebath.com... - Page 15 www.woodbridgebath.com...
- Page 16 Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help@woodbridgebath.com www.woodbridgebath.com...
