USER MANUAL BID 01

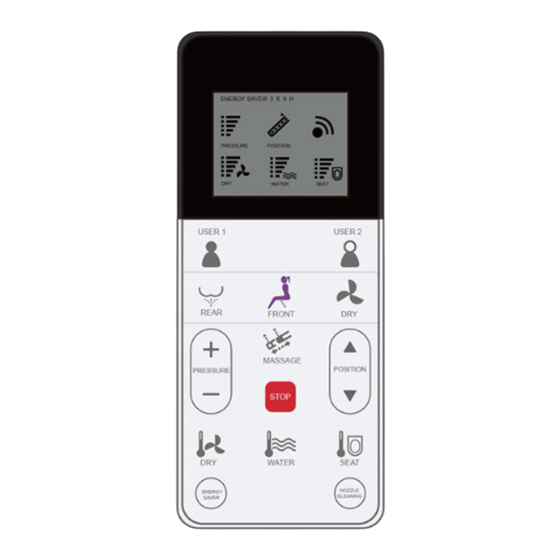

Remote Control Illustration
Thank you for choosing our product.Please read the instructions carefully before
installation and keep it available for future maintenance or reference.
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
WOODBRIDGE
USER 1
USER 2
REAR
FRONT
MASSAGE
PRESSURE
POSITION
STOP
DRY
WATER
SEAT
NOZZLE
ENERGY
CLEANING
SAVER
FLUSH
Or Email: help.woodbridge@gmail.com
www.woodbridgebath.com
R
DRY
2020216 REV. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BID 01 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodbridge BID 01

Summary of Contents for Woodbridge BID 01

  • Page 1 USER MANUAL BID 01 WOODBRIDGE Remote Control Illustration USER 1 USER 2 REAR FRONT MASSAGE PRESSURE POSITION STOP WATER SEAT NOZZLE ENERGY CLEANING SAVER FLUSH Thank you for choosing our product.Please read the instructions carefully before installation and keep it available for future maintenance or reference.

  • Page 2: Installation Preparation

    WOODBRIDGE REMOTE CONTROL ILLUSTRATION Installation Preparation Remote control installation Remote control hanger installation Drill a hole of ∮6mm on the wall with (2)Tear the paster on back of depth of 35mm. hanger. Make sure end-user be able to reach the remote control when sitting on the seat.

  • Page 3: Usage Instruction

    WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Remote control illustration Signal instruction ENERGY SAVER 3 6 9 H PRESSURE POSITION WATER SEAT USER 1 USER 2 User code User code Front cleaning Rear cleaning Drying REAR FRONT Massage Water pressure MASSAGE...

  • Page 4: Drying Operation

    WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Rear/Front cleaning Press “REAR”/“FRONT ” button, the water comes out of wand to clean the rear/front portion of body. It automatically stops after a cycle of cleaning. If press “STOP” button when using, the function will stop immediately.
  • Page 5 WOODBRIDGE Usage Instruction Massage Press “MASSAGE” button to activate massage function, the nozzle moves forward and back to extend the cleaning scope; Press “MASSAGE” button again to stop the function. Spray nozzle position adjustment During “REAR” or “FRONT”, press spray nozzle button of “ ” and “ ”, to move the position forward and backward by adjusting 5 levels.
  • Page 6 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Energy saver Setting energy saver time Press “ENERGY SAVER” button, LCD screen shows energy saver and figures. It shows three options of energy saver period as 3-6-9-off, which can be selected accordingly. For example, user can set from 9:00 to 15:00 as energy saver according to following operation.

  • Page 7: Nozzle Cleaning

    WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Full flush (Onlyforthetoiletwithautoflushfunction） Press “FLUSH” button to activate full flushing. FLUSH Nozzle cleaning self-clean for 90 seconds. NOZZLE CLEANING Nozzle self-cleaning by Nozzle self-cleaning by quick long press： ： press Long press “NOZZLE Quick press “NOZZLE CLEANING”...

  • Page 8: Temperature Adjustment

    WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Temperature adjustment ENERGY SAVER 3 6 9 H WATER SEAT PRESSURE POSITION WATER SEAT Dry temperature adjustment: Press“DRY”button to adjust temperature for drying. ENERGY SAVER 3 6 9 H The LCD display of 1 to 5 lines means level 1 to 5.NO display means normal temperature.To adjust level by up and down cycle.
  • Page 9 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction User code （Only for the toilet with User code function） Long press “USER 1” or “USER 2”button to save the parameters, including current pressure, nozzle position, dry temperature, water temperature, seat temperature and massage status. Quick press “USER 1” or “USER 2” button to use saved parameter.

  • Page 10: Auto Function

    WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction （Only for the toilet with auto flush function） Auto function Full-automatic function can be achieved by three “AUTO” buttons, convenient and practical. User can pre-set the suitable nozzle position, water pressure and temperature and save the setting. Full-automatic function will be activated by pressing the related function button when using afterwards.
  • Page 11 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Usage Instruction Combination button Night light  Press “STOP” button, then “DRY” button, night light will be often in the off state;          Repeat the process, night light will switch to intelligent state. Repeat above process constantly, the night light will switch between off state and intelligent state.
  • Page 12 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Set auto function Set automatic Rear cleaning function The default setting of automatic function is water pressure on level three, nozzle position on level three, water temperature, wind temperature and seat temperature on level three, the massage function is in the off state. User can re-set based on personal preference.
  • Page 13 WOODBRIDGE REMOTE CONTROL ILLUSTRATION Set auto function Set automatic Front cleaning function (1)Press spray nozzle position adjustment button to adjust nozzle to suitable position; Press “+”, “-” to adjust water pressure; set temperature level; open/ close massage function. (2)Press “...
  • Page 14 If user needs to change previous settings, please repeat step 1-3. Thank you for using WoodBridge products! Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help.woodbridge@gmail.com...
