Woodbridge F0007BGRD Installation

Freestanding faucet
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
WOODBRIDGE

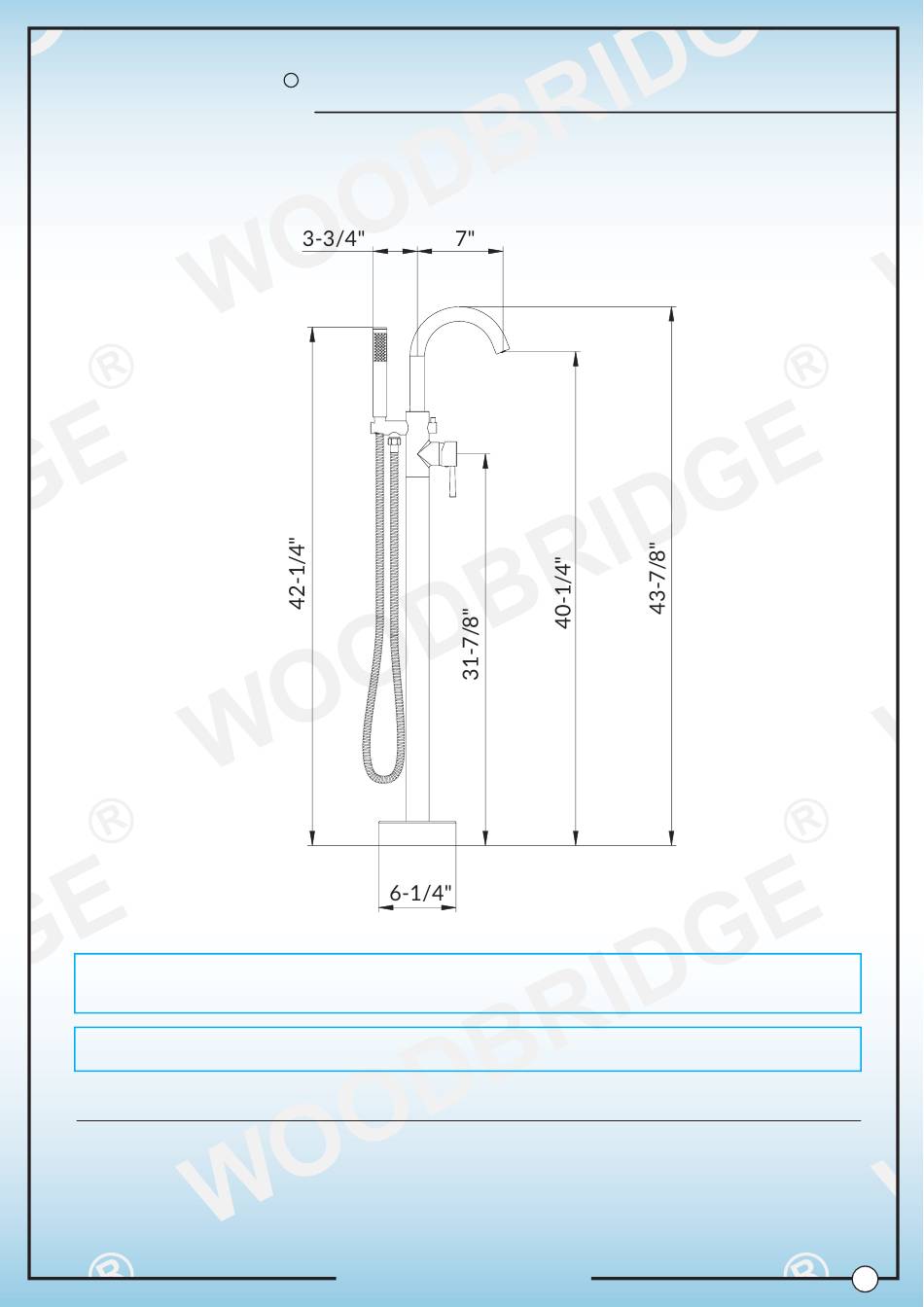

ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to get
TECHNICAL DATA
Max spout flow rate 2.5 GPM at 60 PSI
Max hand shower flow rate 1.8 GPM AT 60 PSI
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
R
all dimensions of actual model for installation and measuring purposes.
ATTENTION! Measurements in inches are rounded to the nearest 1/8".
Or Email: help@woodbridgebath.com
www.woodbridgebath.com
FREESTANDING FAUCET
PREPARATION FOR INSTALLATION
20200724 REV. 2
