Page 1

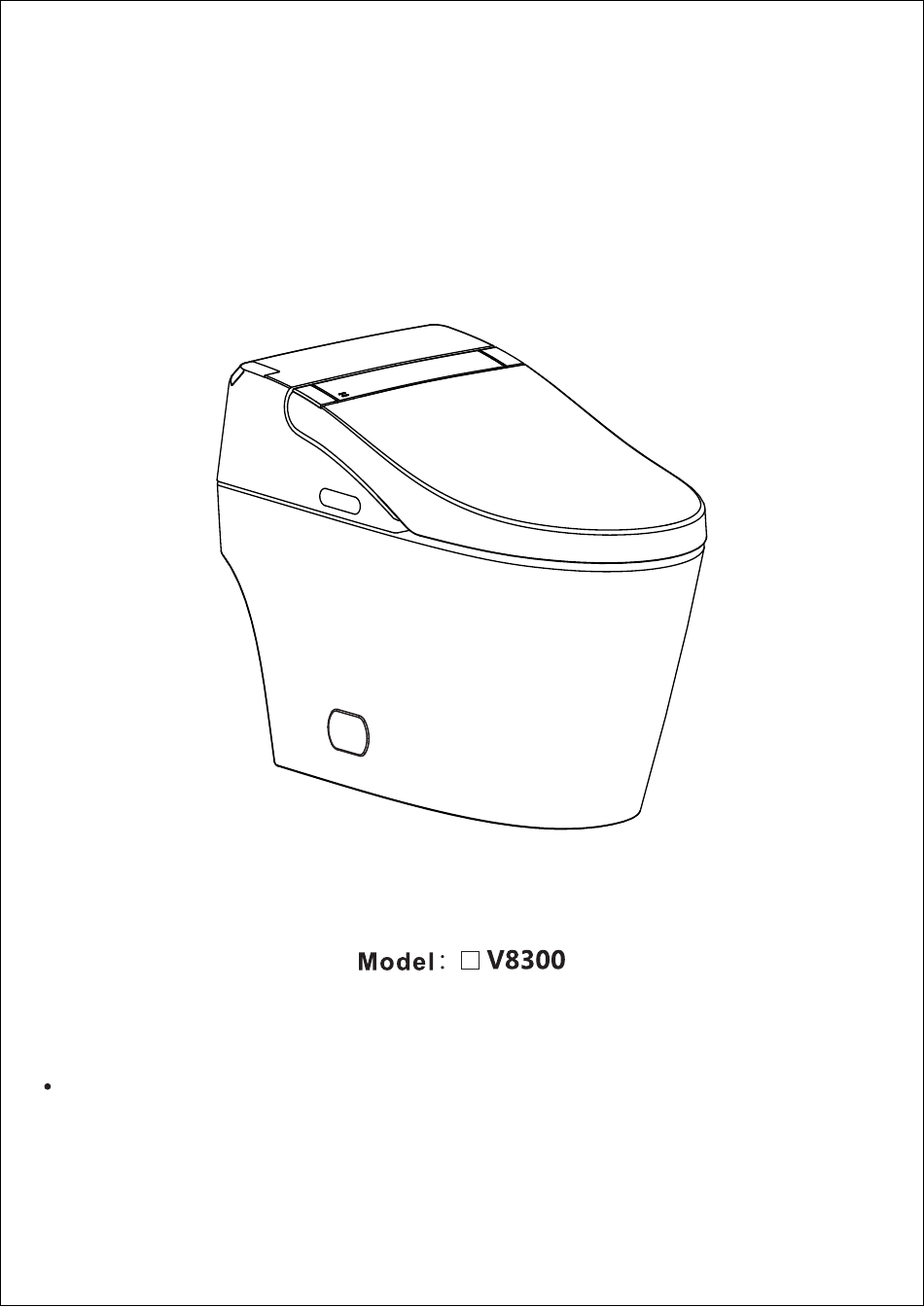

ELECTRONIC TOILET SEAT Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference.
Content Important Safeguards Technical specification List of materials Technical drawings Parts identification Installation of ceramic toilet Previous preparation Daily maintenance 1.Main unit care and maintenace 2.Spray nozzle maintenance and care Emergency troubleshooting 1.Electricity and water supply cut-off 2.Failure of remote control 3.When the product is left unused for long time Function keys description Troubleshooting Guide...
IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1.The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Page 4
IMPORTANT SAFETY INSTRUCTIONS CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc. 2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place where is not easily got wet.
Technical Specification Rating pressure 110V-120V,50/60Hz Rating power 1200W-1400W Main Unit Water pressure Minimum water pressure 0.07MPa (20L/min. flow). range Maximum water pressure 0.8MPa (Hydrostatic pressure) Electrical wire length is about 1.8m Flush volume 1.6/1.1Gpf(6.0/4.1Lpf) Flushing mode Siphonic jet Toilet Hole distance 305mm Outlet outside 88mm...
Page 6
Surface 6 different level adjustment temperature Heating power Open and close Quiet soft-closing device,Auto open and close device Heated seat Heated burning The seat temperature will automatically lower to level protection 1 in 10 minutes after using Seat sensor, Temperature sensor, Bimetallic thermostat, Safety device Temperature fuse Night light...
List of materials AUTO AUTO AUTO REAR FRONT MASSAGE PRESSURE POSITION STOP WATER SEAT ENERGY NOZZLE SAVER CLEANING FLUSH Main Unit Remote controller components ELECTRONIC TOILET SEAT Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference.
Parts identification Bumper Left side Power indicator Energy saving indicator Human body sensing window Human body Remote sensing window sensing window Rear cleaning button Seat Drying button Power button Ceramic toilet Flush button Front cleaning button Water discharging Nozzle baffle Drying baffle Half flush button Rear...
Installation of ceramic toilet 1. Water supply angle valve and bolt 2.Installation of sealing flange and toilet installation Put the sealing flange into the toilet Draw drain outlet centerline on the floor, drain. Install angle valve at proper position on Install the toilet on the holder and insert wall according to dimension of toilet.
Page 11
3.Fixing bolt, installation completed 4.Installation of hose Connect water inlet and angle valve by new hose. Water inlet Install the retainer washer and nut. New hose Install the decorative cover into the holes on both sides of the toilet. Angle valve...
Previous preparateion 1. Turn on the angle valve Check thread connection,make sure no leakage is found. Angle valve 2.Switch the power supply Insert electric leakage protection plug into power socket. Indicator light Electric leakage test button Protection switch NOTE: If it’s an electric leakage protection plug, press protection switch, indicator light is on which means there is electricity.
Daily maintenance Spray nozzle maintenance and care Main unit care and maintenace 1.Shut off power supply at maintenance. 1.Nozzle self-cleaning Press “nozzle cleaning” button and nozzle will move forward and self-clean. 2.Spray nozzle disassemble 2.Turn the seat upward open, When the wand moves forward,the nozzle press down the button located can be disassembled to clean.
Emergency Troubleshooting Electricity and water supply cut-off 1. Power failure Manually press button of full/half flush to perform the toilet flushing. Operation panel 2.Water failure Put around 8L water into a barrel and flush the bowl of ceramic. Note:Avoid water spilling from bowl. Barrel Newspaper...
When the product is left unused for Failure of remote control long time 1.Operate the panels on ebidet seat to perform. Especially in winter season,the water inside the tank should be discharged to avoid freezing. To discharge water 1.Turn off the water supply angle valve 2.Cut off the electricity 3.Discharge water Slightly press inward...
The illustration of main unit keys 1. Long press "power" button to enter standby mode; and then quick press "power" button to restore functional mode. Power 2. When people sit, press "power" button to stop the function of rear, front cleaning or drying. When no one sits, press "power" button to switch between function mode and power save mode.
Troubleshooting Guide Problem Cause Solution Water supply hose buckling Solve the buckling causes block No flushing Turn on the fill valve Fill valve is off Connect water supply and Water supply is cut off wait for the water Water supply hose buckling Solve the buckling causes partial block Fill valve is not fully...
Page 19
The picture of product may not entirely consistent with actual appearance and color because of products improvement, please in kind prevail. ASVFB04430005A-1.0...
